Introduction
You’re specifying a butterfly valve for a critical project, and choosing the wrong body material—cast iron or ductile iron—feels like a gamble. A mistake could lead to premature failure, costly system downtime, and project delays that put your reputation on the line. It’s not just about a single failed valve; it’s about emergency call-outs, budget overruns from unexpected repairs, and the stress of explaining to stakeholders why a system is offline. A cracked valve body can cause catastrophic leaks, damaging equipment and creating safety hazards.
This guide removes the guesswork. We’ll give you a clear, engineering-based framework to confidently choose between a cast iron and ductile iron butterfly valve body. You will be able to select the most reliable and cost-effective option for your specific application, ensuring system integrity and peace of mind.
How Material Affects Your Butterfly Valve Performance
The body of your butterfly valve is its foundational component, dictating its ability to withstand operational stresses. Your choice of material directly influences everything from pressure handling to overall lifespan. This decision has a significant impact on both immediate project costs and long-term reliability.
Why does body material matter so much?
You might be wondering, does it really make a difference? The answer is a resounding yes, as the body material is the primary pressure boundary of the valve. The material’s properties directly determine its ability to perform core functions reliably under system pressure and external stress.
- Pressure Containment: The body must safely contain the system’s maximum operating pressure without leaking or deforming.
- Structural Integrity: It must resist cracking from system vibrations, physical impacts, or pressure surges like water hammer.
- Connection Stability: The flange integrity depends on the body material’s strength, ensuring a secure, leak-free connection to your piping.
How does it impact total cost of ownership?
Thinking only about the initial purchase price is a common but costly mistake; you must consider the total cost of ownership (TCO) over the valve’s entire service life. A cheaper initial option can lead to higher expenses down the road. But what does that mean in practice?
- Initial Cost: Cast iron typically has a lower upfront material and manufacturing cost.
- Maintenance & Lifespan: Ductile iron’s superior durability often leads to a longer service life and fewer maintenance interventions, especially in demanding applications.
- Replacement Costs: Factoring in the labor and downtime costs of replacing a failed valve makes ductile iron a more economical choice in high-risk environments.
Key Takeaway: While cast iron offers a lower initial price, ductile iron provides better long-term value in applications where durability is critical, ultimately reducing the total cost of ownership by preventing costly failures.
| Cost Factor | Cast Iron Butterfly Valve | Ductile Iron Butterfly Valve |
|---|---|---|
| Initial Purchase Price | Lower | Higher (15-30% more) |
| Expected Service Life | Good (in stable conditions) | Excellent (especially under stress) |
| Risk of Failure Cost | Higher (brittle nature) | Lower (ductile nature) |
| Total Cost of Ownership (TCO) | Low (for low-risk apps) | Low (for high-risk apps) |

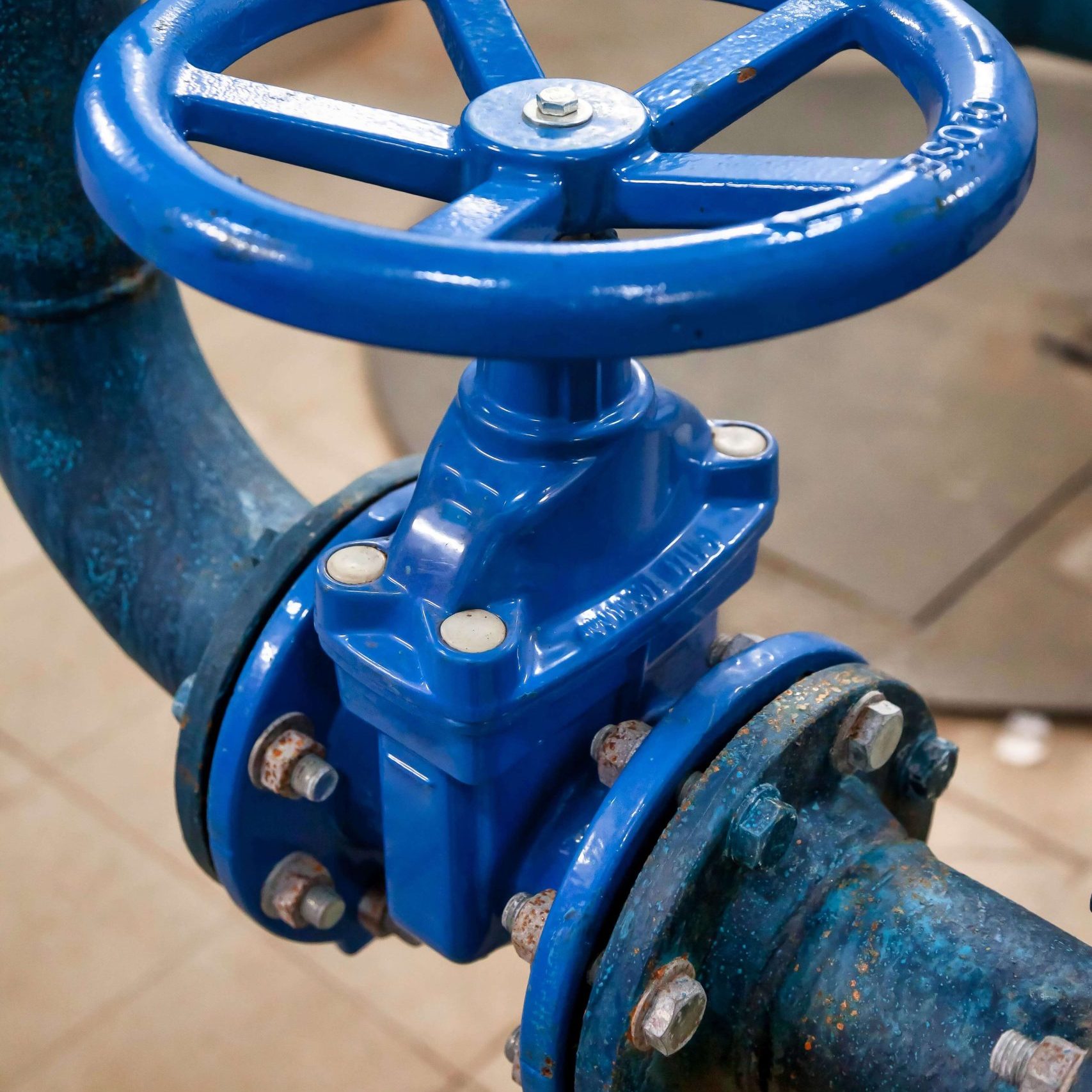

The Cast Iron Butterfly Valve Body: A Cost-Saver?
Cast iron has been a mainstay in industrial applications for centuries, valued for its manufacturing simplicity and cost-effectiveness. For many standard fluid control systems, it remains an excellent and economical choice. Understanding its specific strengths and weaknesses is key to deploying it successfully.
What are cast iron’s key benefits?
Think about it: for many standard, stable applications, the advanced properties of more expensive materials are simply overkill. Cast iron delivers reliable performance where it counts, providing an unbeatable combination of cost and function for the right job. It offers several distinct advantages in controlled environments.
- Low Material Cost: It is one of the most affordable materials for valve bodies, making it ideal for large projects or budget-conscious applications.
- Excellent Vibration Damping: Its graphite flake structure gives it superior ability to absorb mechanical vibration, which can reduce noise in piping systems.
- Good Compressive Strength: It easily handles static pressure loads in low-to-medium pressure systems.
Where should you use a cast iron butterfly valve?
Here’s the deal: cast iron is perfect for stable, low-pressure applications where the risk of system shock or physical impact is minimal. You should specify a cast iron body for services that are well-controlled and predictable. It is the go-to material for many general-purpose fluid handling needs.
- HVAC Systems: Ideal for heating, ventilation, and air conditioning water lines.
- Municipal Water Distribution: Suitable for low-pressure water mains and treatment plant processes.
- Low-Pressure Industrial Lines: Effective for general water service, air, and non-corrosive process fluids.
Are there hidden risks with cast iron?
The primary drawback of cast iron is its inherent brittleness, which stems from its graphite flake microstructure. This makes it vulnerable to sudden, catastrophic failure when subjected to unexpected stress. You must consider these risks before specifying it for anything other than a stable system.
- Water Hammer: A sudden pressure surge can crack a cast iron body.
- Physical Impact: Accidental impact from equipment or during maintenance can cause it to fracture.
- Thermal Shock: Rapid temperature changes can induce stress and lead to cracking.
Key Takeaway: A cast iron butterfly valve is a highly cost-effective choice for stable, low-pressure, and low-impact applications, but its brittle nature makes it a significant risk in systems prone to pressure surges or mechanical shock.
| Performance Metric | Cast Iron Rating | Comments |
|---|---|---|
| Cost-Effectiveness | Excellent | Unbeatable initial price for standard service. |
| Pressure Resistance | Good | Suitable for PN10/PN16 applications. |
| Impact Resistance | Poor | Brittle material; prone to cracking on impact. |
| Vibration Damping | Excellent | Naturally absorbs system vibrations well. |

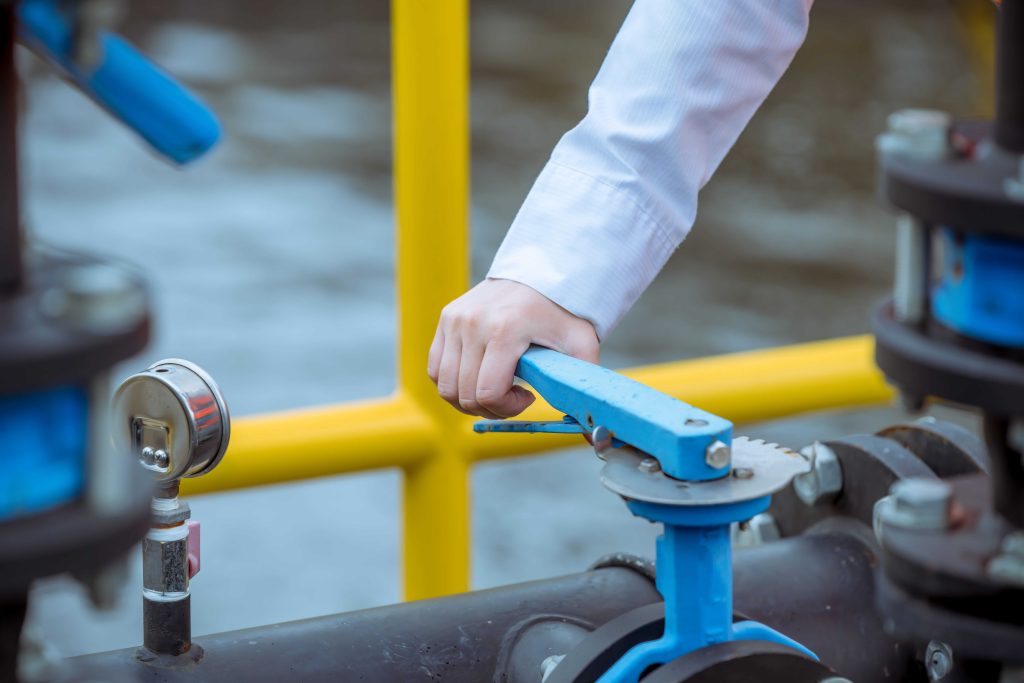

The Ductile Iron Butterfly Valve: A Durable Champ?
Ductile iron is a modern advancement over traditional cast iron, engineered specifically to overcome its brittleness. By altering the graphite structure at a microscopic level, it gains remarkable strength and ductility. This makes it the preferred material for applications where reliability is non-negotiable.
What makes ductile iron superior?
The secret lies in a small addition of magnesium to the molten iron before casting. Here’s the deal: this treatment forces the graphite to form into spheres (or nodules) instead of flakes. This simple change dramatically enhances its mechanical properties, allowing the material to bend and deform under stress rather than shattering.
- Tensile Strength: Ductile iron has more than double the tensile strength of cast iron, allowing it to withstand higher pressures.
- Elongation: It can elongate over 10% before fracturing, whereas cast iron has almost zero elongation. This is the definition of ductility.
- Impact Resistance: Its ability to absorb energy makes it far more resistant to failure from water hammer and physical impact.
When is a ductile iron butterfly valve a must-have?
What does this mean for you? If your system faces pressure surges, vibration, or is in a location where failure would be catastrophic, ductile iron is not just a preference—it’s a requirement. You should mandate its use in any application where system integrity and safety are the top priorities.
- High-Pressure Lines: Indispensable for systems operating at PN16, PN25, or higher.
- Water Hammer Prone Systems: Essential for pump discharge, fast-closing valves, and long pipelines.
- Underground/Buried Service: Provides security against ground settlement and external loads.
- Critical Infrastructure: A must for fire protection systems, water transmission mains, and power plants.
Is the higher initial cost justified?
The 15-30% price premium for a ductile iron valve can seem significant, but you should frame it as an investment in insurance. The slightly higher upfront cost is negligible compared to the astronomical expense of downtime, emergency repairs, and potential collateral damage from a failed valve. Think about it: the ROI is realized by preventing just one catastrophic failure.
- Risk Mitigation: The cost is justified by the reduction in risk of system failure.
- Lower TCO: In demanding applications, the longer lifespan and reduced maintenance lead to a lower total cost of ownership.
- Peace of Mind: Knowing your critical systems are protected by a durable, reliable material is invaluable.
Key Takeaway: The superior strength and ductility of a ductile iron butterfly valve make it the essential choice for high-pressure, high-impact, and critical applications, justifying its higher initial cost by providing long-term reliability and preventing catastrophic failure.
| Performance Metric | Ductile Iron Rating | Comments |
|---|---|---|
| Cost-Effectiveness | Good | Higher initial cost, but excellent long-term value. |
| Pressure Resistance | Excellent | The standard for PN16, PN25, and above. |
| Impact Resistance | Excellent | Ductile nature allows it to absorb shock and stress. |
| Safety & Reliability | Excellent | The default choice for critical applications. |
Pressure & Temp Limits for a Butterfly Valve Body
Beyond mechanical strength, you must match your valve’s body material to the system’s operating pressure and temperature. Both cast iron and ductile iron have distinct performance envelopes. Exceeding these limits can compromise safety and lead to premature failure.
How do pressure ratings (PN) compare?
Ductile iron’s superior tensile strength allows it to achieve higher pressure ratings (PN) than cast iron for the same valve design and dimensions. As a result, you’ll find ductile iron bodies are standard for higher-pressure classes. What does this mean for you?
- Cast Iron: Typically rated for PN10 (10 bar) or PN16 (16 bar) at most.
- Ductile Iron: Commonly available in PN16 and PN25 (25 bar) ratings, and can be engineered for even higher pressures.
- Valve Size Impact: As valve diameter increases, the body must withstand greater force, making ductile iron the necessary choice for large-diameter, high-pressure valves.
What about the butterfly valve’s temperature limits?
Temperature affects material properties, especially at the lower end of the scale. But here’s a crucial point: while both materials perform well at elevated temperatures typical for water service, their behavior diverges significantly in the cold. This is a critical consideration for valves installed in cold climates or cryogenic applications.
- Upper Limit: Both materials are generally suitable for water and steam up to approximately 120°C (250°F), with the ultimate limit often set by the valve’s seat material (e.g., EPDM or NBR).
- Lower Limit: Cast iron becomes increasingly brittle below freezing and is not recommended for service below -15°C (5°F).
- Ductile Iron’s Advantage: Ductile iron retains its ductility at much lower temperatures, making it safe for use down to -30°C (-22°F) or lower, depending on the specific grade.
Key Takeaway: Ductile iron is the clear choice for higher-pressure systems (PN16 and above) and applications involving sub-zero temperatures, while cast iron is perfectly suitable for standard, moderate-pressure systems operating above freezing.
| Parameter | Cast Iron Body | Ductile Iron Body |
|---|---|---|
| Typical Pressure Rating | PN10 / PN16 | PN16 / PN25 |
| Max Pressure Capability | Moderate | High |
| Upper Temperature Limit | ~120°C (250°F) | ~120°C (250°F) |
| Low Temperature Limit | -15°C (5°F) | -30°C (-22°F) |
Which Butterfly Valve Body Resists Corrosion?
For any valve, corrosion is a primary enemy that can compromise structural integrity and lead to failure. Both cast iron and ductile iron are ferrous materials, meaning they are susceptible to rust in the presence of water and oxygen. However, their response to corrosion and the methods to protect them differ.
How do they handle water and steam?
In standard water and low-pressure steam applications, both materials exhibit similar general corrosion behavior. Unprotected, they will form a surface layer of iron oxide (rust). So what’s the bottom line? Protective coatings are essential to ensure a long service life for either material in wet service.
- Uncoated Performance: Both will corrode at a predictable rate in freshwater.
- Protective Coatings: High-performance coatings are the key to longevity.
- Recommended Coating: Fusion-Bonded Epoxy (FBE) is the industry standard, creating a durable, holiday-free barrier between the iron body and the fluid medium.
What about chemical exposure and seawater?
When it comes to more aggressive media, the base material’s limitations become more apparent. Think about it: for highly corrosive chemicals or seawater, neither material is ideal on its own. However, ductile iron’s structural superiority provides an added layer of safety.
- Aggressive Media: For strong chemicals, you should consider valves with PFA/PTFE linings or upgrade the body material to stainless steel or a specialty alloy.
- Seawater Service: The high chloride content in seawater is highly corrosive to iron. While heavy epoxy coatings can help, aluminum bronze or duplex stainless steel are often better long-term choices.
- Ductile Iron’s Edge: If localized corrosion (pitting) does occur, ductile iron’s strength makes it less likely to suffer a catastrophic fracture compared to brittle cast iron.
Key Takeaway: For general water service, a high-quality FBE coating is essential for both cast and ductile iron. In corrosive environments, while neither is ideal, ductile iron offers a safer failure mode if the protective coating is breached.
| Medium | Bare Cast Iron | Coated Cast Iron | Bare Ductile Iron | Coated Ductile Iron |
|---|---|---|---|---|
| Freshwater | Fair | Excellent | Fair | Excellent |
| Seawater | Poor | Good | Poor | Good |
| Mild Chemicals | Poor | Fair | Poor | Fair |
| Aggressive Chemicals | Not Recommended | Not Recommended | Not Recommended | Not Recommended |
Choosing the Right Butterfly Valve Body for Your Job
You’ve reviewed the technical differences in strength, temperature limits, and corrosion resistance. Now it’s time to apply that knowledge to your specific project. Making the final decision is a balancing act between performance requirements, risk tolerance, and budget.
How do you assess your project’s real needs?
To make the right choice, you must systematically evaluate the conditions your valve will face. Go through a checklist of key application parameters to build a complete operational profile. Here’s the deal: answering these questions will point you directly to the correct material.
- Medium: What fluid is flowing through the valve (water, air, chemical, slurry)?
- Pressure: What is the maximum operating pressure and is there a risk of water hammer?
- Temperature: What is the minimum and maximum operating temperature?
- External Risks: Is there a risk of physical impact, heavy vibration, or ground movement?
- Consequence of Failure: What would happen if the valve failed? Is it a critical, must-not-fail application?
- Budget: What is the project’s budget for these components?
When to choose cast vs. a ductile butterfly valve?
Here’s a simple rule of thumb: use cast iron for “utility” applications and ductile iron for “heavy-duty” or “critical” applications. If you are in any doubt, specifying the more durable ductile iron is always the safer bet. This side-by-side decision guide summarizes the choice.
- Choose Cast Iron When:
- The application is low-pressure (PN10/PN16).
- The system is stable, with no risk of water hammer or shock.
- The valve is installed above ground in a protected environment.
- Budget is the primary driver and the application risk is low.
- Choose Ductile Iron When:
- The pressure is high (PN16 or above).
- There is any risk of water hammer, vibration, or physical impact.
- The valve is buried underground or in an exposed location.
- Failure is not an option and reliability is the top priority.
How can a reliable supplier help you decide?
Navigating these choices can be complex, and a good supplier acts as more than just a vendor—they are your technical partner. An experienced manufacturer can help you validate your choice and provide the necessary documentation to support your decision. But what does that mean for you?
- Technical Consultation: A knowledgeable supplier can review your application data and provide an expert recommendation.
- Documentation: They should provide material test reports (MTR) and compliance certificates to guarantee you are getting the material you specified.
- Custom Solutions: For unique challenges, an OEM/ODM partner can engineer a solution tailored to your exact needs.
Key Takeaway: The final decision should be driven by a clear assessment of application risk versus budget. For low-risk, stable systems, cast iron is sufficient; for all other critical or demanding applications, ductile iron is the necessary and responsible choice.
| Application Risk | Standard Budget | Premium Budget (Reliability Focused) |
|---|---|---|
| Low (e.g., HVAC) | Cast Iron (Recommended) | Cast Iron |
| Medium (e.g., Water Main) | Cast Iron (Use with caution) | Ductile Iron (Recommended) |
| High (e.g., Pump Station) | Ductile Iron | Ductile Iron (Mandatory) |
Conclusion
You now have the knowledge to move beyond just price and specify a butterfly valve body material that matches your system’s operational demands, mitigating risks of failure and ensuring long-term performance. By understanding the fundamental trade-offs between cast iron’s cost-effectiveness and ductile iron’s durability, you can make an informed, defensible engineering decision for every project.
At our company, we manufacture high-quality butterfly valves in both cast iron and ductile iron, compliant with international standards. Our engineering team is ready to provide expert selection advice and technical documentation to ensure you get the perfect valve for your project—fast. We are committed to being the trusted fluid control partner that powers your project’s success with reliable, certified, and cost-effective valve solutions.
FAQ Section
1. Can I use a cast iron butterfly valve in a high-vibration system?
No, it is strongly discouraged. Cast iron is brittle and can crack under constant vibration or mechanical shock. For systems near pumps, compressors, or in high-traffic areas, a ductile iron butterfly valve is the safer choice due to its ability to absorb energy and resist fracture.
2. How do I know if my supplier is providing real ductile iron?
Always demand a Material Test Report (MTR). A reputable manufacturer will provide full material certification with every shipment. The MTR verifies the chemical composition and mechanical properties (like tensile strength and elongation), confirming the material meets international standards for ductile iron.
3. Is a ductile iron butterfly valve always more expensive?
Yes, the initial purchase price is typically 15-30% higher. However, this premium is an investment in risk reduction. For critical applications, this cost is easily justified by preventing the enormous costs associated with system failure, downtime, and emergency repairs, thus lowering your total cost of ownership.
4. For standard municipal water lines, is ductile iron overkill?
Often, yes. In stable, well-controlled water distribution systems with moderate pressure and no significant risk of water hammer, a high-quality epoxy-coated cast iron butterfly valve provides excellent performance and is the more cost-effective solution.
5. Can you provide both cast and ductile iron butterfly valves with the same flange drilling?
Absolutely. We manufacture all our valves to universal flange standards, including ANSI, DIN, and JIS. This ensures that whether you choose cast iron or ductile iron, the valve will integrate seamlessly into your existing or planned piping system without modification.
