Managing fluid flow in your system with manual valves is often inefficient and slow, leading to process delays and high labor costs. These outdated methods can cause production bottlenecks, inconsistent product quality, and delayed responses to system changes, ultimately impacting your bottom line. The electric butterfly valve is the modern solution, offering precise, automated, and reliable flow control that boosts efficiency and reduces operational headaches.

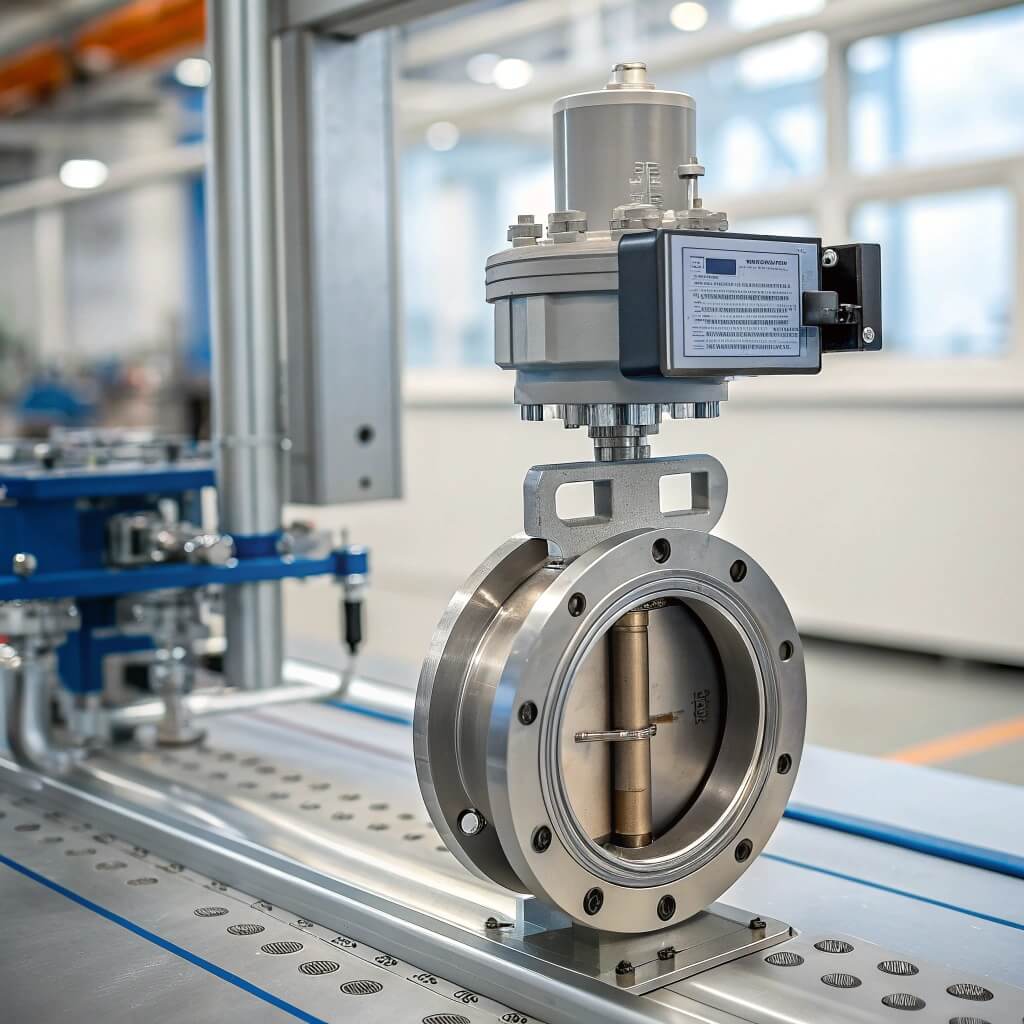

1. Core Parts of an Electric Butterfly Valve
Understanding the fundamental components of an electric butterfly valve is the first step toward mastering its operation and maintenance. These parts work in concert to provide automated and reliable flow control in your pipelines. From the main body to the actuator, each piece has a specific role.
What is the Valve Body and Disc?
The valve body is the main housing that connects to your piping, while the disc is the internal component that rotates to start, stop, or regulate flow. The material of these parts is crucial for compatibility with the process fluid. Common materials include:
- Ductile Iron: Cost-effective and strong, ideal for water and wastewater applications.
- Stainless Steel: Offers excellent corrosion resistance for chemical processing and food/beverage lines.
- PVC: A lightweight and chemical-resistant option for lower-pressure applications.
The Role of the Electric Actuator
The electric actuator is the brain and muscle of the valve, converting electrical energy into the mechanical torque needed to rotate the disc. It receives a control signal and automatically drives the valve to the desired open or closed position, removing the need for manual intervention. But how does it get its signal? The actuator is wired to a control system, like a PLC or a simple switch, allowing for remote and automated operation.
Seat, Stem, and Sealing Explained
The stem is a shaft that connects the actuator on the outside to the disc on the inside, transferring the rotational force. The seat is a soft or metal ring lining the valve’s inner diameter, which the disc presses against to create a bubble-tight seal when the valve is closed. This seal is critical for preventing leaks and ensuring process integrity. Key Takeaway: Understanding these core components helps you diagnose operational issues and select the correct materials for your specific fluid and temperature, preventing premature wear and costly system failures.
| Component | Common Materials | Typical Applications |
|---|---|---|
| Valve Body | Ductile Iron, Stainless Steel, PVC, Carbon Steel | Water, Chemicals, Food & Beverage, HVAC |
| Disc | Stainless Steel, EPDM Coated, PTFE Coated | General Service, Corrosive Media |
| Seat | EPDM, Buna-N, PTFE, Viton, Metal | Water, Oils, Chemicals, High Temperature |
This breakdown shows that material selection is a critical decision driven by the chemical compatibility and temperature demands of your specific application.
2. The Electric Butterfly Valve Working Principle
An electric butterfly valve operates through a simple yet effective electromechanical sequence. This process allows for precise and repeatable control over fluid flow from a remote location. It all begins with a simple electrical signal that initiates a chain of mechanical events.
How Does the Actuator Drive the Valve?
The operation begins when the electric actuator receives an electrical signal from a control device. This signal energizes an internal motor, which drives a series of gears within a gearbox to multiply the torque. The process follows a clear sequence:
- Signal Received from PLC or Switch
- Motor Activates and Spins
- Gearbox Engages to Increase Torque
- Stem Rotates 90 Degrees
- Disc Opens or Closes the Flow Path
On/Off vs. Modulating Control
Not all automation needs are the same; some applications require simple open/close functions, while others need precise flow regulation. An on/off (or quarter-turn) actuator fully opens or fully closes the valve, making it ideal for isolation tasks. Here’s where it gets interesting: a modulating actuator uses a positioner to move the disc to any angle between 0 and 90 degrees, allowing you to finely tune the flow rate.
Understanding Failsafe Mechanisms
Failsafe mechanisms are essential for protecting your system in the event of a power outage. A fail-open valve will automatically open during power loss, while a fail-close valve will automatically shut. This is typically achieved with a spring-return actuator that uses stored spring energy to move the valve to its designated safe position without electrical power. Key Takeaway: Choosing between on/off and modulating control directly impacts your system’s precision, while failsafe options are crucial for protecting your equipment, processes, and personnel in an emergency.
| Actuator Type | Primary Function | Typical Use Case | Complexity |
|---|---|---|---|
| On/Off (Quarter-Turn) | Fully opens or closes the valve. | Isolation lines, basic process start/stop. | Low |
| Modulating | Positions the disc at any angle. | Flow rate control, temperature regulation. | Medium |
| Failsafe (Spring-Return) | Moves to a safe position on power loss. | Emergency shutdown, critical process lines. | High |
The choice between these actuator types fundamentally depends on whether your goal is simple line isolation or dynamic process control.
3. Types of Electric Actuated Butterfly Valve
Beyond the actuator, the design of the butterfly valve itself plays a critical role in its performance and application suitability. Different types are engineered for specific installation requirements, pressure conditions, and media types. Knowing these differences helps you match the right valve to your pipeline.
Wafer vs. Lug-Style Butterfly Valve
These terms refer to how the valve is mounted between pipe flanges. A wafer-style valve is sandwiched between two flanges, held in place by long bolts that run from one flange to the other. In contrast, a lug-style valve has threaded inserts (lugs) that allow it to be bolted directly to each flange independently.
- Wafer: More compact and generally lower in cost.
- Lug: Can be used for “dead-end service,” meaning the downstream piping can be removed while the valve stays in place and holds pressure.
What are High-Performance Valves?
Standard valves are “concentric,” with the stem centered in the disc and the disc centered in the pipe. So, what makes them ‘high-performance’? High-performance valves use a double-offset or triple-offset design, where the stem is offset from the centerline of both the disc and the valve bore, creating a cam-like action that reduces seat friction and wear, allowing for higher pressure and temperature ratings.
Lined vs. Unlined Butterfly Valve
For applications involving highly corrosive or abrasive fluids, a lined butterfly valve is often the best choice. These valves feature a liner, typically made of PTFE or rubber, that is bonded to the interior of the valve body, isolating it from the process media. This design provides superior chemical resistance and extends the valve’s service life in aggressive environments. Key Takeaway: The valve type (Wafer/Lug) dictates how it fits in your pipeline, while the design (High-Performance/Lined) must match your process media and conditions to ensure a reliable, long-lasting seal.
| Valve Design | Key Feature | Pressure/Temp Rating | Typical Application |
|---|---|---|---|
| Concentric | Centered stem and disc, full seat contact. | Low | General Service, Water, Utilities |
| Double-Offset | Stem is offset from disc and body centerlines. | Medium-High | High Pressure, Mild Chemicals |
| Triple-Offset | Three offsets create metal-to-metal sealing. | Very High | High Temperature, Steam, Critical Service |
The progression from concentric to triple-offset designs clearly illustrates an increasing capability to handle more severe service conditions.
4. Key Uses for an Electric Butterfly Valve
Electric butterfly valves are prized for their versatility, reliability, and cost-effectiveness across numerous industries. Their ability to provide automated on/off and modulating control makes them a workhorse in both utility and process applications. They are essential components in systems that require efficient and automated fluid management.
Water and Wastewater Treatment
These valves are a staple in municipal and industrial water systems due to their simple design and robust performance. They are commonly used for flow control in large-diameter pipes where other valve types would be prohibitively expensive. Key applications include:
- Isolation at pump and lift stations.
- Flow control for filtration and backwash systems.
- Automated lines for chemical dosing and treatment.
HVAC and Building Automation
In modern buildings, efficiency is key, and electric butterfly valves play a crucial role in optimizing energy use. They integrate seamlessly with a Building Management System (BMS) to control the flow of hot and chilled water in heating, ventilation, and air conditioning (HVAC) loops. But that’s not all; this precise control helps maintain comfortable temperatures while minimizing energy consumption.
When to use in industrial processing?
Electric butterfly valves are indispensable in a wide range of general industrial processes. They are ideal for applications like utility lines (e.g., cooling water, compressed air) and bulk material handling where automated, but not necessarily severe-service, control is required. You’ll find them in food & beverage, chemical, and pharmaceutical plants for managing non-critical process flows efficiently. Key Takeaway: The versatility and cost-effectiveness of electric butterfly valves make them a go-to choice across diverse industries—from public utilities to advanced manufacturing—wherever automated flow control is essential.
| Industry | Typical Application | Recommended Valve Material | Control Type |
|---|---|---|---|
| Water Treatment | Filter Isolation | Ductile Iron Body, EPDM Seat | On/Off |
| HVAC | Chiller Loop Control | Ductile Iron Body, EPDM Seat | Modulating |
| Food & Beverage | Utility Water Lines | Stainless Steel Body, Buna-N Seat | On/Off |
| Chemical | Cooling Water | Stainless Steel Body, PTFE Seat | Modulating |
This mapping reveals that while the core valve is versatile, specific industry needs drive crucial customizations in materials and control methods.
5. How to Install Your Butterfly Valve
Proper installation is the foundation of a valve’s performance and service life, yet it’s often overlooked. A few simple steps can prevent common issues like leaks, premature wear, and actuator failure. Following best practices ensures your electric butterfly valve operates as designed from day one.
Pre-Installation Checks
Before you even think about placing the valve in the line, a few checks are mandatory to prevent immediate problems. These steps ensure the valve and pipe are ready for a secure, leak-free connection. Always perform these checks:
- Verify pipe flanges are aligned and parallel to avoid stressing the valve body.
- Clean the flange faces and the inside of the pipe to remove any dirt or scale.
- Inspect the valve seat and disc for any damage or debris from shipping.
- Cycle the valve once from fully open to fully closed to confirm smooth operation.
What is the Correct Mounting Position?
The recommended mounting orientation for a butterfly valve is with the stem in the horizontal position. This orientation prevents process sediment from accumulating in the lower stem bearing area, which can cause increased torque and premature wear. You might be surprised at the difference this makes over time, as it also promotes more even wear on the stem bushings, extending the valve’s life.
Wiring and Commissioning the Actuator
Once the valve is securely bolted, you must connect the actuator to its power source and control system. Carefully follow the manufacturer’s wiring diagram to connect power and control signal wires to the correct terminals inside the actuator’s housing. After wiring, commission the valve by testing its open, close, and (if applicable) modulating functions to ensure it responds correctly to control signals. Key Takeaway: Proper installation is non-negotiable for valve performance and longevity. Following these simple steps prevents leaks, actuator strain, and premature failure, saving significant time and money on future maintenance.
| Installation Phase | Key Step | Purpose |
|---|---|---|
| 1. Pre-Check | Clean flanges & inspect valve seat. | Prevent seal damage and leaks. |
| 2. Mounting | Position with stem horizontal. | Reduce stem bearing wear. |
| 3. Bolting | Tighten bolts in a star pattern. | Ensure even gasket compression. |
| 4. Wiring | Follow the provided wiring diagram. | Ensure correct electrical operation. |
| 5. Commissioning | Cycle valve and verify position feedback. | Confirm proper function with the control system. |
This checklist demonstrates that successful installation is a systematic process composed of distinct phases, not a single event.
6. Choosing the Right Butterfly Valve for You
Selecting the correct electric butterfly valve is a critical decision that directly impacts the safety, efficiency, and reliability of your process. Making the wrong choice can lead to leaks, control issues, and costly downtime. A systematic approach based on your application’s specific needs is the only way to guarantee success.
Key Selection Criteria
To ensure you choose the right valve, you must first define your operational parameters. Answering these questions will narrow down your options and point you toward the ideal configuration. The most critical factors to consider are:
- Process Media: What fluid is passing through the valve (e.g., water, acid, slurry)?
- Temperature: What are the minimum and maximum process temperatures?
- Pressure: What is the maximum operating pressure the valve will see?
- Pipe Size: What is the nominal diameter of the connecting pipe?
- Control Type: Do you need simple on/off isolation or precise modulating control?
How to Size a Butterfly Valve?
Sizing is more than just matching the valve to your pipe diameter. Here’s a common mistake many people make: they assume a 4-inch valve is always best for a 4-inch pipe. Proper sizing requires calculating the required flow coefficient (Cv), which ensures the valve can provide stable control over your desired flow rate range without causing issues like excessive pressure drop or cavitation (the formation of damaging vapor bubbles).
Certifications and Standards
Certifications are your assurance that a valve meets established safety, quality, and performance benchmarks. Always look for products from manufacturers that adhere to recognized international standards. Key certifications include ISO 9001 for quality management systems, CE marking for conformity in the European Economic Area, and WRAS approval for products safe to use with potable water. Key Takeaway: A systematic selection process based on your application’s specific parameters is the best way to ensure you invest in a valve that will operate efficiently, reliably, and safely throughout its entire service life.
| Application Requirement | Recommended Specification | Why It Matters |
|---|---|---|
| Corrosive Liquid | Lined Valve (e.g., PTFE) | Protects the valve body from chemical attack. |
| High Pressure/Temperature | High-Performance (Double/Triple Offset) | Prevents seat leakage and failure under stress. |
| Potable Water | WRAS or NSF-61 Certified Valve | Ensures materials are safe for human consumption. |
| Precise Flow Control | Modulating Actuator with Equal % Disc | Provides stable and accurate flow regulation. |
This selection matrix underscores that matching the valve’s technical specifications to your operational demands is the most critical step in procurement.
Conclusion
This guide has demystified the electric butterfly valve by breaking down its core components, working principles, various types, and key applications. You are now equipped with the knowledge to select, install, and understand the right valve for your system, moving from manual inefficiency to streamlined automation.
