You’ve identified a worn, stripped, or completely broken handle on a critical ball valve. This seemingly small issue prevents proper operation, leaving a line either stuck open or closed, compromising system control and creating a potential safety hazard. A single non-functional valve can halt production, cause system overflows, or prevent emergency shut-offs, and the longer it remains unfixed, the greater the risk of operational downtime and costly collateral damage. Fortunately, replacing a ball valve handle is a straightforward and rapid maintenance task that you can perform with the right tools and guidance, restoring full functionality to your system with minimal disruption.
Assessing Your Damaged Ball Valve for Repair
Before you touch any tools, a thorough assessment is critical. This initial inspection helps you confirm the problem is limited to the handle and understand the specific valve type you’re working with. Properly identifying the issue prevents unnecessary work and ensures you procure the correct replacement parts from the start.
What are the signs of a faulty handle?
You can identify a faulty handle through several clear indicators. These include visible cracks, a handle that spins freely without turning the valve stem, or a stripped connection where the screw no longer holds it securely. Here’s the key: look for both physical damage and a disconnect between the handle’s movement and the valve’s operation.
- Visible cracks or breaks in the handle material.
- Handle spins without engaging the valve stem.
- The retaining screw is stripped and will not tighten.
Identifying your ball valve type and size
You must correctly identify the valve’s specifications to ensure a compatible replacement. Check the valve body for markings that indicate its size, pressure rating, and material. Look closely: these details are crucial for sourcing the right part.
- Valve Body Markings: Look for size (e.g., DN50, 2″), pressure rating (e.g., PN16), and material type.
- Connection Type: Note if it is threaded, flanged, or welded.
- Stem Shape: Identify if the stem post is square or has a “double-D” shape.
When to replace the handle vs. the entire valve
Deciding between replacing just the handle or the entire valve depends on the valve’s overall condition. If the valve body is cracked, leaking from the stem seals, or difficult to turn even with a wrench, the whole unit must be replaced. A handle-only replacement is only suitable when the valve body itself remains in perfect working order. Key Takeaway: This initial diagnosis saves significant time and resources by ensuring you pursue the correct repair strategy from the outset.
| Assessment Step | Objective | Success Indicator |
|---|---|---|
| Inspect Handle | Confirm the source of the failure. | The problem is isolated to the handle itself. |
| Identify Valve | Gather specs for the replacement part. | You have the size, type, and stem details. |
| Evaluate Valve Body | Decide if a full replacement is needed. | The valve body is free of leaks and corrosion. |
Tools for a Successful Ball Valve Handle Swap
Gathering the correct tools and a compatible replacement handle is the next crucial step. Having everything prepared and within reach streamlines the replacement process, minimizes downtime, and enhances safety. This preparation phase is non-negotiable for a professional and efficient repair.
What essential tools will you need?
For a standard ball valve handle replacement, you will need a small set of basic tools. The specific screwdriver or wrench depends on the type of fastener used on the existing handle. What does this mean for you? Having both options ready avoids frustrating delays mid-job.
- A flat-head and a Phillips-head screwdriver
- An adjustable wrench or a socket set
- Penetrating oil for rusted screws
- A clean cloth or rag
How to select the correct replacement handle?
The new handle must match the valve’s stem connection perfectly. Measure the dimensions of the square or “double-D” stem post and ensure the new handle’s mounting hole corresponds to it. Pay attention to this: also confirm the length of the handle provides enough leverage for easy operation without obstructing nearby equipment.
- Match the stem shape (square, double-D).
- Match the stem dimensions precisely.
- Ensure the handle length is appropriate for the location.
Gathering your personal protective equipment (PPE)
Safety should always be your top priority during any maintenance task. Before starting work, ensure you have the appropriate PPE to protect against unexpected spray or sharp edges. Don’t skip this: this is a simple step that mitigates significant personal risk. Key Takeaway: Assembling your tools, the right part, and your PPE beforehand transforms the task from a potential struggle into a smooth, predictable procedure.
| Item Category | Specific Items | Purpose |
|---|---|---|
| Hand Tools | Screwdrivers, wrench, penetrating oil | To remove the old handle and fit the new one. |
| Replacement Part | Compatible ball valve handle | To restore valve functionality. |
| Safety Gear | Safety glasses, gloves | To protect against injury. |
How to Remove the Old Ball Valve Handle
With your system safely isolated and tools at the ready, you can now proceed with removing the old, faulty handle. This process is typically straightforward but can present challenges if the components are corroded or seized. Working methodically will ensure you don’t damage the valve stem in the process.
Step 1: Applying penetrating oil to the screw
If the retaining screw shows any signs of rust or corrosion, your first action should be to apply a small amount of penetrating oil. Allow it to sit for a few minutes to work its way into the threads. Here’s a pro tip: Tapping the screw head lightly with a screwdriver handle can help the oil penetrate deeper and break the rust’s grip.
- Locate the retaining screw on top of the handle.
- Apply penetrating oil directly to the screw head and threads.
- Wait 5-10 minutes for the oil to work.
Step 2: Carefully unscrewing the retainer
Using the appropriate screwdriver or wrench, turn the retaining screw counter-clockwise to loosen it. Apply firm, steady pressure to avoid stripping the screw head. Now, listen up: if the screw is a nut-and-bolt combination, you will need a wrench to hold the nut on the underside while you turn the bolt from the top.
- Select the correct size screwdriver or wrench.
- Apply firm, downward pressure while turning counter-clockwise.
- Hold the nut on the bottom if necessary.
Step 3: Lifting the handle off the valve stem
Once the screw is completely removed, the handle should lift straight off the valve stem. If it is stuck, avoid using excessive force or a hammer, as this could damage the fragile valve stem or its seals. Instead, gently rock the handle back and forth to break it free. Key Takeaway: The goal is to remove the handle without causing any secondary damage to the valve stem, which is crucial for the new handle to fit and operate correctly.
| Action | Tool | Potential Challenge |
|---|---|---|
| Loosen Fastener | Penetrating Oil, Screwdriver/Wrench | Rusted or stripped screw head. |
| Remove Screw | Screwdriver/Wrench | Keeping the nut stationary (if applicable). |
| Lift Handle | Hand pressure (no tools) | Handle is seized onto the stem. |
Prepping the Ball Valve for a New Handle
After successfully removing the old handle, a few moments of preparation will ensure the new handle installs securely and functions smoothly. This step involves cleaning the mounting point and ensuring the valve itself is in the correct position. Skipping this preparation can lead to a poor fit and future operational issues.

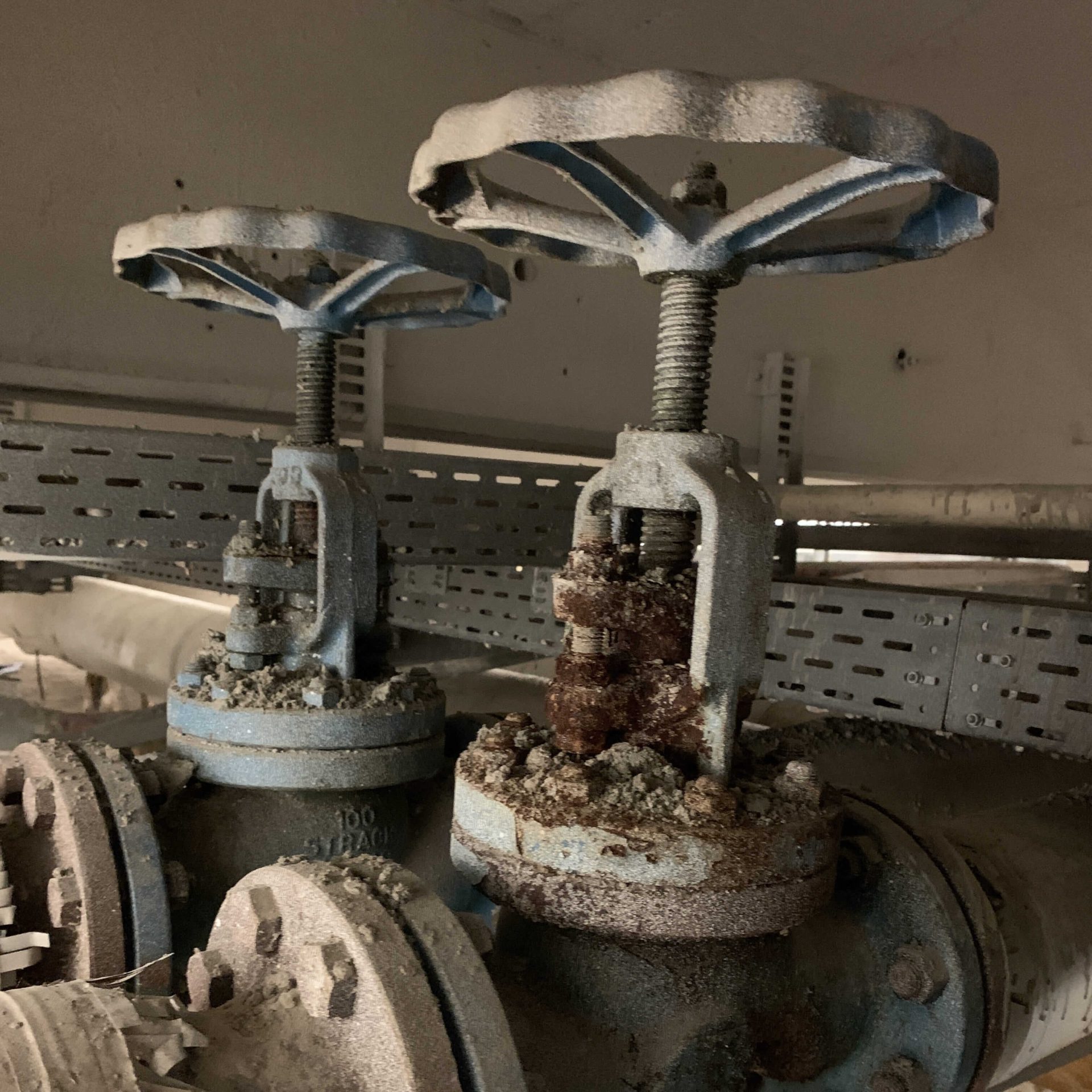

Why should you clean the valve stem?
The top of the valve stem where the handle mounts can accumulate dirt, rust, and grime over time. This buildup can prevent the new handle from seating properly, causing it to wobble or fail prematurely. The bottom line is: a clean surface ensures a snug fit and reliable power transfer from the handle to the valve.
- Use a clean cloth to wipe away loose debris.
- Use a wire brush to gently scrub off stubborn rust or grime.
- Ensure the stem post is completely clean before proceeding.
Positioning the ball valve for installation
Before placing the new handle, it’s wise to confirm the valve’s current position (open or closed) by turning the stem with a small wrench. The new handle has markings that indicate flow, so aligning it correctly with the valve’s actual position is critical. Remember this: this simple check prevents dangerous operational confusion later on.
- Open: The slot on the stem is parallel to the pipe.
- Closed: The slot on the stem is perpendicular to the pipe.
Inspecting the stem for any damage
With the handle off, take a moment to closely inspect the top of the valve stem for any signs of twisting, cracking, or wear. If the stem itself is damaged, a new handle will not solve the root problem, and the entire ball valve unit must be replaced. Key Takeaway: This quick, final inspection is your last chance to confirm that a handle replacement is the right fix, preventing wasted effort and ensuring a lasting repair.
| Preparation Task | Objective | Best Practice |
|---|---|---|
| Clean Valve Stem | Ensure a secure fit for the new handle. | Use a wire brush for stubborn grime. |
| Position Valve | Align handle indicator with flow status. | Use a wrench to confirm open/closed state. |
| Inspect Stem | Verify the integrity of the valve itself. | Look for cracks, twists, or severe wear. |
Installing the New Ball Valve Handle
Now you are ready to install the new handle, restoring control over your ball valve. This part of the process should be quick and satisfying if the previous preparation steps were done correctly. The focus here is on correct alignment and securing the handle without overtightening.
Step 1: Aligning the new handle with the stem
Position the new handle onto the valve stem, making sure its orientation matches the valve’s current state (open or closed). The handle’s built-in stop should engage correctly with the stops on the valve body. Think of it this way: the handle’s direction must be a perfect visual representation of the internal flow path.
- Slide the handle onto the clean stem post.
- Ensure the handle sits flush against the valve body.
- Confirm the handle’s open/closed indicator aligns with the actual valve position.
Step 2: Inserting and tightening the screw
Insert the new retaining screw provided with the handle (or reuse the old one if it’s in good condition). Tighten it clockwise with the appropriate tool until it is snug. The result? The handle should feel secure with no wobble or play.
- Hand-thread the screw first to avoid cross-threading.
- Use a screwdriver or wrench to tighten it firmly.
- Check for any movement or looseness in the handle.
Is it possible to overtighten the handle?
Yes, you can absolutely overtighten the screw, which can strip the threads or even crack the new plastic or metal handle. The goal is to make it tight enough to prevent slipping, but not so tight that it puts excessive stress on the components. Key Takeaway: A properly installed handle feels like an integral part of the valve—secure, responsive, and correctly aligned with the internal ball position for clear operational status.
| Installation Step | Description | Common Mistake to Avoid |
|---|---|---|
| Align Handle | Place handle on stem, matching valve position. | Misaligning the open/closed indicator. |
| Secure Handle | Insert and tighten the retaining screw. | Overtightening and stripping the screw/handle. |
| Final Check | Ensure handle is firm with no wobble. | Ignoring slight play, which can worsen over time. |
Testing Your New Ball Valve Handle
The final step is to test the newly installed handle to confirm that the repair was successful and the valve operates as expected. This functional check ensures the valve is ready to be returned to service and provides confidence in the repair. A successful test is the ultimate confirmation of a job well done.
How to perform a functional check?
With the main system supply still off, operate the handle by turning it 90 degrees from its current position and back again. The movement should be smooth, without binding or excessive resistance. Now for the real test: ensure the handle stops firmly at both the fully open and fully closed positions without any sponginess.
- Turn the handle from open to closed.
- Turn the handle from closed to open.
- Feel for smooth travel and hard stops at each end.
Checking for proper alignment and operation
Visually confirm that the handle’s position accurately reflects the valve’s status. When the handle is parallel to the pipe, the valve should be open, and when it is perpendicular, the valve should be closed. Why does this matter? This visual cue is vital for safe and correct system operation by any personnel.
- Handle parallel to pipe = Valve is open.
- Handle perpendicular to pipe = Valve is closed.
- Confirm these positions match the physical stops.
What to do if the ball valve still won’t turn?
If the handle moves but the valve is stiff or won’t turn, the problem lies within the valve body itself—likely a seized ball or damaged seats. At this point, the handle replacement has failed to solve the root cause, and the entire ball valve assembly must be replaced. Key Takeaway: A thorough operational test verifies not only your work on the handle but also the health of the entire valve unit, giving you complete confidence before recommissioning the line.
| Test | Procedure | Success Criteria |
|---|---|---|
| Functional Check | Operate handle through its full 90-degree range. | Smooth movement, firm stops, no binding. |
| Alignment Check | Verify handle direction matches flow status. | Parallel = Open; Perpendicular = Closed. |
| Final Diagnosis | Confirm valve operates with the new handle. | The valve opens and closes as commanded. |
Conclusion
You have successfully addressed the problem of a non-functional ball valve handle, mitigating the agitation of potential system failure and downtime. By following this guide, you have a clear solution to restore control and safety to your fluid systems. For industrial and municipal projects demanding high reliability, using inferior replacement parts is not an option. RUITO, a trusted manufacturer of mid-to-high-end industrial valves, provides high-reliability, cost-effective solutions that meet stringent international standards like ISO, CE, and WRAS. When your project’s integrity is on the line, partner with a supplier committed to quality and performance. Our vision is to be the world’s most trusted exporter of general-purpose valves, ensuring every project succeeds with components you can depend on. Contact RUITO for professional selection advice and rapid delivery of certified valve components.
Frequently Asked Questions (FAQ)
- Q1: Can I use any brand of handle on my ball valve?
No, you cannot. The handle’s mounting hole must precisely match the valve stem’s size and shape (e.g., square, double-D), and the stop-points must align with the valve body. - Q2: How do I know if the handle is broken or if the whole valve is seized?
Yes, there is a clear way to tell. After removing the handle, try turning the exposed valve stem with an adjustable wrench. If the stem turns smoothly, only the handle was broken; if the stem will not budge, the entire valve is seized and must be replaced. - Q3: What should I do if the handle’s retaining screw is rusted and stripped?
Yes, this is a common problem that can be overcome. You will need to use a screw extractor tool to drill into the stripped screw and remove it. Always replace a stripped screw with a new one. - Q4: Do I need to shut off the fluid supply before replacing the handle?
Yes, absolutely. You must always isolate the valve from system pressure and drain the line before beginning work. This prevents accidental discharge and ensures your safety. - Q5: Is it possible to put the handle on backwards or in the wrong position?
Yes, it is possible and can create a serious safety hazard. Always confirm the valve’s true open/closed state with a wrench on the stem before aligning and attaching the new handle to ensure its indicator position is accurate.
