Choosing the wrong butterfly valve can lead to installation headaches, complex maintenance, and even system-wide shutdowns. This isn’t just an inconvenience; it’s a direct threat to your project timelines and budget. A simple mismatch can cause cascading failures, damage your company’s reputation, and create significant safety risks, especially when a valve fails in a critical end-of-line service.

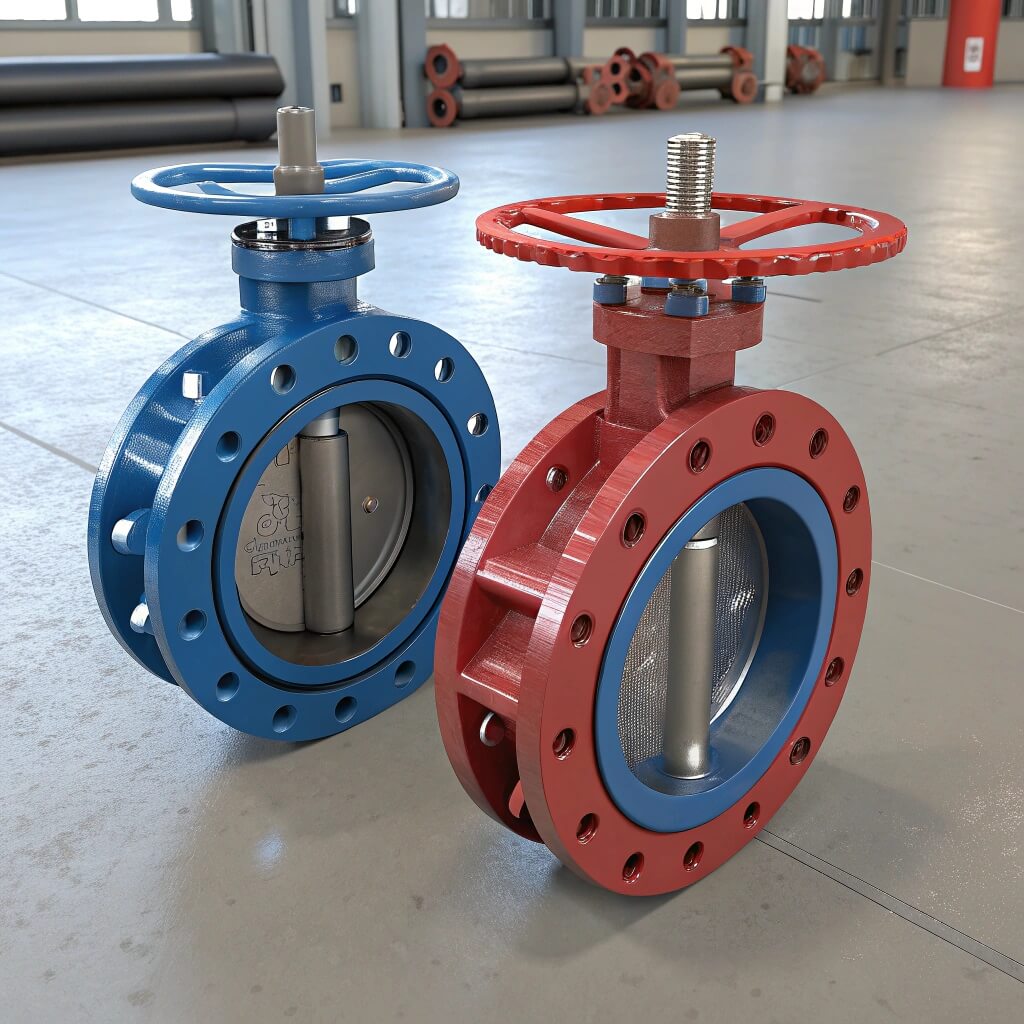

This guide eliminates that uncertainty. We provide a direct, data-driven comparison of lug and wafer butterfly valves, helping you make the correct procurement decision every time. With 20 years of manufacturing experience and key certifications like ISO 9001, CE, and WRAS, we have the technical expertise to ensure your system performs flawlessly.
1. What Defines a Wafer-Style Butterfly Valve?
A wafer-style butterfly valve is known for its simple, compact design, making it a popular choice for many applications. It’s defined by its body, which is sandwiched between two pipe flanges. This design is cost-effective and saves space in tight piping runs.
Design and Sealing Principle
The wafer valve doesn’t have its own connection points like threaded holes. Instead, it relies entirely on the compression generated by long bolts that run from one flange, through the valve’s bolt-guiding holes, to the other flange. The seal is achieved as the pipe flanges squeeze the valve body, which often features a resilient seat that acts as the primary seal and a gasket.
Common Materials and Seat Options
You’ll typically find wafer valves made from economical yet durable materials like Ductile Iron and Cast Iron, which are perfect for general water, air, and HVAC systems. The seat material is what ensures a tight shutoff. Common options like EPDM offer excellent performance for water applications, while NBR is better suited for oils and fuels.
Here’s the bottom line. The wafer design is effective and economical, but its reliance on flange compression has direct implications for system maintenance. For any valve service or removal, you must completely depressurize and drain the entire section of the pipeline.
- Compression-Held: The valve is held securely in place purely by the tension of the flange bolts.
- Full System Shutdown: Maintenance requires draining the entire pipe segment, as there’s no independent valve mounting.
- Gasket Function: The valve’s resilient seat often doubles as the flange gasket, simplifying installation.
| Feature | Specification for a Typical DN100 Wafer Valve |
|---|---|
| Common Materials | Ductile Iron (GGG40/50), Cast Iron (GG25) |
| Pressure Rating | PN10 / PN16 (150 PSI) |
| Seat Options | EPDM (-10°C to 120°C), NBR (-10°C to 80°C) |
| Flange Standard | DIN, ANSI, JIS |
Key Takeaway: Wafer butterfly valves are compact, cost-effective components held in place by flange compression. They are an excellent choice for general-purpose applications where a full system shutdown for maintenance is an acceptable procedure.
2. What Characterizes a Lug-Style Butterfly Valve?
A lug-style butterfly valve offers a more robust and mechanically secure connection compared to its wafer counterpart. Its defining feature is a series of threaded inserts, or “lugs,” machined directly into the valve’s body. This design fundamentally changes how the valve is installed and serviced.
Threaded “Lug” Body Design
These threaded lugs align perfectly with the bolt holes on a pipe flange. This allows the valve to be fastened directly to a flange using shorter bolts, known as cap screws. Each lug provides an independent, strong anchor point for securing the valve within the pipeline.
Direct Bolting Connection Method
Unlike a wafer valve that is “pinched” between two flanges, a lug valve is bolted to each flange independently. Bolts pass through the holes on each flange and thread into the valve body. This creates a more secure, vibration-resistant connection that can handle higher mechanical stresses.
What does this mean for your project? The lug valve’s design gives you superior structural integrity and operational flexibility. It’s especially useful in systems with high vibration, temperature fluctuations, or where the ability to isolate equipment is a priority.
- Threaded Inserts: The valve body features tapped holes (lugs) that accept bolts directly.
- Independent Bolting: Each flange is bolted to the valve separately, creating a secure, self-supporting unit.
- Superior Stability: This design offers enhanced resistance to mechanical stress and pipe movement.
| Parameter | ANSI 150 Lug Specification | DIN PN16 Lug Specification |
|---|---|---|
| Bolt Type | Cap Screw (e.g., A193 B7) | Cap Screw (e.g., Grade 8.8) |
| DN100 Bolt Size | 8 x 5/8″ | 8 x M16 |
| DN100 Torque | ~160 Nm | ~180 Nm |
| Flange Facing | Raised Face (RF) | Raised Face (RF) |
Key Takeaway: A lug butterfly valve uses a system of threaded inserts for a direct, bolted connection to pipe flanges. This provides greater structural integrity and unlocks unique maintenance advantages not possible with wafer-style valves.
3. How Do Butterfly Valve Installation Methods Differ?
While both lug and wafer valves control flow, their installation and removal procedures are vastly different. These differences have direct consequences for labor costs, downtime, and operational safety. Understanding them ensures you plan your project correctly from the start.
Wafer Valve Alignment and Centering
Installing a wafer valve requires careful handling. You must meticulously center the valve between the two flanges before tightening the bolts. If misaligned, the disc can strike the inside of the pipe when opening, causing damage and preventing a full seal.
Lug Valve Bolt-In Installation
A lug valve is simpler to align. Since the bolts thread directly into the valve body, the lugs themselves act as guides, pulling the valve into the correct position. This reduces the risk of human error during installation and ensures a perfect fit every time.
But there’s a catch. The biggest difference appears during maintenance. To remove a wafer valve, you must shut down and drain the entire section of the pipeline because removing the bolts releases the entire joint. With a lug valve, you can remove the downstream piping while the valve remains bolted to the upstream flange, holding back pressure.
- Wafer Valve Removal: Always requires full system depressurization and draining before the through-bolts can be safely removed.
- Lug Valve Removal: Can be removed from service without shutting down the entire system, as it can be unbolted from one flange while remaining attached to the other.
- Alignment: Wafer valves demand precise manual centering, while lug valves are self-aligning due to their bolt-in design.
| Task | Wafer Valve (DN150) | Lug Valve (DN150) |
|---|---|---|
| Estimated Install Time | ~30 minutes | ~20 minutes |
| Alignment Method | Manual Centering Tool | Self-Aligning via Bolts |
| Required Tools | 2 Wrenches, Alignment Pins | 1 Torque Wrench |
| System State for Removal | Must Be Fully Drained | Downstream Can Be Drained Only |
Key Takeaway: Lug butterfly valves simplify alignment and allow for equipment removal without a complete system shutdown. Wafer valves have a simpler body design but demand a full system drain for any service, potentially increasing downtime and labor costs.
4. Which Butterfly Valve Excels in End-of-Line Service?
The distinction between lug and wafer valves becomes most apparent in end-of-line applications. This is a scenario where the valve is placed at the end of a pipeline, such as on the outlet of a tank or a pump. Using the wrong valve here isn’t just a technical error—it’s a serious safety hazard.
Defining “Dead-End” or “End-of-Line” Service
This term describes any application where a valve must hold pressure without a downstream flange or pipe for support. For example, it allows you to remove a pump for maintenance while the valve holds back the fluid from the upstream pipeline. The valve itself becomes the end of the pressurized system.
Why Lug Valves Are Designed for This Role
A lug-style butterfly valve is the only correct choice for dead-end service. Its threaded lugs allow it to be securely bolted to a single upstream flange, creating a sealed, self-contained endpoint. It can withstand the full system pressure without any downstream support.
Now, this is significant. A wafer valve, held only by compression, would be ejected from the line if the downstream flange were removed, causing a sudden and catastrophic release of system media. This can result in equipment damage, environmental spills, and severe injury to personnel.
- Lug Valve Function: Bolts directly to one flange, creating a reliable seal capable of holding full system pressure independently.
- Wafer Valve Failure: Lacks the structural ability to hold pressure without the counter-force of a downstream flange and will fail dangerously.
- Safety Mandate: For all applications requiring equipment isolation or dead-end service, you must specify a lug-style butterfly valve.
| Application Scenario | Lug Valve Performance | Wafer Valve Performance |
|---|---|---|
| Pump Outlet Isolation | Pass (Safe) | Fail (Unsafe) |
| Tank Draining Control | Pass (Safe) | Fail (Unsafe) |
| End of Pipe Cap-Off | Pass (Safe) | Fail (Unsafe) |
| Future Expansion Point | Pass (Safe) | Fail (Unsafe) |
Key Takeaway: For any end-of-line or dead-end service, only a lug-style butterfly valve is suitable and safe. Its independent bolting capability allows it to hold pressure without downstream support, a critical function that wafer valves cannot perform.
5. What Are the Cost Implications of Each Butterfly Valve?
When making a procurement decision, the initial price is only part of the story. A true cost analysis involves looking at the Total Cost of Ownership (TCO), which includes installation, maintenance, and potential downtime. Here, the differences between lug and wafer butterfly valves become very clear.
Comparing Physical Weight and Footprint
Wafer valves are generally lighter and more compact because their bodies have less material. Lug valves are heavier and slightly bulkier due to the extra metal required for the threaded lugs. This gives wafer valves a slight edge in shipping costs and handling on-site.
Material and Machining Cost Breakdown
The primary cost difference comes from manufacturing. A wafer valve is essentially a cast body with a seat. A lug valve requires the additional, precise step of drilling and tapping the lug holes, which adds machining time and cost, making its initial purchase price higher.
Think about it this way. While the wafer valve is cheaper to buy, the lug valve can save you significantly more money over the system’s lifetime. If you need to service a downstream pump, the lug valve allows you to do so with minimal downtime. A wafer valve would force a full system drain, potentially halting production for hours or even days.
- Wafer Valves: Offer a lower initial purchase price due to less material and simpler manufacturing. They are lighter, reducing shipping costs.
- Lug Valves: Have a higher upfront cost due to the added machining of the threaded lugs. They are also heavier.
- Total Cost of Ownership (TCO): The lug valve’s maintenance flexibility can drastically reduce downtime costs in critical systems, often justifying its higher initial price.
| Cost Factor (DN100 Example) | Wafer Butterfly Valve | Lug Butterfly Valve |
|---|---|---|
| Initial Purchase Price | €80 | €110 |
| Est. Installation Labor | €50 | €40 |
| Downtime Cost (1 hr) | €500 (if system drain) | €0 (if isolating) |
| Long-Term TCO Outlook | Lower Upfront | Lower Lifetime Cost |
Key Takeaway: While wafer butterfly valves have a lower initial purchase price, the maintenance flexibility offered by lug valves can lead to a significantly lower Total Cost of Ownership (TCO) in applications where downtime is expensive.
6. In Which Applications Does Each Butterfly Valve Thrive?
The final decision between a lug and wafer butterfly valve comes down to the specific demands of your application. It’s not about which valve is “better” overall, but which is technically correct for the job. Matching the valve type to the system requirements ensures reliability, safety, and cost-effectiveness.
Wafer Valves: General-Purpose Applications
Wafer butterfly valves are the workhorses of many industries. They are ideal for systems where cost is a major driver and end-of-line service is not a requirement. You’ll find them widely used in HVAC, municipal water distribution, and food and beverage processing for handling non-corrosive liquids, gases, and powders.
Lug Valves: Critical and High-Stress Systems
Lug butterfly valves are specified for more demanding jobs. Their secure mounting makes them the preferred choice for applications with high vibration, heavy mechanical loads, or extreme temperature cycling, such as in shipbuilding, chemical processing plants, and industrial equipment skids. Their ability to provide dead-end service makes them necessary for isolating pumps, tanks, and other critical equipment.
So, what’s the solution? Always analyze your system’s operational and maintenance needs. For a simple water line, a wafer valve is likely sufficient. For a chemical pump outlet that needs regular service, a lug valve is the only responsible choice.
- Wafer Applications: Water distribution, HVAC systems, food processing, bulk powder handling, and cost-sensitive projects.
- Lug Applications: Equipment isolation, chemical plants, oil and gas, shipbuilding (DNV certified), and high-vibration environments.
- Media Compatibility: For corrosive fluids, ensure you select the right body (e.g., SS316L, Duplex) and seat (e.g., PTFE) materials for either valve type.
| Industry | Preferred Valve Type | Rationale |
|---|---|---|
| HVAC & Water Treatment | Wafer | Cost-effective, low-stress application |
| Shipbuilding & Marine | Lug | High vibration, end-of-line service needs |
| Chemical Processing | Lug | Safety, equipment isolation, stability |
| Food & Beverage | Wafer | Compact, hygienic options available |
| Mining & Abrasives | Lug | Robustness against mechanical stress |
Key Takeaway: The application dictates the choice. Select a wafer butterfly valve for cost-sensitive, general-use cases, and specify a lug butterfly valve for demanding, high-reliability systems or any application requiring isolation capabilities.
Conclusion
The choice between a lug and wafer butterfly valve is a technical one, not a preferential one. Wafer valves offer a compact, cost-effective solution for general-purpose systems where a full shutdown for maintenance is feasible. In contrast, lug valves provide a more robust connection and the non-negotiable ability to perform end-of-line service, making them the correct choice for critical equipment isolation and high-stress environments.
Ultimately, the right selection hinges on a clear understanding of your application’s operational and safety requirements. Making the correct choice protects your system’s integrity, minimizes downtime, and ensures a safer working environment.
To ensure your selection meets all project specifications, submit your technical requirements to our engineering team for a detailed review and quotation.
Frequently Asked Questions (FAQ)
- Can a wafer butterfly valve be used for dead-end service?
No, absolutely not. A wafer valve requires the compressive force from two flanges to create a seal. If the downstream flange is removed, the valve will not be able to hold pressure and will be dangerously ejected from the pipeline. - Are the face-to-face dimensions the same for lug and wafer valves of the same size?
Yes. For a given standard, such as API 609, the face-to-face dimension (the distance between the two flange faces) is identical for both lug and wafer styles of the same nominal size. This ensures they are physically interchangeable within a pipeline without needing to modify the piping. - Do lug-style valves require special bolts?
They don’t require “special” bolts, but they use a different type than wafer valves. Lug valves use shorter bolts called cap screws, which thread directly into the valve’s tapped lugs. Wafer valves use long through-bolts with nuts that span the entire valve-and-flange assembly. - How does high pressure affect the choice between a lug and wafer design?
While both designs are available in high-pressure ratings like PN25 (Class 300), the lug style is often preferred in these systems. Its direct, bolted-in design provides superior body stability against flange bowing and is more resistant to the mechanical stresses and vibrations often found in high-pressure applications. - What are the common gasket requirements for each valve type?
Both valve types require gaskets for a proper seal. Many resilient-seated butterfly valves (both lug and wafer) feature a seat that extends to the flange faces, acting as the gasket itself. In other cases, particularly with high-performance or metal-seated valves, separate flange gaskets are required on both faces for both lug and wafer styles.
