You’re selecting a butterfly valve for a critical application, but choosing the wrong type can lead to premature failure, system downtime, and costly project delays. A valve that can’t handle your system’s pressure, temperature, or media becomes a significant liability. The market is flooded with options, and the technical differences between them aren’t always clear.
Imagine a valve seat degrading under high temperatures, causing a leak in a critical pipeline and forcing an emergency shutdown. Or picture a valve failing to seal properly in a high-pressure line, compromising the safety and efficiency of your entire operation. These are not just inconveniences; they are major operational risks that impact your budget, timeline, and reputation.
Understanding the fundamental differences between Resilient-Seated and High-Performance Double-Offset butterfly valves is the key to making an informed decision. This guide will walk you through the design, performance, and applications of each type. By the end, you’ll have the clarity to select the perfect valve that ensures reliability and longevity for your specific project needs.

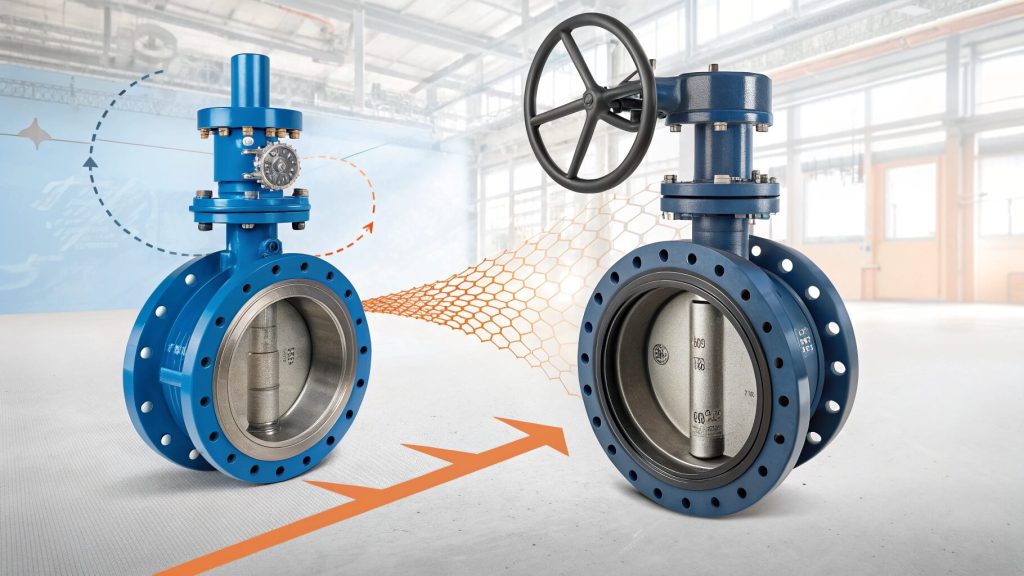

What’s the Core Design of Each Butterfly Valve?
When you look at these two valves, their core difference lies in how the disc interacts with the seat. This fundamental design choice dictates their performance, durability, and ideal use cases. It’s the starting point for understanding which butterfly valve is right for you.
How does a Resilient-Seated Valve work?
This is the most common type, featuring a concentric (zero-offset) design where the stem and disc are centered in the valve body. The disc rotates while maintaining constant contact with the soft, elastomeric seat to create a seal. So, what does this mean in practice? It means the valve relies on the friction and compression of this soft seat to stop the flow.
- Stem: Centered in the valve body and disc.
- Disc: Rotates within the seat, always in contact.
- Seal: Achieved by the disc compressing the soft seat.
- Wear: Constant friction between the disc and seat occurs during operation.
What makes a Double-Offset Valve ‘High-Performance’?
The “high-performance” label comes from its double-offset, or eccentric, design, which is a clever piece of engineering. The stem is offset from both the disc’s centerline and the valve’s centerline, creating a cam-like action as it opens. But wait, there’s more: this geometry ensures the disc lifts away from the seat almost instantly, only making contact at the final moment of closing to create a tight seal.
How does design impact sealing and wear?
The constant friction in a resilient-seated valve can cause the seat to wear down over time, especially if you’re opening and closing it frequently. In contrast, the double-offset design minimizes seat contact, which dramatically reduces friction and extends the valve’s service life under harsh conditions. Here’s the deal: this reduction in wear is the primary reason high-performance valves excel in demanding, high-cycle environments.
Key Takeaway: Choose a resilient-seated butterfly valve for general, low-wear applications and a double-offset butterfly valve for high-cycle, high-pressure, or high-temperature systems where longevity and reliability are critical.
| Feature | Resilient-Seated (Concentric) | High-Performance (Double-Offset) |
|---|---|---|
| Disc Geometry | Centered in pipe and seat | Offset from pipe and seat centerlines |
| Seat Contact | Constant contact and friction | Minimal contact, only at final closure |
| Action | Simple rotation, high friction | Cam-like action, low friction |
| Primary Wear | High, on the elastomeric seat | Low, on both disc and seat |
This table clearly shows how the double-offset geometry is purposefully engineered for reduced wear and a longer operational life.
How Is Each Butterfly Valve Constructed?
Beyond the design principle, the materials used to build a butterfly valve are crucial for its performance. The body, disc, and especially the seat determine its ability to withstand your specific process media and operating conditions. You must match the materials to your application to avoid premature failure.
What are Resilient-Seated valves made of?
These valves typically pair a ductile iron or coated cast iron body with a soft, elastomeric seat that lines the valve’s interior. The seat material is your most critical choice, as it dictates chemical compatibility and temperature limits. Here’s the deal: this design often prevents the process media from ever touching the valve body, which is a great benefit.
- EPDM: Excellent for water and steam, but not for oils.
- Nitrile (Buna-N): A great choice for oils, fuels, and solvents.
- Viton (FKM): Offers broad chemical resistance at higher temperatures.
- PTFE: Suitable for highly corrosive media and higher temperatures than elastomers.
Which materials are used for High-Performance valves?
High-performance valves are built for tougher jobs, using robust body materials like carbon steel or stainless steel to handle higher pressures. Their seats can be made from advanced polymers like reinforced PTFE or even solid metal, like Inconel, for extreme temperatures. What does this mean for you? It means these valves are ready for the most corrosive and demanding environments.
How do materials affect valve application?
The soft seat of a resilient-seated valve provides a fantastic, bubble-tight seal but is vulnerable to abrasion, high temperatures, and certain chemicals. The robust metal or reinforced PTFE seats in high-performance valves offer superior durability and resistance to harsh conditions, making them the go-to choice for aggressive chemical processing or high-temperature steam service. But what about the seat? This single component is often the deciding factor in your selection process.
Key Takeaway: Your process media is the deciding factor; always verify the chemical compatibility and temperature limits of the seat material before making a selection to ensure long-term reliability.
| Component | Resilient-Seated Materials | High-Performance Materials |
|---|---|---|
| Body | Ductile Iron, Cast Iron (Coated) | Carbon Steel, Stainless Steel, Alloy Steel |
| Disc | Stainless Steel, Plated Ductile Iron | Stainless Steel, Duplex, Super Duplex |
| Seat | EPDM, Nitrile, Viton, PTFE | PTFE, RTFE, Metal (Inconel, Stellite) |
The material selection directly correlates with the butterfly valve’s ability to handle aggressive media and extreme temperatures.
What Are the Limits of Each Butterfly Valve?
Every butterfly valve has its operational limits for pressure and temperature, and exceeding them is a common cause of failure. Understanding these boundaries is non-negotiable for ensuring the safety and reliability of your system. Pushing a valve beyond its design limits is a recipe for disaster.
How much pressure can a Resilient-Seated valve handle?
Resilient-seated valves are designed for low to moderate pressure applications, where the soft seat is the primary limiting factor. Typically, their pressure rating maxes out at around 250 PSI, making them perfect for many utility services. You might be wondering about specifics, and it’s always best to check the manufacturer’s data.
- General Service: Up to 250 PSI
- Standard Rating: Often rated for 150 PSI or 200 PSI
- Limiting Factor: The soft seat cannot withstand high pressures without deforming.
What are the specs for a High-Performance valve?
This is where the high-performance butterfly valve truly shines, as it is engineered for demanding environments. These valves can handle significantly higher pressures, often up to 1440 PSI (ANSI Class 600) and even higher in special configurations. Here’s the bottom line: if your system operates at high pressure, you need a high-performance butterfly valve.
How does temperature affect your valve choice?
A resilient-seated valve’s temperature range is strictly limited by its elastomer seat, generally topping out around 250°F (120°C). In contrast, high-performance valves with their PTFE or metal seats can operate across an incredible spectrum, from cryogenic applications to services pushing 1200°F (649°C). What does this mean for you? It means you have a reliable option for nearly any temperature requirement.
Key Takeaway: Always check the specific P-T (Pressure-Temperature) chart for your chosen butterfly valve model to ensure it will operate safely within its design limits for your unique application.
| Parameter | Resilient-Seated Valve | High-Performance Valve |
|---|---|---|
| Max Pressure | ~250 PSI | Up to 1440 PSI (ANSI 600) or higher |
| Temperature Range | Up to ~250°F (120°C) | -425°F to 1200°F (-254°C to 649°C) |
| Performance Envelope | Low to Moderate | High Pressure & High Temperature |
This data illustrates the vastly superior performance envelope of the double-offset butterfly valve for demanding conditions.
Where Do You Use Each Butterfly Valve?
Theory is one thing, but practical application is what matters most. Knowing the typical industrial settings for each butterfly valve helps you confirm you’re aligning your choice with established engineering best practices. You want to use the right tool for the right job to ensure success.
When is a Resilient-Seated valve the best choice?
You’ll find resilient-seated valves in a wide array of general service applications where conditions are not extreme. They are a cost-effective and reliable solution for systems that handle clean water, air, and other non-corrosive media at low pressures. You might be wondering where they are most common, and the list is extensive.
- Water and Wastewater Treatment
- HVAC Systems
- Food and Beverage (with appropriate seats)
- Pulp and Paper
- Compressed Air and Gas
What industries rely on High-Performance valves?
High-performance valves are the workhorses of heavy industry, where their durability and ability to handle extreme conditions are essential. Their reliability is paramount in sectors where failure is not an option. Here’s the deal: if your system involves high pressures, high temperatures, or harsh chemicals, this is likely the butterfly valve you need.
Can you use them for the same jobs?
While there is some overlap in lower-end applications, it’s rarely a good idea to substitute a resilient-seated valve in a high-performance application just to save on initial cost. This gamble risks frequent failure, safety hazards, and costly downtime. But what about the other way around? Using a high-performance valve where a resilient-seated one would suffice is often an unnecessary expense.
Key Takeaway: Match the butterfly valve to the industry standard for your application; choose resilient-seated for utility services and high-performance for demanding process industries to balance cost and performance.
| Application Type | Resilient-Seated Valve | High-Performance Valve |
|---|---|---|
| General Service | HVAC, Water/Wastewater, Food & Bev | Overkill, but functional |
| Heavy-Duty Service | Not Recommended | Oil & Gas, Chemical Processing |
| High-Temperature | Not Suitable | Power Generation (Steam), Petrochemical |
| Abrasive Media | Poor Resistance | Suitable with proper seat material |
The application list demonstrates a clear division between general-purpose and severe-service duties for each butterfly valve type.
What Are the Trade-Offs for Each Butterfly Valve?
No single butterfly valve is perfect for every situation, so making the best choice involves weighing the pros and cons of each option. You must balance your project’s specific priorities, such as budget, performance requirements, and long-term maintenance. Let’s break it down to make your decision easier.
What are the main benefits of Resilient-Seated valves?
The primary advantages are their low cost and excellent sealing capability in low-pressure applications. Their simple design makes them inexpensive to purchase and maintain, and the soft seat provides a reliable, bubble-tight shutoff. Here’s the deal: this makes them an unbeatable choice for many basic on/off applications.
- Low Initial Cost: Simpler design and materials are less expensive.
- Bubble-Tight Shutoff: The soft seat provides excellent sealing.
- Simple Design: Easy to operate, install, and maintain.
- Media Isolation: The seat can protect the valve body from the process fluid.
Why would you pay more for a High-Performance valve?
You’re paying for durability, a longer service life, and a much wider operational range of pressure and temperature. The reduced seat wear means less frequent maintenance and greater reliability under physical and thermal stress. The bottom line is: their superior performance in harsh conditions easily justifies the higher initial investment by preventing costly downtime.
What are the disadvantages to consider?
The main drawback of resilient-seated valves is their limited performance envelope and susceptibility to wear in high-cycle or abrasive services. For high-performance valves, the primary con is the higher upfront cost, which can be a barrier for projects with tight budgets. What does this mean for you? You must decide if your application’s demands justify the investment in a more robust, long-lasting solution.
Key Takeaway: Your decision comes down to balancing budget against risk; a lower initial cost might lead to higher long-term maintenance expenses if the butterfly valve is not properly matched to the service.
| Factor | Resilient-Seated Valve | High-Performance Valve |
|---|---|---|
| Advantages | Low cost, bubble-tight seal, simple | High performance, long life, durable |
| Disadvantages | Limited P/T range, high wear | Higher initial cost, more complex |
| Best For | General, low-pressure services | Severe, high-pressure, high-temp services |
| Cost Profile | Low upfront, potential for higher maintenance | High upfront, lower total cost of ownership |
This table highlights a classic engineering trade-off: initial cost versus long-term performance and reliability.
How to Choose the Right Butterfly Valve for You?
You’ve learned the designs, materials, and applications of each butterfly valve. Now, it’s time to translate that knowledge into a confident decision. Use this final checklist to guide your selection process and ensure you choose the optimal butterfly valve for your project’s success.
What questions should you ask first?
Start with your core operating parameters before you even look at a valve datasheet. You need to have clear answers to a few critical questions about your system to narrow down your options effectively. What’s the real story? This foundational data is non-negotiable for good engineering.
- What is the process media (fluid/gas)?
- What are the minimum and maximum operating pressures?
- What are the minimum and maximum operating temperatures?
- What is the function (on/off, throttling, or flow control)?
- How many cycles per day will the valve perform?
When should you consult an expert?
If your application involves abrasive slurries, severe chemical corrosion, high-viscosity fluids, or falls near the performance edge of a standard valve, it’s time to consult an expert. Don’t guess when safety and reliability are on the line. But wait, there’s more: a quick consultation can save you from a major headache and costly mistake down the road.
How do you verify supplier quality?
Choosing the right butterfly valve type is only half the battle; you also need a reliable supplier who stands behind their product. Look for manufacturers with a proven track record, comprehensive technical support, and the right certifications for your industry. Here’s the deal: this step ensures the valve you receive meets the performance and safety standards you expect.
Key Takeaway: A systematic approach to butterfly valve selection, starting with your process conditions and ending with supplier verification, is the best way to guarantee project success and long-term reliability.
| Decision Step | Action Required | Resilient-Seated | High-Performance |
|---|---|---|---|
| 1. Define Parameters | List pressure, temp, media | P < 250 PSI, T < 250°F | P > 250 PSI, T > 250°F |
| 2. Determine Function | On/Off or Throttling? | Good for On/Off | Better for Throttling |
| 3. Assess Criticality | Is downtime acceptable? | For non-critical systems | For critical systems |
| 4. Check Budget | Initial vs. Total Cost | Low Initial Cost | Higher Initial Cost |
| 5. Verify Supplier | Check certifications (ISO, CE) | Essential | Essential |
This checklist provides a simple, actionable framework for making a final, confident decision on your butterfly valve selection.
Conclusion: Your Partner in Precision Flow Control
You came here looking for clarity on which butterfly valve to choose, wrestling with the risk of selecting the wrong component for your critical system. Now you know the distinct advantages and ideal applications for both Resilient-Seated and High-Performance Double-Offset valves. You have the knowledge to move from uncertainty to a confident, data-driven decision.
At our company, we do more than just sell valves; we provide engineered flow control solutions. With a complete range of certified (ISO 9001, CE, WRAS) butterfly valves and a technical team ready to offer 24-hour support, we partner with you to ensure you get the right product, on time, every time.
Our vision is to deliver precision and reliability, so your systems operate flawlessly.
Frequently Asked Questions (FAQ)
Q1: Can I use a resilient-seated valve for high-pressure steam?
No, you should not. The high temperature and pressure of steam service will quickly degrade the soft, elastomeric seat of a resilient-seated valve, leading to failure. You must use a high-performance butterfly valve with a metal or appropriate PTFE seat for steam applications.
Q2: How do I know if I need a high-performance butterfly valve?
You likely need one if your application involves any of the following: pressures above 250 PSI, temperatures above 250°F (120°C), abrasive media, or high-cycle (frequent opening/closing) requirements. If your system is critical and downtime is costly, a high-performance valve is a wise investment.
Q3: Is a double-offset valve always more expensive?
Yes, the initial purchase price of a double-offset valve is typically higher than a resilient-seated valve of the same size. This is due to its more complex design and more robust materials. However, its longer service life and lower maintenance needs can result in a lower total cost of ownership over time.
Q4: Can a high-performance butterfly valve provide zero leakage?
Yes, absolutely. High-performance butterfly valves with soft seats (like PTFE) are designed to provide bubble-tight, zero-leakage shutoff, even in high-pressure and high-temperature conditions. Metal-seated versions also offer excellent sealing that meets industry standards.
Q5: What certifications are most important when choosing a supplier?
Look for suppliers with internationally recognized quality management and product safety certifications. Key certifications to verify include ISO 9001 (quality management), CE (European conformity), and WRAS (for potable water applications), which demonstrate a commitment to quality, safety, and reliability.
