Your production line demands absolute purity, but inconsistent flow control and contamination risks from hard-to-clean components threaten every batch. A single contamination event can lead to costly product recalls and irreparable damage to your brand, while manual errors cause downtime and waste. Sanitary butterfly valves are engineered to solve these exact challenges, providing precise, automated control while ensuring the highest levels of hygiene.

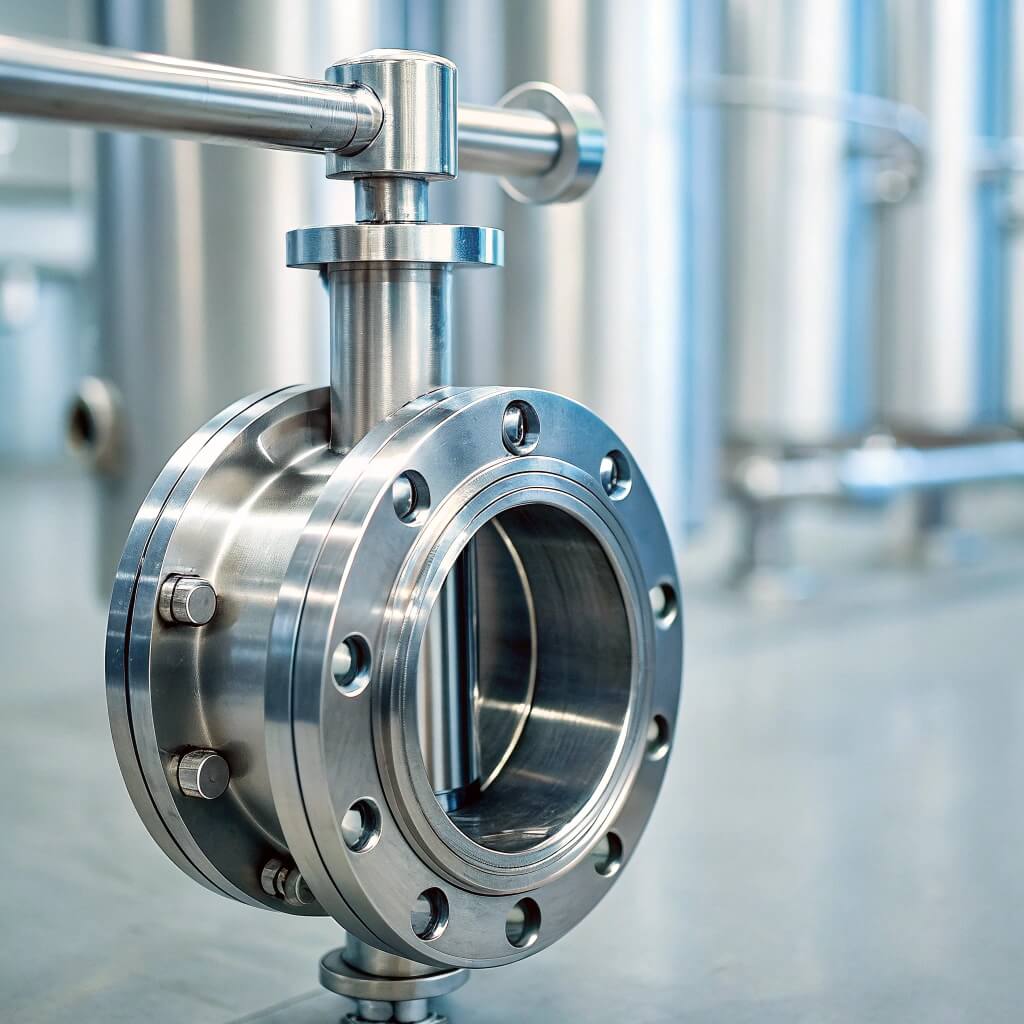

Core Features of a Sanitary Butterfly Valve
A sanitary butterfly valve is defined by its specialized construction, which prioritizes cleanability and prevents microbial growth. These valves are essential for maintaining sterile conditions in your fluid handling systems. Their streamlined design ensures smooth, non-turbulent flow to protect product integrity.
What is Hygienic Design?
Hygienic design eliminates crevices, threads, and dead legs where bacteria can harbor and multiply, ensuring your system is easy to clean and sterilize. Here’s the deal: every surface is engineered to be self-draining and free of imperfections. This is achieved through specific features that promote purity:
- Highly polished, crevice-free product contact surfaces.
- Radiused corners to prevent particle buildup.
- FDA-compliant materials for all wetted parts.
Seal and Gasket Materials
The choice of seal material is critical for ensuring chemical compatibility, temperature resistance, and a leak-proof seal in your process. What does this mean for you? Selecting the wrong material can lead to seal failure, product contamination, and costly downtime. Common material options include:
- EPDM: Excellent for water, steam, and CIP chemicals.
- Silicone: Offers a wide temperature range and is ideal for many food-grade applications.
- Viton (FKM): Provides superior resistance to oils, fuels, and aggressive chemicals.
Surface Finish Explained
Surface finish, measured in Ra (Roughness Average), dictates how smooth the valve’s metal surfaces are, directly impacting its cleanability and resistance to bacterial adhesion. The bottom line is, a lower Ra value signifies a smoother, more polished surface that is easier to sanitize. Typical finishes include:
- <32 Ra: A standard sanitary finish suitable for many food and beverage applications.
- <20 Ra: A high-purity finish often required for pharmaceutical and biotech processes.
- <15 Ra with Electropolish: An ultra-pure finish for the most demanding sterile environments.
Key Takeaway: Understanding these core features allows you to select a valve that not only meets but exceeds the hygienic standards required for your specific application, directly safeguarding your product’s purity.
Key Industries for the Butterfly Valve
The sanitary butterfly valve is a versatile workhorse, trusted across industries where purity is non-negotiable. Its reliable performance and hygienic design make it a go-to solution for flow control. From beverages to biopharmaceuticals, this valve protects product integrity.
Food and Beverage Processing
In food and beverage production, these valves are used to control the flow of everything from thin liquids to viscous sauces, all while preventing cross-contamination. Think about it: maintaining consistency and safety is paramount in this industry. Applications include:
- Controlling the flow of juices, syrups, and flavorings.
- Diverting product in bottling and packaging lines.
- Isolating tanks during cleaning and production cycles.
Pharmaceutical and Biotech Uses
The pharmaceutical industry relies on sanitary butterfly valves to maintain sterile conditions in critical processes, such as purified water systems and buffer preparation. But that’s not all; their design is validated to meet stringent regulatory standards like ASME-BPE. Key uses are:
- Managing flow in Water-for-Injection (WFI) loops.
- Isolating bioreactors and fermentation vessels.
- Directing media in chromatography and filtration skids.
Dairy Production Applications
From milk reception to final product packaging, the sanitary butterfly valve is essential for handling dairy products safely and efficiently. Here’s the key: its gentle product handling and excellent cleanability are perfect for sensitive dairy products. You’ll find them in:
- Milk and cream processing lines.
- Controlling flow to pasteurizers and homogenizers.
- Clean-in-Place (CIP) system routing.
Key Takeaway: The butterfly valve’s adaptability across these critical industries confirms its status as a fundamental component for any process requiring sterile and reliable flow control.
| Industry | Primary Application Focus | Key Product Examples |
|---|---|---|
| Food & Beverage | Versatile flow control, preventing cross-contamination | Juices, Sauces, Syrups |
| Pharmaceutical | Maintaining sterility, meeting regulatory standards | Purified Water, Buffers, Media |
| Dairy | Gentle product handling, superior cleanability | Milk, Cream, Yogurt |
This table demonstrates how a single valve design is tailored through material and finish specifications to meet the unique purity demands of each sector.
Choosing the Right Butterfly Valve Actuator
Selecting the correct actuator is just as important as choosing the valve itself, as it determines how your valve will be controlled. Your choice will impact your system’s efficiency, precision, and level of automation. Actuators provide the force needed to open and close the valve disc.
Electric vs. Pneumatic Actuation
Electric actuators use a motor for precise positioning, while pneumatic actuators use compressed air for fast, powerful action. So, what’s the difference? Electric is ideal for modulating control, whereas pneumatic excels at simple on/off tasks.
- Electric: High precision, energy-efficient, but slower and higher initial cost.
- Pneumatic: Fast-acting, reliable, lower cost, but requires a compressed air supply.
How to Size Your Actuator?
Proper actuator sizing is crucial for reliable valve operation; an undersized actuator will fail to operate, while an oversized one is inefficient and costly. Here’s what you need to know: you must calculate the required torque based on line pressure and media type. Key factors include:
- Valve size and type.
- System line pressure (psi/bar).
- Media characteristics (e.g., viscosity).
Control and Signal Options
Modern actuators offer advanced control options, including modulating control for precise positioning and feedback signals that confirm the valve’s state. The real benefit is full integration with your plant’s control system (PLC or SCADA). Popular options include:
- 4-20mA signal: For proportional (modulating) control.
- AS-i / DeviceNet: Digital communication protocols for smart control.
- Position feedback: Switches that confirm if the valve is open or closed.
Key Takeaway: Selecting an actuator that matches your process requirements for speed, precision, and control integration is the key to unlocking automated efficiency.
| Actuator Type | Power Source | Best For | Key Advantage |
|---|---|---|---|
| Pneumatic | Compressed Air | Rapid On/Off Cycling | Speed and Simplicity |
| Electric | Electricity | Precise Modulating Control | Accuracy and Energy Efficiency |
This comparison clarifies that the choice between pneumatic and electric actuation depends directly on whether your application prioritizes speed or precision.
Installation Guide for Your Butterfly Valve
Proper installation is the foundation for a leak-free, long-lasting sanitary butterfly valve. A flawless installation ensures the valve performs as designed, protecting your process from contamination and failure. Taking the time to do it right prevents costly future problems.
Ensuring Proper Alignment
The valve must be perfectly aligned with the adjoining pipes to prevent stress on the valve body and ensure the disc can open and close freely. Now, listen closely: misalignment is a leading cause of premature seal failure and leaks. Always check for:
- Concentric alignment between the valve and pipes.
- Parallel alignment of the pipe flanges or clamp ends.
- Sufficient space for the valve to operate without obstruction.
What About Gasket Seating?
The gasket must be seated correctly within the connection to create a perfect seal without being pinched or damaged. Here’s a pro tip: lightly lubricate the gasket with a food-grade lubricant to help it seat smoothly. Best practices include:
- Ensuring the gasket is the correct size for the connection.
- Placing the gasket evenly before tightening the connection.
- Tightening clamps or bolts in a star pattern for even pressure.
Connection Types: Clamp vs. Weld
Tri-clamp connections offer flexibility for easy assembly and disassembly, while weld-end connections provide a permanent, crevice-free joint. What’s the best choice for you? Clamps are ideal for systems requiring frequent maintenance, whereas welding is preferred for fixed, long-term installations.
- Tri-Clamp: Fast installation, easy access for cleaning and inspection.
- Weld-End: Permanent and highly sanitary, but requires specialized installation.
Key Takeaway: Following these installation best practices is not just a recommendation—it’s essential for guaranteeing the hygienic integrity and operational reliability of your entire fluid system.
| Connection Type | Flexibility | Installation | Ideal Use Case |
|---|---|---|---|
| Tri-Clamp | High (easy to disassemble) | Quick and simple | Systems requiring frequent access |
| Weld-End | Low (permanent) | Requires skilled welding | Fixed, high-purity process lines |
This table highlights the fundamental trade-off between the flexibility of clamp connections and the permanence of weld connections.
Maintenance Tips for Your Butterfly Valve
Proactive maintenance is key to maximizing the lifespan and reliability of your sanitary butterfly valve. A simple maintenance schedule can prevent unexpected failures and ensure your line runs smoothly. Regular checks help maintain the hygienic barrier your process depends on.
Routine Inspection Checklist
Regular visual inspections can help you catch potential issues before they cause downtime. To put it simply: a quick look can save you hours of repair work later. Your checklist should include:
- Checking for any external leaks around the connections or stem.
- Listening for unusual noises from the actuator during operation.
- Verifying that position indicators are functioning correctly.
When Should You Replace Seals?
Seals are wear items and must be replaced periodically to prevent leaks and contamination. Look for these signs: visible leaks are the most obvious indicator, but you should also inspect seals for physical degradation. It’s time to replace a seal if you notice:
- Brittleness, cracking, or discoloration.
- Visible nicks, cuts, or flattening.
- Any signs of weeping or product residue around the stem.
Actuator Service and Care
The actuator also requires attention to ensure it continues to operate the valve reliably. Don’t forget about this: whether pneumatic or electric, your actuator has specific maintenance needs. Key tasks include:
- Pneumatic: Checking the air supply for moisture and correct pressure.
- Electric: Ensuring electrical connections are secure and free of corrosion.
- Inspecting all mounting hardware to ensure it remains tight.
Key Takeaway: A consistent maintenance program is the most effective way to protect your investment, prevent costly production stoppages, and ensure your valve operates safely and hygienically for years to come.
| Maintenance Task | Frequency | Purpose |
|---|---|---|
| Visual Inspection | Daily / Weekly | Catch leaks and obvious faults early. |
| Seal Inspection | Quarterly / Bi-Annually | Prevent process contamination from seal failure. |
| Actuator Check | Monthly | Ensure reliable and consistent valve operation. |
This schedule provides a clear framework for a preventative maintenance plan that minimizes risk and maximizes operational uptime.
Manual vs. Motorized Butterfly Valve
Deciding between a manual and a motorized butterfly valve depends on your need for precision, repeatability, and system integration. While a manual valve is simple, a motorized valve opens the door to automation. This choice fundamentally impacts your process control capabilities.
Precision and Repeatability
Motorized actuators provide a level of precision and repeatability that is impossible to achieve with a manual handle. Here’s the deal: automation eliminates human error, ensuring the valve opens to the exact same position every single time. This consistency delivers:
- Improved batch-to-batch product consistency.
- Reduced product waste from over- or under-filling.
- Optimized flow rates for sensitive processes.
Is Automation Worth the Cost?
While the initial investment for a motorized valve is higher, the return on investment is often realized through increased efficiency and reduced operational costs. Let’s break it down: automation pays for itself by minimizing manual labor and preventing costly errors. Key financial benefits include:
- Lower labor costs due to reduced manual intervention.
- Fewer spoiled batches thanks to precise, error-free control.
- Increased production throughput from faster, more reliable cycling.
Integration with Control Systems
Motorized butterfly valves are designed to integrate seamlessly with modern plant control systems like a PLC or SCADA. What does this mean for your plant? It allows for centralized control, real-time monitoring, and data logging for complete process visibility. Integration enables:
- Remote operation of valves from a central control room.
- Automated sequences for processes like CIP or batching.
- Data collection for process optimization and regulatory compliance.
Key Takeaway: Choosing a motorized butterfly valve elevates your process from simple manual control to a sophisticated, automated system that delivers superior precision, efficiency, and data-driven insights.
Conclusion: Your Partner in Purity and Control
You came here looking for a solution to the constant challenges of maintaining purity and achieving precise control in your fluid systems. This guide has shown how sanitary butterfly valves directly solve these problems through hygienic design, proper selection, and smart automation. We’re here to help you navigate these choices and engineer a system that eliminates contamination risks, stops manual errors, and boosts your operational efficiency.
Ready to achieve flawless control? Contact our experts today for a personalized consultation.
We believe every fluid system deserves uncompromising purity and precision.
Frequently Asked Questions (FAQ)
Can I install a motorized butterfly valve vertically?
Yes, you can. Sanitary butterfly valves are designed to be installed in any orientation—vertical, horizontal, or angled—without impacting their performance or sealing capability.
How do I know if my butterfly valve seal is failing?
The most obvious sign is a visible leak. You should also regularly inspect the seal for signs of wear such as cracking, brittleness, discoloration, or physical damage.
What’s the best way to clean my sanitary butterfly valve?
The best method is using your established Clean-in-Place (CIP) procedures. The valve’s hygienic design allows for effective cleaning with standard CIP flow rates and chemicals.
Can I upgrade my manual valve to a motorized one later?
Yes, in most cases. Many sanitary butterfly valves are built on a standardized platform, allowing you to easily unbolt the manual handle and mount a pneumatic or electric actuator.
How do I select the right size butterfly valve for my pipe?
The valve size should match the outer diameter and standard of your existing tubing (e.g., a 2″ tube requires a 2″ valve). This ensures a perfect fit for weld or clamp connections.
