You’re at a critical point in designing your fluid control system, staring down a decision that feels deceptively simple: choosing a valve. But this isn’t just any component; it’s the gatekeeper of your entire process. Making the wrong choice can lead to a cascade of problems—inefficient flow, catastrophic leaks, unexpected system failures, and costly downtime that grinds your operation to a halt. This article is your solution, a definitive guide to demystify the solenoid operated butterfly valve and empower you to select the right tool for the job with absolute confidence.
How a solenoid operated butterfly valve works
A solenoid operated butterfly valve merges the precise electrical control of a solenoid with the high-flow capacity of a butterfly valve. This hybrid design creates a responsive, automated solution for managing fluid in large-scale systems. What does this mean for you? It means you get the best of both worlds: rapid, remote activation and robust mechanical performance.
The Core Solenoid Function
At its heart, a solenoid is an electromechanical device that converts electrical energy into linear motion. When you send an electrical current through its coil, it generates a magnetic field that moves a small plunger. This simple but powerful action is the trigger that initiates the entire valve operation, providing a reliable on/off signal.
The Butterfly Valve Mechanism
The butterfly valve itself operates through a simple quarter-turn mechanism, which is why you can rely on it for quick shut-off. A circular disc—the “butterfly”—is mounted on a stem within the pipe’s flow path. To control the flow, you simply rotate the stem 90 degrees, which can:
- Open the valve: The disc turns parallel to the flow, allowing for maximum fluid passage.
- Close the valve: The disc turns perpendicular to the flow, creating a seal to block it.
Integrating Electrical Control with Fluid Flow
Here’s the deal: the solenoid doesn’t typically move the large butterfly disc directly. Instead, it acts as a pilot, controlling the flow of compressed air to a pneumatic actuator mounted on the butterfly valve. Energizing the solenoid sends an air signal that drives the actuator, which then provides the torque needed to turn the valve’s disc for fast, automated control.
Key Takeaway: You get the powerful, high-flow shutoff of a butterfly valve combined with the fast, precise electrical activation of a solenoid, creating a perfect solution for automated, remote process control.
| Component | Function | Mechanism |
|---|---|---|
| Solenoid Valve | Electrical Trigger | Uses an electromagnetic field to move a plunger, piloting the actuator. |
| Pneumatic Actuator | Mechanical Driver | Uses compressed air to generate torque and rotate the valve stem. |
| Butterfly Valve | Flow Controller | A disc rotates 90° to open or close the fluid path. |
| This integrated system allows an electrical signal to command a powerful mechanical action, automating flow control in large pipelines. |
Anatomy of a solenoid operated butterfly valve
Understanding the components of a solenoid operated butterfly valve is crucial for selecting the right model and ensuring its longevity. Each part plays a specific role in the valve’s performance, from the body that houses the fluid to the solenoid that provides the command. By familiarizing yourself with its anatomy, you can better diagnose issues and match materials to your application’s demands.
What are the key valve components?

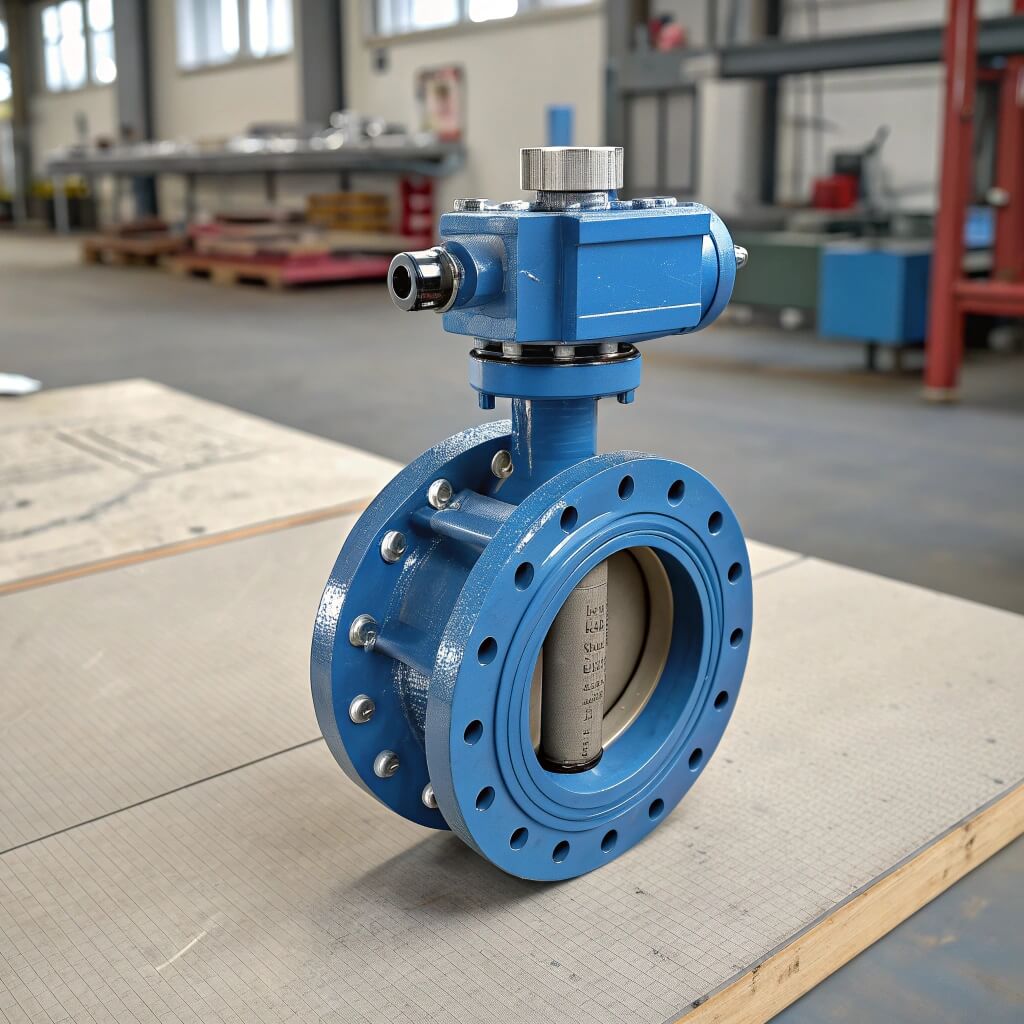

A solenoid operated butterfly valve is an assembly of several critical parts working in concert. While the exact configuration can vary, you’ll almost always find the same core elements. The primary components you should know are:
- Valve Body: The outer casing, typically made of cast iron or stainless steel, which connects to the pipeline.
- Disc: The “butterfly” that rotates to block or allow flow, made from materials like stainless steel or bronze.
- Seat/Liner: The soft seal (e.g., EPDM, PTFE) that the disc presses against for a tight shut-off.
- Actuator: The pneumatic device that converts air pressure into the rotational force needed to turn the disc.
- Solenoid: The electrical component that controls the air supply to the actuator.
Solenoid vs. Manual Actuation
The key difference lies in how you command the valve to open or close. Manual butterfly valves use a hand-lever or gearbox, requiring a person to be physically present to operate it. In contrast, a solenoid operated system gives you the power of remote and automated control, integrating the valve directly into your process control logic for superior efficiency and safety.
Understanding Material and Build Quality
But wait, there’s more: the materials used in construction directly impact the valve’s suitability for your specific fluid media and operating conditions. For example, a stainless steel body and disc offer excellent corrosion resistance for chemical applications, while an EPDM seat is ideal for water. Choosing the right materials prevents premature failure and ensures reliable, long-term performance in your system.
Key Takeaway: The build quality and material selection are not just details—they are fundamental to the valve’s performance, determining its compatibility with your media, its operational lifespan, and its overall reliability.
| Component | Common Materials | Key Consideration |
|---|---|---|
| Body & Disc | Cast Iron, Stainless Steel, PVC | Must be compatible with the fluid media to prevent corrosion. |
| Seat | EPDM, NBR, PTFE (Teflon), Viton | Must withstand the temperature and chemical properties of the fluid. |
| Actuator/Solenoid | Aluminum, Stainless Steel, Plastic | Needs to resist the ambient environment (e.g., moisture, dust). |
| The selection of materials is a critical engineering decision that directly influences the valve’s durability and suitability for a specific application. |
Where to use a solenoid operated butterfly valve
The versatility of a solenoid operated butterfly valve makes it a workhorse across numerous industries where automated, large-volume fluid control is essential. Its ability to handle different media and integrate with control systems allows you to deploy it in diverse and demanding environments. From water treatment plants to complex manufacturing lines, this valve provides a reliable on/off solution.
Applications in Industrial Automation
In automated industrial settings, these valves are indispensable for managing process fluids with precision and speed. You can use them in chemical processing to control the flow of corrosive liquids, in food and beverage production for sanitary applications, or in manufacturing pipelines. Their remote-control capability allows for seamless integration into PLC or SCADA systems, streamlining your entire operation.
Uses in Water and Fluid Management

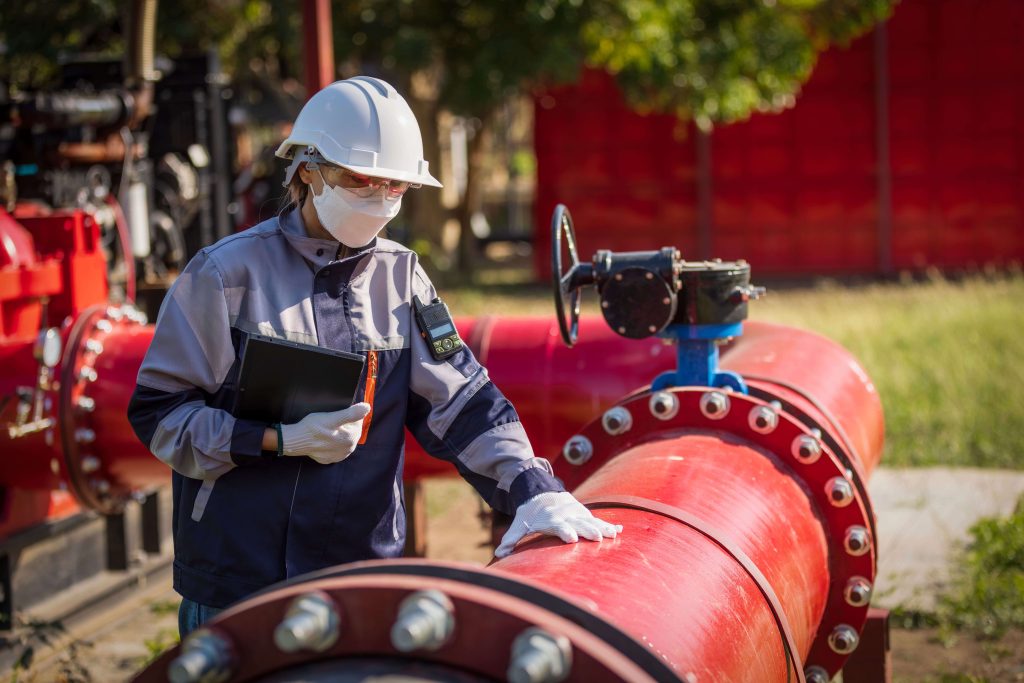

Ready to dive deeper? In water and wastewater management, a solenoid operated butterfly valve is a go-to choice for regulating large flow volumes. Its applications are extensive and critical for municipal and industrial water systems. Common uses include:
- Isolating sections of a water treatment plant for maintenance.
- Controlling flow in large-diameter pipelines for distribution.
- Automating irrigation systems for agriculture.
- Managing water flow in fire sprinkler systems for safety.
Role in HVAC and Power Generation
These valves also play a vital role in HVAC systems and power generation facilities where managing the flow of water and air is crucial for efficiency and safety. You can find them controlling the flow of cooling water in power plants or regulating air and water in large commercial HVAC units. Their rapid shut-off capability is especially valuable in emergency situations or during system startups and shutdowns.
Key Takeaway: You should consider a solenoid operated butterfly valve for any application that requires automated on/off control of large fluid volumes, especially where remote operation enhances efficiency and safety.
| Industry | Common Application | Key Benefit |
|---|---|---|
| Water Treatment | Isolate process sections, control main lines | Reliable shut-off for large volumes, automation. |
| Industrial Automation | Chemical dosing, process fluid transfer | Remote control, fast response, system integration. |
| HVAC & Power | Cooling water lines, air handling units | Rapid actuation for temperature and flow control. |
| The valve’s adaptability makes it a foundational component for modern, large-scale automated fluid and gas handling systems. |
Benefits of a solenoid operated butterfly valve
Integrating a solenoid operated butterfly valve into your system provides significant advantages, primarily centered on automation, efficiency, and safety. By leveraging electrical control, you can transform a manual process into a highly responsive, automated one. This upgrade can dramatically improve your operational capabilities and reduce long-term costs.
Achieving Fast and Automated Control
The primary benefit you gain is speed combined with automation. The solenoid can actuate in milliseconds, triggering the pneumatic actuator to open or close the large butterfly valve in just a few seconds. This rapid response is critical for applications requiring quick shut-off, such as emergency stops or time-sensitive batch processing, ensuring your system reacts instantly to commands.
Improving Remote Operation and Safety
Here’s the bottom line: removing the need for manual intervention is a massive boost for both safety and efficiency. You can operate valves located in hazardous or hard-to-reach areas from a central control room, protecting your personnel from dangerous environments. This also allows for streamlined, centralized management of your entire fluid network, reducing labor costs and human error.
How it offers application versatility
This valve isn’t a one-trick pony; its design allows it to handle a wide variety of media with impressive reliability. The combination of a robust butterfly valve and a simple solenoid pilot means you can adapt it to numerous scenarios. Its versatility extends to controlling:
- Clean liquids like water and oils.
- Gases and compressed air.
- Some slurries and fluids with suspended solids.
- Low-pressure steam and vacuum services.
Key Takeaway: You should choose this valve when your goals are to increase automation, improve system responsiveness, and enhance operational safety, especially in large-scale applications where manual control is impractical.
| Benefit | Description | Impact on Your Operation |
|---|---|---|
| Speed & Automation | Combines millisecond solenoid response with quick valve actuation. | Reduces process cycle times and enables time-critical actions. |
| Remote Control | Allows operation from a safe, centralized location. | Increases personnel safety and improves system oversight. |
| Versatility | Handles a wide range of fluids, gases, and some slurries. | Provides a flexible solution for diverse industrial needs. |
| These benefits translate directly into a more efficient, safer, and more reliable fluid control system with a lower total cost of ownership. |
Limits of a solenoid operated butterfly valve
While incredibly useful, a solenoid operated butterfly valve is not the perfect solution for every scenario. Understanding its limitations is just as important as knowing its benefits, as this will help you avoid misapplication and potential system failures. These valves have specific dependencies and vulnerabilities that you must consider during the design phase.
Its Dependence on Power and Air
The most significant limitation is its reliance on two external sources: electricity for the solenoid and compressed air for the pneumatic actuator. A failure in either your electrical supply or your air system will render the valve inoperable, potentially causing it to fail in an unsafe position. You must have reliable power and air infrastructure to ensure consistent performance.
Understanding Solenoid Coil Lifespan
But what does this mean for you? The solenoid coil, the heart of the electrical control, has a finite lifespan that is heavily influenced by its operating conditions. Frequent, rapid cycling generates heat and mechanical stress, leading to eventual burnout. Factors that can shorten its life include:
- Voltage spikes or instability: Incorrect voltage damages the coil insulation.
- High ambient temperatures: Heat prevents the coil from dissipating its own energy.
- Contamination: Dust and moisture can cause short circuits or impede plunger movement.
Issues with Noise and Voltage Sensitivity
Finally, you should be aware of potential operational annoyances and sensitivities. The actuation of the solenoid and pneumatic components can generate noticeable noise and vibration, which may be a concern in certain environments. Furthermore, the solenoid’s performance is highly sensitive to voltage fluctuations, which can lead to incomplete actuation or long-term damage to the coil.
Key Takeaway: You must ensure your facility has a stable power supply and a clean, reliable compressed air source to mitigate the primary risks associated with these valves and plan for eventual solenoid coil maintenance.
| Limitation | Cause | Mitigation Strategy |
|---|---|---|
| External Dependencies | Requires both electricity and compressed air. | Implement backup power and ensure air system reliability. |
| Coil Lifespan | Wear from cycling, heat, and voltage issues. | Use correct voltage, ensure a clean environment, and plan for periodic replacement. |
| Operational Issues | Noise during actuation; sensitivity to power fluctuations. | Use voltage regulators and account for noise in facility design. |
| Acknowledging these limitations allows for better system design, realistic maintenance planning, and ultimately, more reliable valve operation. |
Choosing your solenoid operated butterfly valve
Selecting the correct solenoid operated butterfly valve requires a careful evaluation of your system’s specific demands. It’s not a one-size-fits-all decision; you must match the valve’s specifications to your operational parameters to ensure optimal performance and longevity. This final check ensures your chosen valve is an asset, not a liability.
How to Assess Your Flow Media
The first step is to analyze the fluid or gas that will pass through the valve. You need to consider its chemical composition, viscosity, and whether it contains any abrasive particles. An aggressive chemical requires corrosion-resistant materials like stainless steel and PTFE, while a clean fluid like water may be fine with a cast iron body and an EPDM seat.
Matching Pressure and Temperature Needs
Next, you must ensure the valve’s pressure and temperature ratings exceed your system’s maximum operating conditions. A mismatch here is a recipe for disaster, leading to leaks, seal failure, or even catastrophic rupture. Always check the manufacturer’s specifications and select a valve with a comfortable safety margin for both pressure and temperature.
Long-Term Maintenance Considerations
Here’s the final piece of the puzzle: think about the valve’s entire lifecycle. While these valves are generally low-maintenance, they are not maintenance-free, and planning ahead will save you from future headaches. Your long-term maintenance plan should include:
- Periodic inspection of the seat for wear and tear.
- Checking for leaks around the stem and flanges.
- Ensuring the solenoid coil and electrical connections are secure.
- Confirming the pneumatic actuator receives clean, dry air at the correct pressure.
Key Takeaway: A successful valve selection hinges on a holistic assessment of your media, operating conditions, and long-term maintenance capacity, ensuring the valve you choose is perfectly suited for its environment.
| Selection Factor | Key Question to Ask | Why It Matters |
|---|---|---|
| Flow Media | Is my fluid corrosive, viscous, or filled with solids? | Determines the required body, disc, and seat materials. |
| Pressure & Temp. | What are the maximum P/T conditions of my system? | Prevents seal failure, leaks, and ensures safe operation. |
| Maintenance | What is my plan for inspection and parts replacement? | Ensures long-term reliability and minimizes unplanned downtime. |
| This systematic approach to selection guarantees that your valve will perform reliably and safely for its intended service life. |
Your Partner in Flow Control Confidence
You’ve navigated the complexities of valve selection, and now you understand the critical differences that define a successful fluid control system. You know how a solenoid operated butterfly valve works, where it excels, and what its limitations are. The risk of choosing the wrong valve—and facing the subsequent downtime and safety hazards—is no longer your problem.
At our core, we are more than just a supplier; we are your dedicated partner in engineering process efficiency. Our team of experts is ready to analyze your unique system requirements and recommend the perfect automated valve solution tailored to your needs. We are committed to building a more efficient, reliable, and safer industrial future, one valve at a time.
FAQ Section
- Can I use a solenoid operated butterfly valve for precise throttling?
No, not for precise control. These valves are primarily designed for on/off service, and while a butterfly valve can technically throttle flow, the standard solenoid actuator does not allow for fine, incremental adjustments. - How do I know if I need a direct-acting or pilot-operated setup?
It depends on your system’s pressure and flow rate. A direct-acting solenoid is suitable for lower flow rates and can operate with zero pressure differential, while a pilot-operated (indirect) setup is necessary for higher flow rates and requires a minimum pressure difference to function correctly. - What is the most common cause of failure in these valves?
Solenoid coil burnout is the most frequent issue. This is often caused by sustained voltage fluctuations, high ambient temperatures, contamination from dust or moisture, or simply reaching the end of its operational life after millions of cycles. - Can I easily replace a manual butterfly valve with one?
Yes, this is a very common and straightforward upgrade. However, you must ensure there is sufficient physical space to mount the pneumatic actuator and have access to a reliable electrical power source and a compressed air line near the installation point. - How do I know if my system is compatible with this valve?
Compatibility depends on three key factors. You must verify that the valve’s materials are compatible with your flow media, that its pressure and temperature ratings exceed your system’s maximums, and that you can provide the required stable electrical power and clean compressed air for actuation.
