As a project engineer or procurement manager, you are constantly under pressure to reduce costs. This often leads to considering standard butterfly valves for flow control (throttling) applications, a decision that seems like a simple cost-saving measure. However, this choice can have severe consequences, including poor process control, damaging operational noise, valve destruction from cavitation, and eventual system failure, leading to costly downtime and damage to your firm’s reputation. This article provides a clear engineering framework for deciding when a butterfly valve is right for control, covering ideal conditions, limitations, and selection criteria to ensure system integrity and long-term performance.

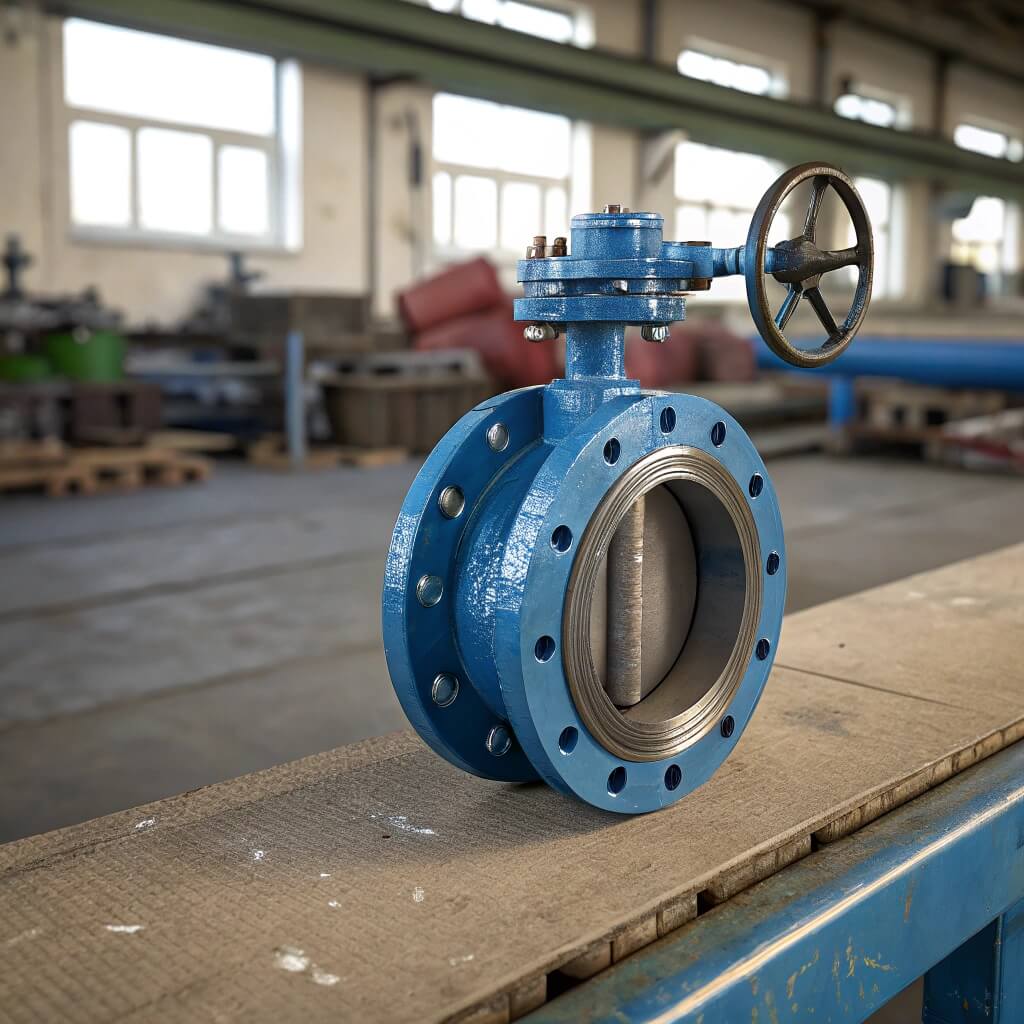

Butterfly Valve Control Basics
Understanding a butterfly valve’s fundamental behavior is the first step in assessing its suitability for control. These valves are designed for quick shut-off, but their characteristics for throttling are more complex. Properly evaluating them requires looking beyond the initial purchase price to their performance under specific system pressures and flow demands.
Flow Characteristics Explained
A butterfly valve exhibits an equal percentage flow characteristic, meaning each increment of disc opening produces a percentage change in flow relative to the existing flow. This is most effective in the middle range of travel, typically between 30 and 70 degrees of opening. Outside this range, control becomes unpredictable, with very small disc movements causing large, difficult-to-manage changes in flow.
Torque and Actuator Sizing
The torque required to operate a butterfly valve changes significantly throughout its stroke, peaking as the disc nears the closed position. This dynamic torque must be considered when sizing your actuator to prevent stalling or sluggish performance. Factors that influence torque requirements include:
- Differential pressure across the valve
- Media type and velocity
- Seat material and friction
What about inherent pressure drop issues?
Butterfly valves inherently create a pressure drop because the disc remains in the flow stream even when fully open, unlike a full-port ball valve. Here’s the deal: this obstruction can cause turbulence and a permanent pressure loss, which must be factored into your system’s hydraulic calculations. In control applications, this pressure drop changes as the valve modulates, directly impacting the valve’s ability to regulate flow effectively.
Key Takeaway: Butterfly valves offer an equal percentage flow characteristic best utilized between 30-70% open, but require careful actuator sizing due to dynamic torque and have an inherent pressure drop that affects system performance.
| Feature | Description | Implication for Control |
|---|---|---|
| Flow Characteristic | Equal percentage; most control occurs in the mid-range. | Poor precision at near-open or near-closed positions. |
| Operating Torque | Varies significantly; peaks near the closed position. | Actuator must be sized for the highest required torque. |
| Pressure Drop | Permanent pressure loss due to disc in the flow path. | Must be accounted for in system design to ensure adequate flow. |
This table shows that a butterfly valve’s core mechanics present both opportunities and challenges for control applications.
When to Use a Butterfly Valve
Despite their limitations, butterfly valves can be a cost-effective and suitable choice for certain control applications. The key is to match the valve’s capabilities with the system’s demands precisely. When operating conditions align with the valve’s strengths, you can achieve adequate regulation without over-investing in more expensive control valve types.
Low-Pressure Drop Systems
Butterfly valves perform well in applications where the pressure drop across the valve is low. In these scenarios, the risk of cavitation and high noise levels is significantly reduced, allowing the valve to throttle flow without sustaining damage. Ideal situations include:
- Cooling water circulation systems
- Low-pressure air handling units
- Pump discharge control where the system curve is relatively flat
Moderate Throttling Needs
If your application does not require pinpoint precision, a butterfly valve can provide sufficient control. But that’s not all… you can effectively use them for applications like managing flow into a large tank or blending processes where minor fluctuations are acceptable. They are not ideal for critical processes like chemical dosing, but are perfect for general-purpose flow regulation.
On/Off with Some Regulation

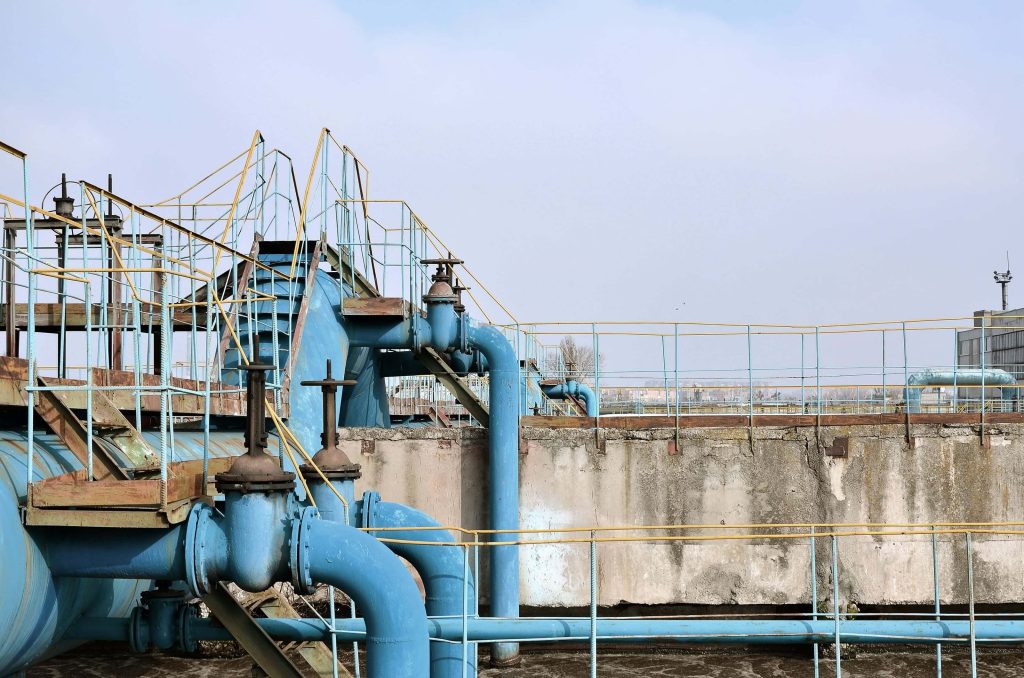

Sometimes, a system primarily needs an on/off valve but could benefit from occasional, simple regulation. A butterfly valve is an excellent two-in-one solution for this, providing fast shut-off while also offering the ability to be partially opened to a set point. This is common in water distribution networks or HVAC systems where you might need to balance different lines.
Key Takeaway: Butterfly valves are suitable for control in low-pressure drop systems, applications with moderate throttling requirements, and scenarios that primarily need on/off service with occasional regulation.
| Application Type | Suitability | Rationale |
|---|---|---|
| Low-Pressure Drop | High | Reduced risk of cavitation, noise, and erosion. |
| Moderate Control | Medium | Adequate for non-critical processes where precision isn’t key. |
| On/Off with Regulation | High | Cost-effective dual-purpose functionality. |
This analysis highlights that butterfly valves excel in specific, less-demanding control environments where their economic advantage shines.
Butterfly Valve Control Limits
Recognizing a butterfly valve’s operational limits is just as important as knowing its strengths. Pushing the valve beyond its designed capabilities is a primary cause of premature failure and poor system performance. Understanding these boundaries protects your investment and ensures system reliability.
Avoiding High-Pressure Drops
You must avoid using butterfly valves in applications with high-pressure drops, especially when the valve is operating near the closed position. The high fluid velocity created can lead to severe erosion of the disc and seat, quickly degrading the valve’s shut-off and control capabilities. As a general rule, the pressure drop should not exceed one-third of the inlet pressure for throttling applications.
What are the cavitation and noise risks?
When the pressure drop is too high, the local fluid pressure can fall below its vapor pressure, causing vapor bubbles to form and then violently collapse. This phenomenon, known as cavitation, generates extreme noise, vibration, and can physically destroy the valve’s internal components. The bottom line is: operating a butterfly valve in a cavitating condition will lead to rapid failure and potential damage to downstream piping.
Not for Precision Throttling
A standard butterfly valve is simply not designed for fine, precision control. Its equal percentage characteristic and torque dynamics make it difficult to achieve stable, repeatable flow rates at low openings. For applications that require high accuracy and a wide control range (turndown ratio), you should consider other valve types, such as:
- Globe valves
- V-port ball valves
- Segmented ball valves
Key Takeaway: Avoid using butterfly valves for control in high-pressure drop conditions due to cavitation and erosion risks, and never select them for applications requiring high-precision throttling.
| Limitation | Consequence | Recommended Action |
|---|---|---|
| High-Pressure Drop | Disc and seat erosion, loss of control. | Use in systems where ΔP is low or select a more robust valve. |
| Cavitation & Noise | Valve damage, vibration, system instability. | Keep operating pressure well above the fluid’s vapor pressure. |
| Precision Throttling | Unstable flow, poor repeatability. | Choose a globe valve or a characterized ball valve. |
These limitations define the critical operational boundaries that you must respect to prevent system failure.
Selecting a Control Butterfly Valve
Once you’ve determined a butterfly valve is appropriate for your control application, the selection process begins. Not all butterfly valves are created equal, and choosing the right components is critical for performance and longevity. Your focus should be on the parts that directly influence control and durability.
Evaluating the Seat and Disc
The seat and disc are the heart of the valve, and their design and material are paramount for control applications. A well-designed disc edge can improve the flow characteristic, making control more linear and predictable. For the seat, you need a material that can withstand the friction and stress of constant modulation without deforming or wearing out prematurely.
Matching Valve to Media
It is essential that you select valve materials compatible with the process fluid to prevent corrosion and premature failure. Here’s why it matters: aggressive chemicals can quickly degrade standard seat materials like EPDM or NBR, while abrasive slurries can erode the disc. Always verify material compatibility for your specific media, temperature, and pressure conditions.
How do you read a flow curve (Cv)?
The flow curve, or Cv curve, graphically represents a valve’s flow capacity at different opening percentages. When selecting a control butterfly valve, you should analyze this curve to ensure your desired operating range falls within the valve’s most controllable zone (typically 30-70% open). Key points to look for on a Cv curve include:
- The slope of the curve in your intended operating range
- The total flow capacity at 100% open
- How quickly the flow changes at the beginning and end of the stroke
Key Takeaway: Proper selection involves a detailed evaluation of the seat and disc, ensuring material compatibility with the media, and analyzing the Cv curve to match the valve’s characteristics to the system’s needs.
| Selection Criterion | What to Look For | Why It’s Important for Control |
|---|---|---|
| Seat & Disc | Contoured disc edge, durable seat material. | Improves flow characteristic and withstands throttling stresses. |
| Material Compatibility | Materials resistant to corrosion and abrasion from the media. | Prevents premature failure and ensures a long service life. |
| Flow Curve (Cv) | A predictable and stable control range (30-70% open). | Ensures the valve can effectively regulate flow where needed. |
A methodical selection process ensures the chosen butterfly valve is genuinely fit for the intended control duty.
Lined vs. HP Butterfly Valve
Within the butterfly valve category, there are distinct types designed for different duties, primarily resilient-seated (lined) and high-performance (HP). Choosing between them depends entirely on the demands of your control application. A lined valve is an economical choice for simple duties, while an HP valve offers superior performance for more challenging conditions.
Lined Valves for On/Off Duty
Resilient-seated, or lined, butterfly valves are the workhorses for on/off applications. Their seat is typically made of an elastomer like EPDM or PTFE that provides a bubble-tight seal when the disc compresses into it. While they can be used for some throttling, the constant friction and high-velocity flow can easily damage the soft seat, making them unsuitable for continuous or critical control.
HP Valves for Better Control
High-performance butterfly valves (HPBVs) are engineered specifically to handle more demanding conditions, including throttling. They feature a double or triple offset disc design, which reduces contact between the disc and seat during operation, minimizing wear. Benefits of using an HP valve for control include:
- Longer service life in throttling applications
- Higher pressure and temperature capabilities
- Improved sealing and more consistent torque
What is the cost vs. performance trade-off?
An HP butterfly valve costs significantly more than a standard lined valve, which can be a major factor in your project budget. However, you get what you pay for. Investing in an HP valve for a demanding control application prevents the frequent replacement costs, downtime, and poor performance associated with using an inappropriate lined valve. For critical services, the higher initial cost of an HP valve provides a much lower total cost of ownership.
Key Takeaway: Lined butterfly valves are best for on/off service with minimal throttling, while high-performance (HP) butterfly valves are specifically designed for demanding control applications, justifying their higher cost with superior durability and performance.
| Valve Type | Primary Use Case | Key Advantage for Control |
|---|---|---|
| Lined (Resilient-Seated) | On/Off, low-demand throttling. | Low initial cost. |
| High-Performance (HP) | Demanding throttling, high pressure/temp. | Reduced wear, longer life, better performance. |
This comparison clarifies that the choice between lined and HP valves is a strategic decision based on application severity.
Installing Your Butterfly Valve
Proper installation is the final and most critical step to ensure your butterfly valve performs correctly in a control application. Even a perfectly selected valve can fail if it is not installed and calibrated according to best practices. Common installation errors can lead to seat damage, actuator binding, and a complete loss of control.
Correct Flange Alignment
Misaligned pipe flanges are a leading cause of butterfly valve failure. Here’s the deal: if the flanges are not parallel and centered, they will unevenly compress the valve body when tightened, distorting the seat. This distortion can cause the disc to bind or tear the seat, leading to leakage and operational failure.
Actuator Calibration Steps
For a control valve, precise actuator calibration is essential to match the valve’s position to the control signal. The calibration process typically involves setting the start and end points of the stroke to correspond with the 4-20 mA or 0-10V control signal. Key steps include:
- Verifying the actuator moves to the fully closed position on a “close” signal.
- Setting the 0% (4 mA) signal to correspond to the closed position.
- Setting the 100% (20 mA) signal to correspond to the fully open position.
- Checking intermediate points (e.g., 25%, 50%, 75%) for linearity.
What are common installation mistakes?
Beyond flange misalignment, several other mistakes can compromise a butterfly valve’s performance. One common error is failing to fully open the disc before tightening the flange bolts, which can damage the disc edge. Another is installing the valve too close to an elbow or pump, as the resulting turbulence can disrupt flow and cause erratic control.
Key Takeaway: Successful butterfly valve control depends on meticulous installation, including perfect flange alignment, precise actuator calibration, and avoidance of common mistakes like installing in a turbulent flow area.
| Installation Step | Critical Action | Consequence of Error |
|---|---|---|
| Flange Alignment | Ensure flanges are parallel and concentric. | Seat distortion, disc binding, leakage. |
| Actuator Calibration | Set 0% and 100% stroke points accurately. | Poor control, inability to fully open or close. |
| Positioning | Install with sufficient straight pipe runs. | Turbulent flow, erratic control, premature wear. |
Adhering to these installation fundamentals is non-negotiable for achieving reliable valve performance.
Conclusion
The key takeaway is that while butterfly valves can certainly be used for control, it is not a universal solution. Success hinges on operating within specific parameters—typically between 30% and 70% open and in low-pressure drop systems—and selecting the correct type, such as a high-performance butterfly valve, for more demanding applications. Misapplying a standard valve in a critical control loop is a recipe for operational failure.
Don’t leave your system’s performance to chance. If you are unsure whether a butterfly valve fits your control requirements, consult an expert. Contact the RUITO engineering team for a professional assessment and customized valve solution. We provide the technical support and documentation needed to guarantee your project’s success.
FAQ
- Can I use a standard butterfly valve for throttling?
Generally, no, it’s not recommended for continuous or precise control. Standard resilient-seated butterfly valves are designed for on/off service, and frequent throttling can quickly damage the soft seat, leading to leakage and failure. - What percentage open is best for a butterfly valve?
The most effective and stable control range for a butterfly valve is typically between 30% and 70% open. Outside this range, control becomes non-linear and difficult to manage, as small movements of the disc cause disproportionately large changes in flow. - How do I prevent cavitation in my butterfly valve?
To prevent cavitation, you must ensure the pressure drop across the valve does not cause the local pressure to fall below the fluid’s vapor pressure. This is achieved by using the valve in low-pressure drop systems or, if a high drop is unavoidable, selecting a valve type specifically designed for anti-cavitation service, such as a multi-stage control valve. - Can I use a butterfly valve for gas flow control?
Yes, butterfly valves are commonly used for gas and air flow control, especially in large-diameter, low-pressure applications like HVAC systems and combustion air lines. However, for high-pressure gas or applications requiring precision, a different valve type may be more suitable due to potential noise and control challenges. - Is a ball valve better than a butterfly valve for control?
It depends on the specific valve type. A standard ball valve is worse for control than a butterfly valve due to its even more abrupt flow characteristics. However, a characterized or V-port ball valve is specifically designed for throttling and offers far superior precision and a wider control range than any butterfly valve.
