As a procurement manager or project engineer, you face a critical decision for every pipeline system: should you specify a wafer or a flanged ball valve? Choosing the wrong one can lead to wasted space, blown budgets, or even catastrophic system failures. The stakes are high, and the technical specifications can be overwhelming.
The pressure to get it right is immense. A valve that’s too bulky could derail an installation in a tight space, causing costly delays and redesigns. A less robust valve might fail under pressure, leading to dangerous leaks, expensive downtime, and damage to your professional reputation. Every choice feels like a gamble between cost, performance, and long-term reliability.
This guide removes the guesswork. We will walk you through a clear, side-by-side comparison of wafer and flanged ball valves. By the end, you’ll have the framework to select the perfect valve with confidence, ensuring your project runs smoothly, safely, and within budget.
What Defines a Ball Valve Wafer Type?
The Compact, Flangeless Body
A wafer ball valve is defined by its slim, flangeless body designed to be “sandwiched” between two existing pipe flanges. It relies on long bolts that pass through the pipe flanges to secure it in place, creating a compact and lightweight assembly. This design is inherently space-saving and uses less material than its flanged counterpart.
Here’s the main takeaway: The core design features of a wafer valve are its:
- Lightweight and compact profile.
- Short face-to-face dimension.
- Reliance on external pipe flanges for support and connection.
How Do Flanged Valves Differ?
Conversely, a flanged ball valve features its own integral flanges that are cast or forged as part of the valve body. These flanges have their own bolt holes and are connected directly to the pipe flanges with two separate sets of bolts and nuts. This makes the valve a self-contained, robust unit that is significantly heavier and larger.
So what does this mean for you? A flanged valve provides a more rigid and structurally sound connection, but at the cost of increased space and weight. This inherent robustness is why they are often specified for more demanding industrial applications.

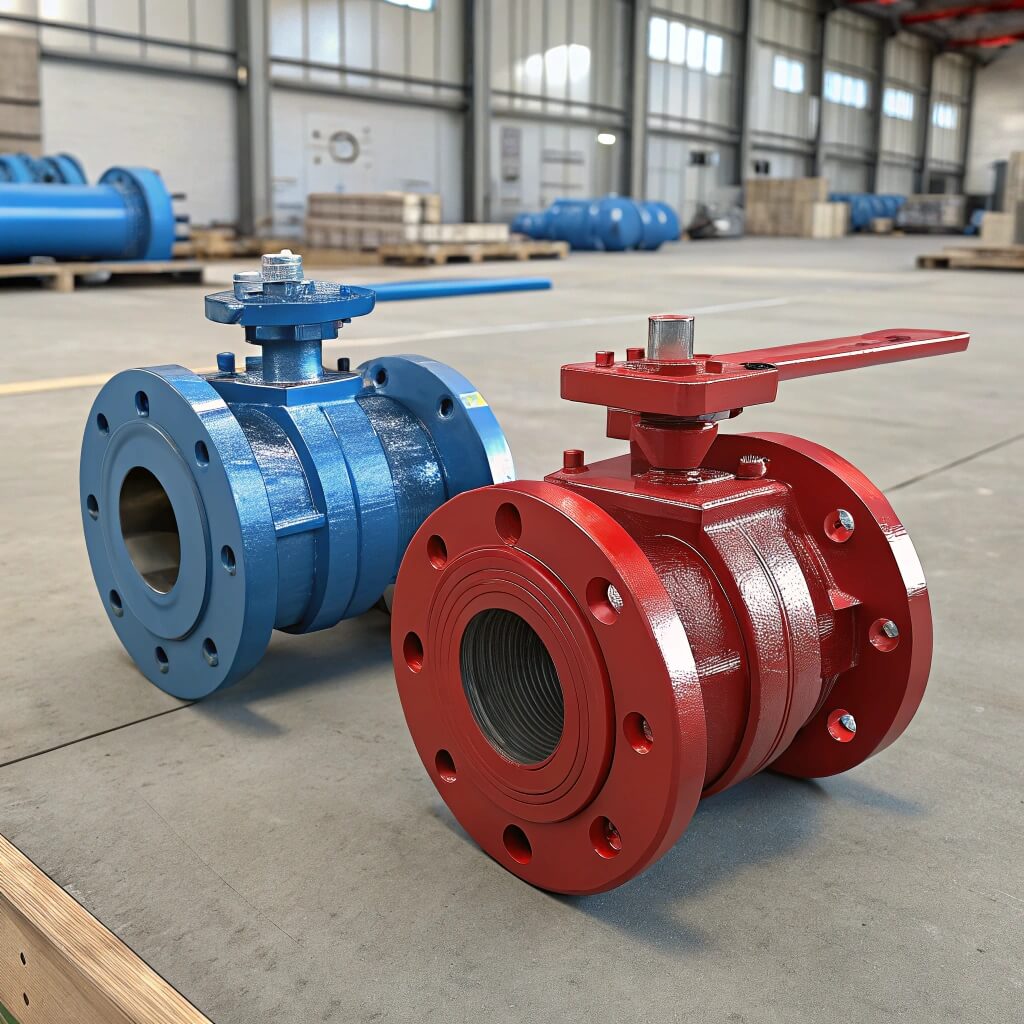

Visual & Structural Comparison
Visually, the difference is immediately apparent: the wafer valve is a thin disc, while the flanged valve is a bulky block with protruding connection points. This structural distinction dictates everything from installation complexity to system performance under stress. A flanged valve’s body absorbs more mechanical load, whereas a wafer valve transfers more stress to the connecting bolts and pipe flanges.
Key Takeaway: The primary difference lies in the connection. A ball valve wafer type is a compact, cost-effective “sandwich” design, while a flanged valve is a heavier, more robust unit with its own built-in connection points, offering greater structural integrity.
| Feature | Ball Valve Wafer Type | Flanged Ball Valve |
|---|---|---|
| Design | Slim, flangeless body | Bulky body with integral flanges |
| Connection | Clamped between pipe flanges | Bolted directly to pipe flanges |
| Weight | Lightweight | Heavy and robust |
This table highlights that the fundamental design choice between a wafer and a flanged valve centers on the trade-off between compactness and structural integrity.
Installing a Ball Valve Wafer Type
The “Sandwich” Installation Method
Installing a wafer valve is a straightforward process where you clamp the valve between two pipe flanges. This method requires a single set of long through-bolts that extend from one flange to the other, securing the valve in the middle. Proper alignment is critical to ensure an even gasket seal and prevent stress on the bolts.
What’s the catch? While simple, this method demands high precision. The installation process typically involves these steps:
- Carefully aligning the two pipe ends.
- Inserting the gasket and wafer valve.
- Passing long bolts through the flange holes.
- Tightening the bolts in a symmetrical, crisscross pattern.
Why is flanged installation complex?
Flanged valve installation is more labor-intensive because it involves two separate bolted connections. You must align the valve’s flanges with the pipe flanges on both sides, using a separate set of bolts and nuts for each connection. This process requires more hardware and careful handling to manage the valve’s heavier weight during alignment.
Think about it this way: You are essentially creating two separate, sealed joints instead of one. This doubles the amount of hardware and alignment checks required, increasing the potential for error if not performed carefully.
Which is faster for your team?
For most teams, installing a wafer valve is significantly faster due to its simplicity and lower weight. It requires fewer components and less physical effort to maneuver into place. However, the time saved can be lost if the pipes are misaligned, as correcting this can be a major challenge.
Key Takeaway: A ball valve wafer type generally offers a faster, simpler installation, reducing labor costs. However, it demands greater precision in pipe alignment to prevent stress and leaks.
| Factor | Ball Valve Wafer Type | Flanged Ball Valve |
|---|---|---|
| Installation Time | Faster | Slower |
| Required Hardware | Fewer (long through-bolts) | More (two sets of bolts/nuts) |
| Alignment Precision | High precision required | More forgiving but complex |
Ultimately, wafer installation is quicker on paper, but flanged installation can be more predictable in less-than-ideal field conditions.
Total Cost of a Ball Valve Wafer Type
Analyzing the Upfront Purchase Price
The initial purchase price of a wafer ball valve is almost always lower than a comparable flanged valve. This cost difference is driven by its efficient design, which uses significantly less material. Manufacturing is also simpler, as there are no complex flanges to cast and machine.
But wait, there’s more: The cost advantage comes from several factors:
- Less metal (cast iron, carbon steel, etc.) required for the body.
- Simpler and faster manufacturing processes.
- Lower shipping and handling costs due to reduced weight.
Do installation costs differ?
Yes, installation costs for a wafer valve are typically lower. The quicker installation process translates directly into fewer labor hours. Furthermore, you save on hardware costs since you only need one set of longer bolts instead of two sets of shorter bolts and nuts.
Here’s where it gets interesting: The lighter weight of a wafer valve may also eliminate the need for heavy lifting equipment in smaller to medium sizes. This can result in significant savings on a large project with many valve installations.
Calculating the Long-Term Value
While the upfront cost is attractive, you must consider the Total Cost of Ownership (TCO). In less demanding applications, a wafer valve’s low initial cost and easy replacement make it a great value. However, in a high-vibration or high-pressure system, a more expensive flanged valve may prevent costly failures and downtime, offering better long-term value.
Key Takeaway: While a ball valve wafer type is almost always cheaper to purchase and install, the true cost-effectiveness depends on the application’s demands and potential maintenance expenses over the valve’s lifecycle.
| Cost Factor | Ball Valve Wafer Type | Flanged Ball Valve |
|---|---|---|
| Purchase Price | Lower | Higher |
| Installation Cost | Lower (less labor & hardware) | Higher (more labor & hardware) |
| Long-Term Value | High in moderate conditions | High in demanding conditions |
This comparison shows that a wafer valve wins on initial budget, but a flanged valve can be a wiser long-term investment for critical systems.
Performance: Ball Valve Wafer Type Limits
Pressure and Temperature Ratings
Flanged ball valves are the clear winners for high-pressure and high-temperature service. Their robust, integral flange connections create a stronger, more reliable seal that can withstand extreme forces. Wafer valves, which rely on bolt compression for sealing, are typically limited to low-to-medium pressure and temperature applications.
This is a critical point: Always check the valve’s specifications against your system’s requirements.
- Wafer Valves: Commonly rated for PN10/PN16 or ASME Class 150.
- Flanged Valves: Widely available in ratings up to PN100 or ASME Class 600 and beyond.
How do they handle vibration?
In systems with significant vibration or mechanical stress, a flanged valve provides superior stability. Its bolted body-to-flange connection creates a rigid structure that resists movement and maintains seal integrity. A wafer valve, being clamped in place, is more susceptible to loosening or seal damage from pipeline vibrations over time.
What’s the real story? The flanged valve’s body acts as a solid, structural component of the pipeline. The wafer valve is more of a floating component, making it less ideal for systems with heavy pulsation or water hammer.
Matching the Valve to System Demands
Selecting the right valve means conducting a thorough risk assessment of your system. A flanged valve is the conservative, safe choice for any critical application where failure is not an option. A wafer valve is an efficient, engineered solution for controlled environments where its performance limits will not be exceeded.
Key Takeaway: Flanged valves are the default choice for high-pressure, high-temperature, and high-vibration systems. A ball valve wafer type excels in moderate conditions where its limitations are not a concern.
| Performance Metric | Ball Valve Wafer Type | Flanged Ball Valve |
|---|---|---|
| Pressure/Temp Limits | Moderate | High |
| Vibration Resistance | Lower | Higher |
| Structural Integrity | Good | Superior |
This analysis confirms that performance limitations are the most important factor to consider when selecting a wafer valve.
Where to Use a Ball Valve Wafer Type
Ideal Wafer Valve Applications
A wafer ball valve is the perfect choice for applications where space and cost are the primary design drivers. Its compact size makes it ideal for retrofitting existing systems or for new installations in confined spaces like ship engine rooms or mechanical skids. You will commonly find them in general service applications.
For example:
- HVAC and building services.
- Municipal water treatment and distribution.
- Food and beverage processing lines.
- Light-duty chemical applications.
When Is Flanged Non-Negotiable?
There are certain applications where the robustness and reliability of a flanged valve are mandatory. These are typically high-risk environments where a leak could have severe safety, environmental, or financial consequences. Flanged valves are also required for end-of-line service, where a valve must be able to seal against pressure from one side without a downstream pipe.
There’s a simple rule of thumb: If the application involves any of the following, specify a flanged valve:
- Oil and gas transmission pipelines.
- High-pressure steam systems.
- Hazardous or corrosive chemical processing.
- End-of-line shutoff points.
Making the Right Application Choice
Your decision should be guided by a simple evaluation of priorities. If your project is budget-sensitive and operates within a standard building or utility system, a wafer valve is an excellent and efficient choice. If your project involves industrial processing, high energy, or volatile media, the safety and integrity of a flanged valve are worth the extra cost and space.
Key Takeaway: Use a ball valve wafer type where space and cost are primary drivers in low-to-moderate duty applications. Opt for flanged valves when safety, reliability, and performance in harsh conditions are paramount.
| Factor | Ball Valve Wafer Type | Flanged Ball Valve |
|---|---|---|
| Primary Driver | Cost and Space | Safety and Reliability |
| Typical Industries | HVAC, Water, Food & Bev | Oil & Gas, Chemical, Power |
| System Conditions | Moderate Pressure/Temp | High Pressure/Temp/Vibration |
This framework clarifies that the application itself dictates the correct valve choice, balancing project constraints with operational demands.
Servicing Your Ball Valve Wafer Type
What does maintenance look like?
Replacing a wafer valve requires removing all the long through-bolts, which allows the pipe flanges to be spread apart to extract the valve. While the valve itself is lightweight and easy to handle, this process can disturb a significant section of the pipeline. In contrast, a flanged valve can often be removed by unbolting just its own flanges, leaving the adjacent piping undisturbed.
Here’s the deal: The physical actions for maintenance differ significantly:
- Wafer Valve: Loosen all through-bolts and spread the pipes.
- Flanged Valve: Unbolt the valve’s flanges from the pipe flanges.
- This makes flanged valves easier to service in certain configurations, especially for in-line repairs.
System Downtime Considerations
Because removing a wafer valve often requires de-pressurizing and potentially draining a larger portion of the system, it can lead to longer downtime. A flanged valve allows for better isolation, meaning maintenance can sometimes be performed more quickly with less impact on the overall system. This is a crucial consideration in production environments where every minute of downtime costs money.
Now, consider this: If a valve is in a critical line that cannot be shut down for long, the slightly more complex but less disruptive maintenance of a flanged valve might be preferable.
Maintenance Ease vs. System Impact
There is a clear trade-off between the physical ease of handling the valve and the impact of its removal on the pipeline. A wafer valve is simple to lift and replace, but the process of getting it in and out can be disruptive. A flanged valve is heavier and more cumbersome, but its removal is more localized and less impactful on the surrounding system.
Key Takeaway: A ball valve wafer type is physically easier to handle during replacement, but a flanged valve may cause less disruption to the overall piping system, making it superior for applications requiring frequent, isolated maintenance.
| Maintenance Aspect | Ball Valve Wafer Type | Flanged Ball Valve |
|---|---|---|
| Removal Process | Requires spreading pipes | Localized unbolting |
| System Isolation | Poor | Good |
| Downtime Impact | Potentially higher | Potentially lower |
This summary illustrates that the “easiest” valve to maintain depends on whether you prioritize handling the component or minimizing system disruption.
Conclusion
You now have a clear framework to confidently choose between a wafer and a flanged ball valve, balancing space, cost, and performance without the guesswork. This decision is no longer a gamble but a strategic choice based on your project’s unique needs.
At RUITO, we understand that the right valve is more than just a component; it’s a guarantee of your system’s integrity. With 20 years of manufacturing experience, our technical team is ready to provide expert selection advice, custom solutions like PTFE-lined valves for corrosive media, and rapid delivery to keep your project on track. We are fully certified to meet DIN, EN, ISO, and other international standards.
Trust RUITO to be your partner in building reliable and efficient fluid control systems, ensuring your project’s success from specification to operation.
FAQ
Q1: Can I use a wafer ball valve for a high-pressure system?
A: Generally, no. Standard wafer ball valves are best for low-to-medium pressure applications. For high-pressure or high-temperature systems, a flanged ball valve is the safer, more reliable choice due to its robust, integral flange connection.
Q2: How do I know if I need a wafer or flanged valve?
A: Use this simple rule: if space and budget are your main constraints and the system operates under moderate conditions, a wafer valve is likely suitable. If performance, safety, and reliability in harsh conditions (high pressure/temp) are paramount, you must choose a flanged valve.
Q3: Is maintenance easier for wafer ball valves?
A: It’s a trade-off. The valve itself is lighter and easier to handle. However, replacing it often requires disassembling a larger section of the pipeline, which can increase system downtime compared to a flanged valve that can be more easily isolated.
Q4: What if I need a valve for a corrosive environment?
A: Both types can be used, but the material is key. RUITO offers valves in stainless steel (304/316L) and can provide custom-lined options, such as a PTFE-lined ball valve wafer type, which offers excellent chemical resistance in a compact design.
Q5: Can RUITO deliver valves quickly for an urgent project?
A: Yes. We maintain a stock of common valve sizes (e.g., DN50-DN300) for rapid dispatch and can initiate production for emergency orders within 72 hours, ensuring your project timelines are met.
