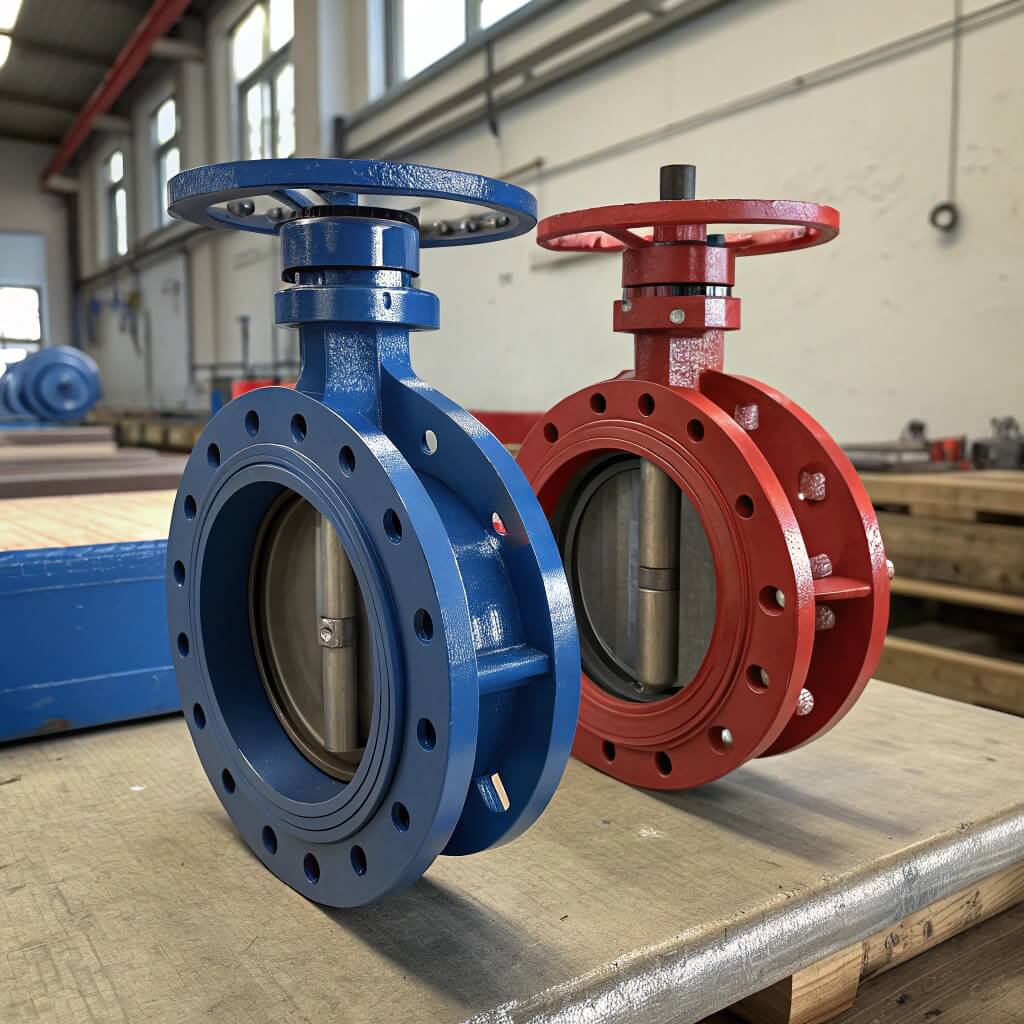

Selecting the right butterfly valve seems straightforward, but choosing between a wafer and a lug style can have significant consequences for your project’s timeline and budget. A small mismatch here isn’t just a minor inconvenience. The wrong choice leads to installation failures, system leaks, and costly maintenance shutdowns, which for a procurement manager or engineer, means project delays, budget overruns, and a damaged professional reputation. This guide cuts through the confusion, providing a clear, side-by-side comparison of wafer and lug butterfly valves, empowering you to make the right choice with confidence and ensure system integrity.
Wafer Butterfly Valve Fundamentals
What is a wafer-style design?
A wafer-style butterfly valve features a simple, compact body that is held in place by compression between two pipe flanges. It has smooth or centered locating holes on the body but lacks its own threaded inserts. This design relies entirely on the tension from long bolts that pass through both flanges and the valve body to secure it within the pipeline.
How is this butterfly valve installed?
Installing a wafer butterfly valve involves “sandwiching” it between two flanges using a single set of long through-bolts or studs. The process requires careful alignment to ensure the valve disc can open and close without striking the inner diameter of the pipes.
Here’s the deal: precise centering is non-negotiable for a successful installation.
- First, you must spread the flanges apart to fit the valve.
- Next, you carefully place the valve and gaskets between the flanges.
- Finally, you insert and incrementally tighten the bolts in a star pattern.
Wafer butterfly valve key takeaways.
The primary appeal of a wafer valve is its economic and lightweight construction, making it an excellent choice for general-purpose applications where the valve will not be used for isolation. Its design simplicity translates directly to lower initial costs and reduced structural support needs for your piping system.
Key Takeaway: The wafer butterfly valve is a cost-effective and lightweight solution for systems that do not require end-of-line service. Its installation relies on compression and precise alignment, making it ideal for straightforward, bidirectional flow control applications where the line can be fully shut down for maintenance.
| Feature | Description |
|---|---|
| Design Principle | Held by compression between two pipe flanges. |
| Installation | Requires long through-bolts and careful alignment. |
| Primary Advantage | Lower cost and lighter weight. |
| Key Limitation | Not suitable for end-of-line service. |
Lug Butterfly Valve Essentials
What defines a lug-style design?
A lug-style butterfly valve is characterized by threaded inserts, or “lugs,” that are cast into the valve body. These lugs match the bolt pattern of the pipe flanges, allowing the valve to be directly bolted to each flange independently. This robust design essentially makes the valve an integrated component of the piping system.
How does lug valve installation work?
Installation of a lug butterfly valve involves two separate sets of bolts, one for each flange, that thread directly into the valve’s lugs. This method provides a secure, self-centering connection and offers significant advantages for certain applications.
What does this mean for you? This design gives you the ability to perform maintenance on one side of the line.
- Bolts can be inserted from either side of the valve.
- The valve can be attached to just one flange, leaving the other side open.
- This design is inherently stronger and more resistant to vibration.
Lug butterfly valve key takeaways.
The defining feature of a lug butterfly valve is its suitability for dead-end or end-of-line service. Because it can be bolted to a single flange, you can remove the downstream piping for maintenance or replacement while the valve holds back pressure from the upstream side.
Key Takeaway: The lug butterfly valve is the definitive choice for applications requiring system isolation or end-of-line service. While heavier and more expensive than a wafer valve, its bolted design provides superior strength and critical maintenance flexibility that is essential in many industrial, chemical, and water treatment systems.
| Feature | Description |
|---|---|
| Design Principle | Threaded inserts (lugs) for direct bolting to flanges. |
| Installation | Uses two sets of bolts; self-centering. |
| Primary Advantage | Suitable for end-of-line service and system isolation. |
| Key Limitation | Higher cost and heavier weight. |
Butterfly Valve Installation Compared
Alignment and bolt differences.
The most significant installation difference lies in alignment and bolting. Wafer valves demand meticulous centering to prevent the disc from catching on the pipe, whereas lug valves are inherently self-centering due to the lugs aligning with flange holes. Wafer valves use fewer, but longer, through-bolts, while lug valves use twice as many shorter bolts.
Which butterfly valve is faster to install?
A wafer butterfly valve is often faster to install in ideal conditions, as it involves handling fewer bolts and simply positioning the valve between flanges. However, this speed can be negated if alignment issues arise, requiring adjustments that consume time.
But there’s a catch: a lug valve installation, though involving more bolts, is often more predictable.
- Wafer: Faster if alignment is perfect on the first try.
- Lug: More consistent installation time, less prone to alignment errors.
- Labor: Unskilled labor may struggle more with wafer alignment.
Installation key takeaways.
While wafer valves can offer a quicker installation, lug valves provide a more foolproof and secure connection. The choice often comes down to balancing the need for speed against the need for precision and robustness, especially in systems prone to vibration or misalignment.
Key Takeaway: Wafer valves offer potential speed advantages in installation but require high precision, while lug valves provide a more robust, self-aligning, and predictable process. The decision should be based on your project’s tolerance for error and the skill level of the installation team, not just the perceived speed.
| Factor | Wafer Butterfly Valve | Lug Butterfly Valve |
|---|---|---|
| Alignment | Manual centering required; high precision needed. | Self-centering via lugs; less error-prone. |
| Bolts | One set of long through-bolts. | Two sets of shorter bolts. |
| Speed | Potentially faster, but risky if misaligned. | More consistent and predictable timing. |
| Security | Relies on bolt tension and compression. | Direct, secure connection to each flange. |
Butterfly Valve Maintenance Impact
Why lug valves are for end-of-line service.
Lug valves are designed for end-of-line service because they can be bolted securely to a single pipe flange, functioning like a cap to hold back pressure. This allows you to safely remove the downstream piping for repair, replacement, or inspection without shutting down the entire system. This capability is critical in applications like pump outlets or tank connections.
How does wafer design affect pipe repairs?
A wafer butterfly valve cannot be used for isolation, as it depends on the compressive force from flanges on both sides. To perform maintenance on a section of pipe connected to a wafer valve, the entire line segment must be shut down, drained, and depressurized.
Here’s the bottom line: this limitation can lead to significant operational downtime.
- Lug Valve Maintenance: Isolate one side, work on the other. System stays partially operational.
- Wafer Valve Maintenance: Full system shutdown required to remove the valve or adjacent pipe.
- Downtime: Lug valves dramatically reduce downtime in segmented systems.
Maintenance key takeaways.
The choice between wafer and lug styles has a profound impact on your long-term maintenance strategy and operational costs. A lug valve offers surgical precision in system maintenance, while a wafer valve necessitates a complete system shutdown.
Key Takeaway: For any system where uptime is critical and the ability to isolate sections for maintenance is needed, a lug butterfly valve is the only appropriate choice. While wafer valves are excellent for general use, their maintenance limitations make them unsuitable for end-of-line service or applications requiring frequent section repairs.
| Attribute | Wafer Butterfly Valve | Lug Butterfly Valve |
|---|---|---|
| End-of-Line Service | Not suitable; unsafe. | Yes, it is the primary design purpose. |
| System Isolation | No, requires full system shutdown. | Yes, can isolate upstream or downstream. |
| Maintenance Downtime | High; entire line segment must be drained. | Low; only the affected section needs isolation. |
| Ideal Use Case | Inline flow control where full shutdown is acceptable. | Pump outlets, tank connections, frequent maintenance points. |
Cost & Weight of Each Butterfly Valve
Analyzing the initial purchase costs.
From a procurement perspective, the initial cost is a major differentiator. Wafer butterfly valves are significantly less expensive than their lug-style counterparts of the same size and material. This is due to a simpler manufacturing process and the use of less material in the valve body.
Comparing weight and structural needs.
Wafer valves are also considerably lighter than lug valves. The reduced mass not only makes them easier to handle during installation but also lessens the load on the piping system.
You might be wondering: how much difference does this make?
- Material: Lug bodies require more metal to accommodate the threaded inserts.
- Support: Lighter wafer valves may reduce the need for extensive pipe hangers and supports.
- Shipping: Lower weight translates to reduced freight costs, especially for large-quantity orders.
Cost and weight key takeaways.
When budget and structural load are the primary drivers, the wafer butterfly valve presents a clear advantage. However, this initial saving must be weighed against the potential long-term costs associated with maintenance downtime if the application truly requires a lug valve.
Key Takeaway: The wafer butterfly valve is the undisputed leader in terms of lower initial cost and weight, reducing both purchase price and structural requirements. However, this advantage is only realized if the application does not require the maintenance flexibility of a lug valve; otherwise, the initial savings can be quickly erased by higher operational costs.
| Metric | Wafer Butterfly Valve | Lug Butterfly Valve |
|---|---|---|
| Initial Cost | Lower | Higher |
| Body Material | Less material required. | More material for lugs. |
| Weight | Lighter | Heavier |
| Structural Impact | Reduced load on piping and supports. | Increased load, may require more support. |
Picking the Right Butterfly Valve Type
When should you choose a wafer valve?
You should specify a wafer butterfly valve for general-purpose, bidirectional flow control applications where cost is a primary consideration and end-of-line service is not required. They are an excellent choice for systems where the valve will remain permanently installed between two flanges and the entire line can be shut down for maintenance. Common applications include HVAC systems, water distribution, and various industrial processes.
When is a lug butterfly valve required?
A lug butterfly valve is mandatory for any application that requires end-of-line service or the ability to isolate equipment. This is non-negotiable for safety and operational efficiency in certain contexts.
This is where it gets interesting: the decision often comes down to risk management.

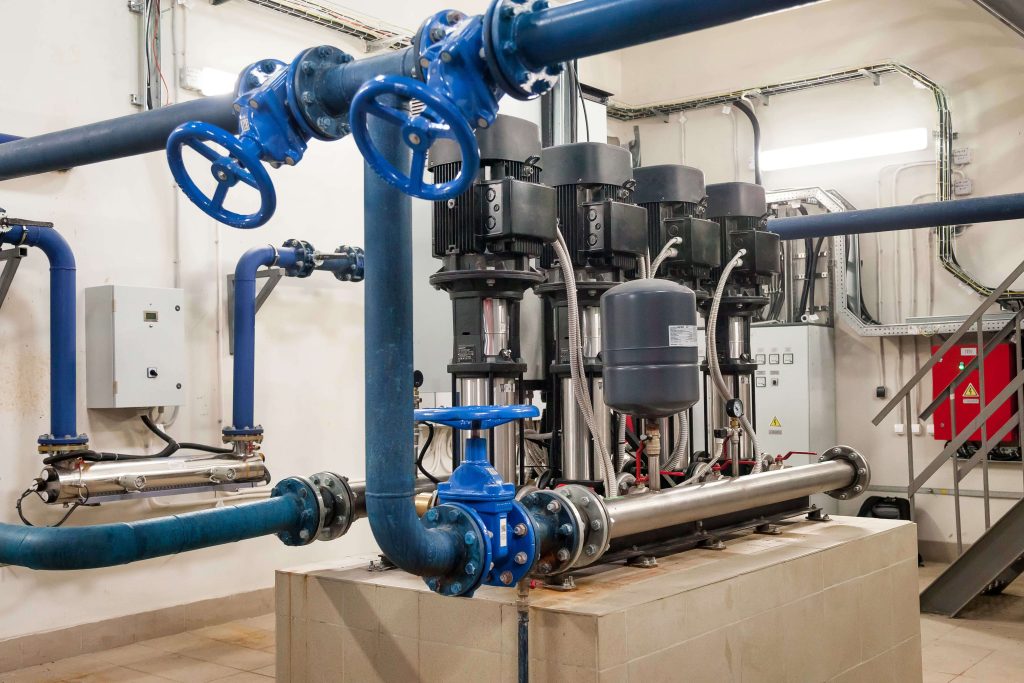

- Pump and Tank Isolation: Use a lug valve to allow for pump or tank removal without draining the system.
- Toxic or Corrosive Media: A lug valve provides a more secure connection for hazardous applications.
- High-Vibration Systems: The bolted design of a lug valve offers superior stability.
Selection criteria key takeaways.
Ultimately, selecting the right butterfly valve is not about which is “better,” but which is correct for the job. Misapplying a wafer valve in an end-of-line scenario is a critical safety and operational mistake that must be avoided.
Key Takeaway: Your choice must be dictated by the application’s functional requirements. Choose a wafer valve for cost-sensitive, inline applications where full system shutdown is feasible for maintenance. Mandate a lug butterfly valve for any end-of-line service, equipment isolation points, or high-security systems where maintenance flexibility and safety are paramount.
| Application Scenario | Recommended Valve | Rationale |
|---|---|---|
| General Water Distribution | Wafer Butterfly Valve | Cost-effective; end-of-line service not needed. |
| Pump Discharge/Isolation | Lug Butterfly Valve | Allows pump maintenance without draining the system. |
| HVAC & Air Handling | Wafer Butterfly Valve | Lightweight and economical for inline flow control. |
| Chemical Processing (End-of-Pipe) | Lug Butterfly Valve | Required for safety and isolation of hazardous media. |
Conclusion
Choosing between a wafer and lug butterfly valve is a critical decision that directly impacts installation, maintenance, and system reliability. This guide has shown that the choice depends entirely on your application’s specific needs, especially concerning end-of-line service and maintenance requirements. Making the right selection upfront prevents costly downtime, ensures operational safety, and protects the integrity of your entire fluid control system.
At RUITO, we manufacture both high-reliability wafer and lug butterfly valves that meet stringent international standards like DIN and EN. As a trusted OEM/ODM partner with 20 years of factory experience, our engineering team provides expert selection advice and customized solutions for your project. Our commitment is to be your most reliable partner in fluid control, delivering dependable valve solutions that ensure the success and safety of your global projects.
FAQ
Q1: Can I use a wafer butterfly valve for end-of-line service?
A: No, it is not recommended. Wafer valves rely on the compression between two pipe flanges for support and sealing. Using them at the end of a line creates a significant safety risk, as there is no downstream flange to secure the valve.
Q2: How do I know if I need a lug or wafer butterfly valve?
A: If your application requires the ability to isolate one side of the line for maintenance while the other remains in service (end-of-line capability), you must use a lug valve. For general applications where the valve will always be installed between two flanges, a wafer valve is a more economical choice.
Q3: Is one butterfly valve type better for high pressure?
A: Both types are available in various pressure ratings (e.g., PN10, PN16, PN25). However, the full-bolting pattern of a lug valve can provide a more secure and stable connection in some high-pressure or high-vibration systems. Always check the valve’s specific pressure rating.
Q4: What happens if I install a wafer valve incorrectly?
A: Improper alignment is the most common error. It can damage the valve seat, cause leaks, and create uneven stress on the valve body. It is critical to use alignment tools and ensure the valve is perfectly centered before tightening the flange bolts.
Q5: Can RUITO help me choose the right valve for my specs?
A: Yes. Our technical team can analyze your project requirements—including pressure, temperature, media, and application type—to recommend the ideal butterfly valve. We provide full technical documentation and support to ensure you get a reliable, long-lasting solution.
