You’ve designed a fluid control system, but constant leaks and poor flow control are causing costly downtime and operational headaches. This isn’t just an annoyance; it’s a direct hit to your efficiency, budget, and project deadlines. Choosing the wrong valve can cascade into system failure, wasted resources, and safety risks. This guide cuts through the confusion, breaking down the core differences between solenoid and butterfly valves so you can select the right component for your application with confidence every time.

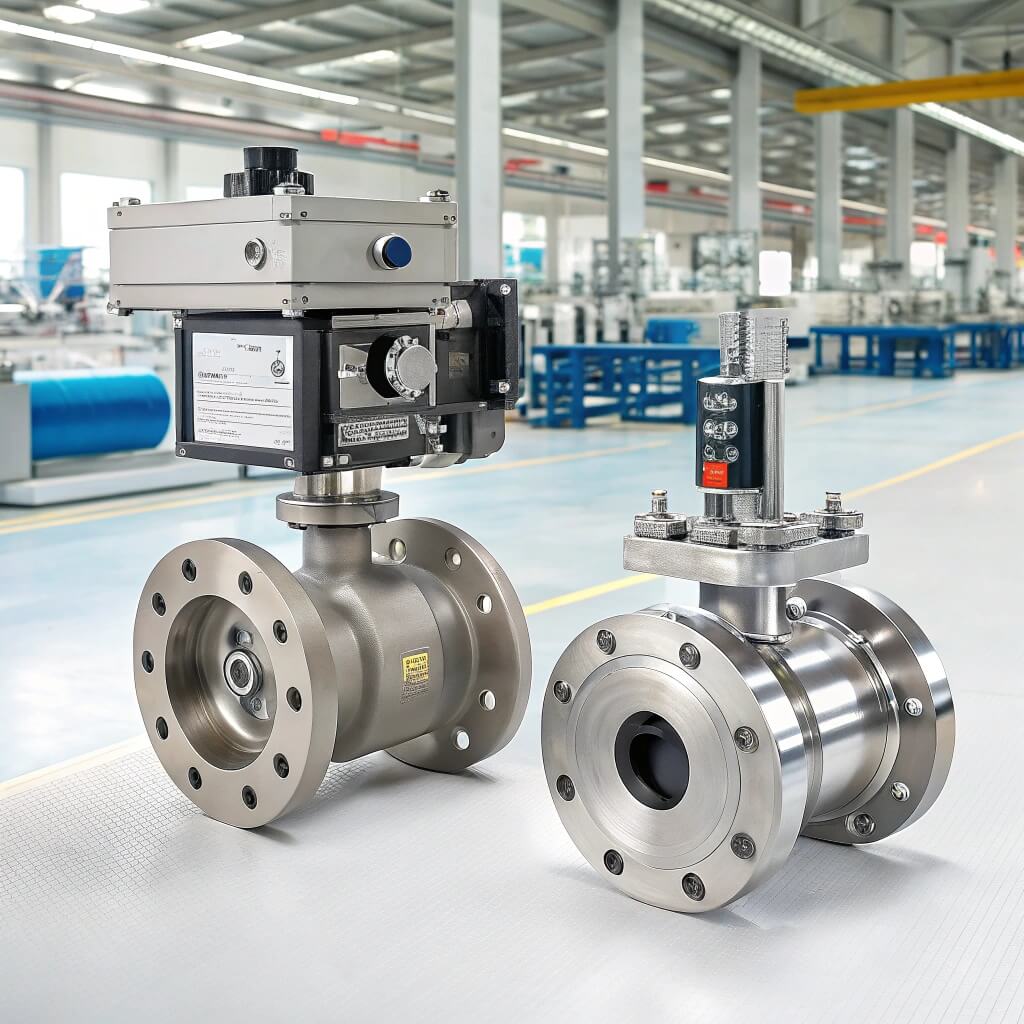

Core Function of a Butterfly Valve vs. Solenoid
Valves are not one-size-fits-all, and their core function is the first major point of difference. The fundamental operational distinction is that solenoid valves are typically binary on/off devices, while a butterfly valve can throttle or regulate flow. This difference in capability dictates where each valve excels in your system.
What is a solenoid valve’s mechanism?
This valve uses an electromagnetic coil to move a plunger, providing instant on/off action. When you apply current, the magnetic field lifts the plunger, opening the valve; when you cut the power, it shuts. Here’s how it works for your automated processes.
- Electromagnetic coil (solenoid)
- Plunger or piston
- Valve body and orifice
How does a butterfly valve control flow?
A butterfly valve controls flow with a disc mounted on a rotating stem in the passageway. A quarter-turn of the stem moves the disc from fully closed to fully open, allowing for precise regulation of flow rates. But what does that mean for you?
- Central disc
- Rotational stem/shaft
- Valve seat for sealing
On/Off vs. Throttling: Key Differences
This contrast in function is the most critical distinction you need to consider. Solenoid valves offer rapid shutoff, making them ideal for emergency stops, while butterfly valves provide the ability to modulate the flow rate anywhere between 0% and 100%. So, what’s the bottom line?
- On/Off: Best for automated sequences and quick shutoffs.
- Throttling: Necessary for balancing systems and controlling output precisely.
Key Takeaway: Solenoid valves excel at rapid, automated on/off control, while butterfly valves offer superior flow modulation (throttling), making them more versatile for regulating flow rates in your system.
| Feature | Solenoid Valve | Butterfly Valve |
|---|---|---|
| Primary Function | On/Off Control | Throttling & On/Off |
| Control Method | Electromagnetic Actuation | Rotational Disc |
| Flow Regulation | Poor / Not Designed For | Excellent |
This functional difference is the primary driver for choosing one valve over the other for your specific control needs.
Actuation Methods of a Butterfly Valve
Actuation is how a valve opens or closes, and the power source is a major differentiator between these two valve types. While a solenoid valve is defined by its electrical actuation, a butterfly valve offers far more flexibility. This choice impacts control speed, power requirements, and your system’s integration.
The solenoid valve’s electromagnetic power
Solenoid valves are exclusively powered by electricity, which creates the magnetic field that operates the valve. This design makes them perfect for integration into automated electrical control systems like PLCs. You might be wondering about the typical power needs.
- AC or DC voltage options
- Low power consumption for continuous duty
- Requires a wired electrical connection
Manual vs. Automated Butterfly Valve
Unlike solenoids, you have diverse actuation options for a butterfly valve to suit your specific needs. These range from simple manual levers for local control to sophisticated automated actuators for remote operation. Now, let’s get to the good part.
- Manual: Hand lever or gear operator.
- Pneumatic: Air-powered actuator for fast, reliable automation.
- Electric: Motorized actuator for precise positioning.
Which actuation method is faster?
When speed is critical, the solenoid valve has a clear edge with its near-instantaneous response time. A butterfly valve’s actuation speed depends on its operator but is generally slower and more controlled. This is where it gets interesting.
- Solenoid: Milliseconds to open/close.
- Pneumatic Butterfly Valve: 1-5 seconds.
- Electric Butterfly Valve: 5-30+ seconds.
Key Takeaway: Solenoid valves are defined by their fast, electrical actuation. Butterfly valves offer more flexibility with manual, pneumatic, or electric options to suit various operational needs and power availability you may have on site.
| Aspect | Solenoid Valve | Butterfly Valve |
|---|---|---|
| Actuation Source | Always Electric | Manual, Electric, Pneumatic |
| Speed | Instantaneous | Fast to Moderate |
| Control Type | Automated Only | Manual or Automated |
Your choice of actuation directly influences both the speed of your system and its compatibility with existing power sources.
Sizing and Flow: The Butterfly Valve Advantage
Pipe diameter and flow capacity (often measured as Cv, or flow coefficient) are critical factors in valve selection. This is a primary point of divergence between the two valve types. One is built for small, precise applications, while the other—the butterfly valve—excels in large-scale flow management.
Solenoid valves for smaller pipelines
Solenoid valves are typically designed for smaller pipe diameters, usually under 2 inches. Their internal plunger mechanism becomes impractical and costly to scale up for larger lines you might be working with. But here’s the catch.
- Common sizes: 1/8″ to 2″
- Ideal for instrument lines and small process feeds
- Flow path can be restrictive
Why use a butterfly valve for large pipes?
The simple, streamlined design of a butterfly valve makes it the superior choice for large-diameter applications. The thin disc presents minimal obstruction to flow, making it efficient and cost-effective to produce in large sizes for your project. Want to know the secret?
- Cost-effective in sizes from 2″ to 48″ and beyond.
- Lightweight and compact design.
- High flow capacity (Cv).
Comparing pressure drop across valves
A fully open butterfly valve creates a very low pressure drop because the thin disc is parallel to the flow. In contrast, many solenoid valves have a more tortuous internal path, leading to higher pressure loss that can affect your system. Let’s dig a little deeper.
- Butterfly Valve: Minimal pressure drop, maximizing system efficiency.
- Solenoid Valve: Moderate to high pressure drop, which can impact downstream pressure.
Key Takeaway: Butterfly valves are the clear choice for large pipes (over 2 inches) due to their high flow capacity and low pressure drop. Solenoid valves are better suited for smaller lines where you need precise, rapid shutoff.
| Parameter | Solenoid Valve | Butterfly Valve |
|---|---|---|
| Typical Pipe Size | Small (< 2 inches) | Large (> 2 inches) |
| Flow Capacity (Cv) | Lower | High |
| Pressure Drop | Moderate to High | Very Low (when fully open) |
The size of your pipeline is one of the most straightforward indicators of which valve is the appropriate choice.
Ideal Use Cases for a Butterfly Valve
Application is everything when choosing a valve for your system. The right choice depends entirely on the industry, the type of fluid you’re handling, and your operational goals. A standard butterfly valve perfect for a water treatment plant might be entirely unsuitable for a high-purity process line.
When to use a solenoid valve
You should choose a solenoid valve for applications demanding rapid, automated on/off control in clean fluid systems. They are the workhorses of machine automation, pilot lines, and safety shutdown systems. Think about it this way…
- Automated irrigation systems
- Pneumatic control circuits
- Emergency fuel or gas shutoff
Common applications for a butterfly valve
A butterfly valve is your go-to for large-volume fluid handling and flow regulation across many industries. Their versatility makes them a staple in municipal and industrial infrastructure projects you might oversee. The story doesn’t end there.
- Water and wastewater treatment plants
- HVAC and chilled water systems
- Chemical processing and bulk material handling
Handling specific fluid types
When it comes to fluid compatibility, a butterfly valve often provides more options for handling difficult media. Because you can select from various disc and seat materials, they can manage corrosive fluids or even slurries. So, what’s the real story?
- Solenoids: Best for clean gases and liquids.
- Butterfly Valves: Can handle clean fluids, dirty water, slurries, and chemicals (with proper material selection).
Key Takeaway: Choose a solenoid valve for speed-critical, on/off tasks in clean fluid systems. Opt for a butterfly valve for flow regulation, large-scale applications, or systems handling slurries and corrosive media.
| Application Type | Best Fit: Solenoid Valve | Best Fit: Butterfly Valve |
|---|---|---|
| Control Need | Rapid On/Off | Flow Regulation (Throttling) |
| Fluid Type | Clean Liquids & Gases | Clean, Dirty, & Slurries |
| Industry Focus | Automation, OEM Equipment | Water/Wastewater, HVAC, Industrial |
Matching the valve’s strengths to your application’s demands ensures optimal performance and longevity.
Cost & Maintenance of a Butterfly Valve
Looking beyond the sticker price is crucial; you should consider the Total Cost of Ownership (TCO). This includes the initial purchase price, installation costs, and long-term maintenance requirements. A cheaper valve upfront might end up costing you more in the long run.
Initial cost: solenoid vs. butterfly
For small-diameter lines, a simple solenoid valve is often the cheaper initial purchase. However, as pipe size increases, the cost-effectiveness of a butterfly valve becomes dramatically better. But that’s not the whole picture.
- Small (<2″) solenoid valves are often inexpensive.
- Large butterfly valves are significantly cheaper than large solenoid valves.
- Actuator type also heavily influences your butterfly valve cost.
Long-term butterfly valve maintenance
Here is where the design differences significantly impact your operating budget. A butterfly valve is designed to be serviceable, with key wear components like seats and seals being easily replaceable in the field. Here’s the deal…
- Butterfly Valve: Replaceable seat and seals extend service life.
- Solenoid Valve: A burnt-out coil often means you must replace the entire valve.
Total cost of ownership comparison
When you factor in repairability and suitability for large applications, the butterfly valve often wins on TCO. The ability to service the valve instead of replacing it provides significant savings over your system’s lifetime. What does this all mean?
- Solenoid TCO: Lower initial cost for small sizes, but higher replacement costs.
- Butterfly Valve TCO: Higher initial cost for small sizes, but better scalability and lower long-term maintenance costs.
Key Takeaway: While small solenoid valves can have a lower initial cost, butterfly valves often provide a better Total Cost of Ownership for medium-to-large applications due to their cost-effectiveness at scale and easier serviceability.
| Cost Factor | Solenoid Valve | Butterfly Valve |
|---|---|---|
| Initial Cost (Small) | Generally Lower | Generally Higher |
| Initial Cost (Large) | Very High / Not Available | Cost-Effective |
| Repairability | Often Requires Full Replacement | Seats/Seals are Replaceable |
Evaluating the total cost of ownership rather than just the purchase price leads to more economically sound decisions for your projects.
Choosing: Solenoid vs. Butterfly Valve
Now that you understand the key differences, it’s time to make a decision for your project. This final step is about synthesizing the information and asking the right questions. This will help you select the ideal valve, whether it’s a solenoid or butterfly valve, with confidence.
A quick decision guide
To make the right choice, you need to prioritize your system’s most critical requirement. Is it speed, flow control, pipe size, or budget that matters most to you? Let’s break it down.
- Need instant on/off? → Solenoid Valve.
- Need to regulate flow? → Butterfly Valve.
- Is the pipe larger than 2 inches? → Butterfly Valve.
Can you use both in one system?
Absolutely, and it’s a common and effective engineering practice. You can use both valves in a single system, with each playing to its strengths to create more sophisticated control. The answer might surprise you.
- A solenoid valve can act as a pilot for a large pneumatic butterfly valve.
- A solenoid can be used for an emergency override on a main line.
- Use a butterfly valve for main flow and a small solenoid for a dosing line.
Making the final choice for your project
Your final decision should circle back to the core trade-offs we’ve discussed. Prioritize what you cannot compromise on, whether it’s lightning-fast actuation or the ability to manage massive flow rates. Ready for the final verdict?
- What is my primary control need: on/off or throttling?
- What is my pipe size and flow requirement?
- What are my power source options for actuation?
Key Takeaway: Your choice hinges on your primary requirement. If you need lightning-fast on/off control for small lines, choose a solenoid valve. If you need to regulate flow in larger pipes, the butterfly valve is the superior option.
| Priority | Recommended Valve |
|---|---|
| Speed & Automation | Solenoid Valve |
| Flow Control (Throttling) | Butterfly Valve |
| Large Pipe Diameter (>2″) | Butterfly Valve |
| Low Budget (Small Pipe) | Solenoid Valve |
| Handling Slurries/Solids | Butterfly Valve |
This decision matrix simplifies your choice by aligning your top priority with the best-suited valve type.
Conclusion
You now have a clear framework to differentiate between solenoid and butterfly valves, ensuring you can avoid costly selection errors, improve system efficiency, and prevent operational failures. Don’t leave your project to chance. At [Your Company Name], we provide a comprehensive range of high-performance solenoid and butterfly valves engineered for reliability. Explore our catalog or contact our fluid control experts today for a personalized consultation to find the perfect fit for your system. We are committed to engineering a future where every fluid system operates with absolute precision, efficiency, and unwavering reliability.
Frequently Asked Questions (FAQ)
Q1: Can I use a butterfly valve for high-pressure gas?
A: It depends. While specialized high-performance butterfly valves exist for this, standard models are typically better suited for low-to-medium pressure liquids and gases. Always check the valve’s pressure rating.
Q2: How do I know if my solenoid valve is failing?
A: Common signs include a loud buzzing or humming noise, the valve failing to open or close when energized, or visible fluid leaks from the valve body.
Q3: Is a butterfly valve better for throttling flow?
A: Yes, absolutely. The disc design of a butterfly valve allows for proportional control over the flow rate, which is something most standard solenoid valves cannot do as they are designed for simple on/off service.
Q4: Can I replace a solenoid valve with a butterfly valve?
A: Sometimes, but it requires careful evaluation. You must consider the differences in pipe size, pressure ratings, actuation speed, and control function. It’s not a direct one-to-one replacement as they serve different primary purposes.
Q5: What’s the main benefit of a solenoid valve?
A: Its greatest advantage is speed. Solenoid valves provide nearly instantaneous on/off actuation, making them essential for applications that require rapid cycling or emergency shutdowns.
