You’re on the line for a multi-million dollar project, and every component choice counts. You need a valve for a critical shut-off point, but the options are overwhelming. Picking the wrong one could mean catastrophic leaks, costly system downtime, and a blown budget.
The pressure is immense because a single valve failure can halt an entire production line, leading to days of lost revenue and emergency repair costs that spiral out of control. It’s a small component with a massive impact on your project’s success and your professional reputation.
This is where the ball valve proves its worth. This guide demystifies the entire process, empowering you to select, configure, and deploy the perfect ball valve with confidence. We’ll cover everything from core functions to critical certifications, ensuring you make the right choice every time.

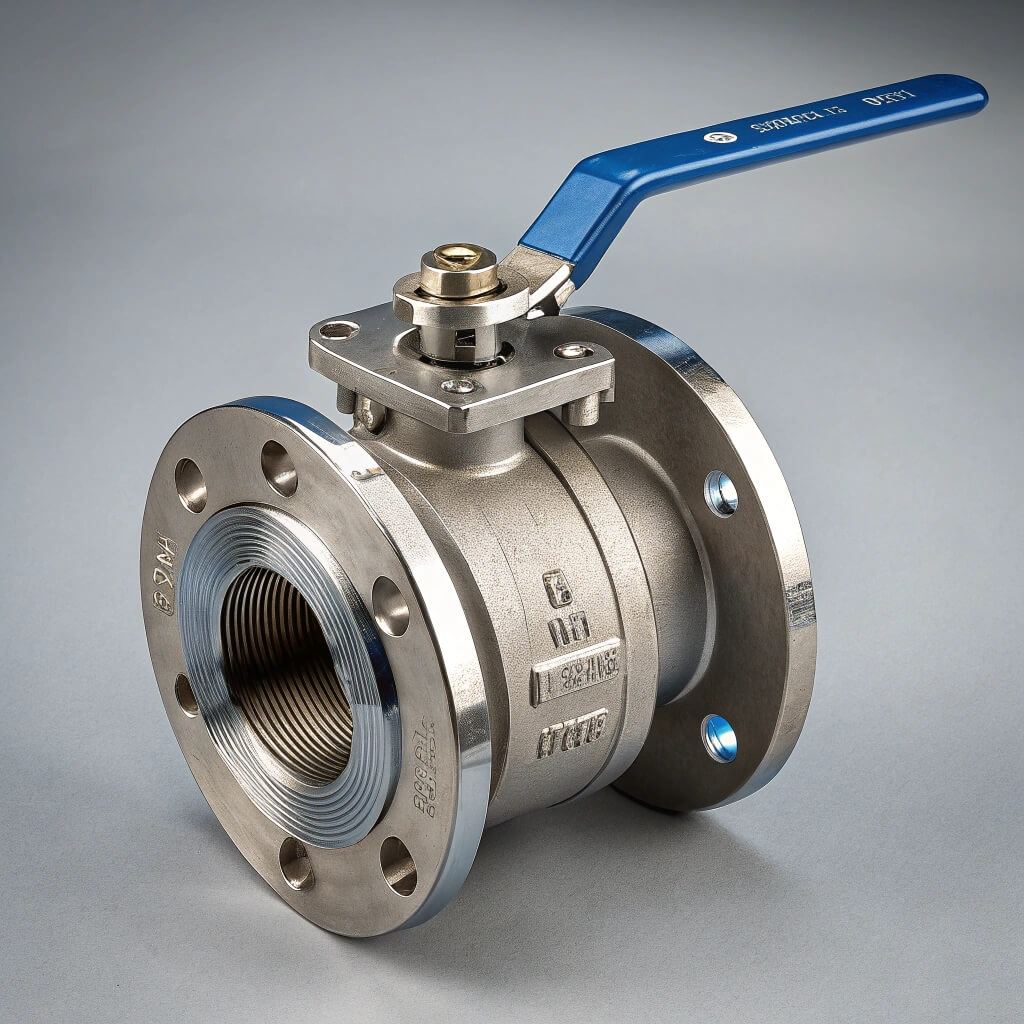

The Core Function of a Ball Valve
The ball valve is a quarter-turn valve that uses a hollow, pivoting ball to control flow through it. Its primary function is to provide reliable on/off control with a tight, bubble-free seal. This simplicity and effectiveness make it a cornerstone of modern fluid control systems.
What is a quarter-turn operation?
A quarter-turn operation means the valve goes from fully open to fully closed with a simple 90-degree turn of the handle or actuator. This allows for rapid shut-off and clear visual indication of the valve’s status. Here’s the deal: this swift action is critical in emergency situations where you need to stop flow immediately.
Key Components of a Ball Valve
Understanding the anatomy of a ball valve helps you appreciate its robust design. The main parts work in unison to provide dependable sealing and operation. These components include:
- Body: The main pressure-containing structure that houses all internal parts.
- Ball: A spherical closure element with a bore (port) through the center.
- Stem: The shaft that connects the actuator to the ball to transmit torque.
- Seats: Soft or metal rings that create a seal between the ball and the body.
Why Choose a Full Bore Ball Valve?
A full bore (or full port) design features a hole through the ball that is the same size as the inner diameter of the pipe. This creates an unobstructed flow path when the valve is open. It minimizes pressure drop and turbulence, making it ideal for systems where flow efficiency is paramount.
Key Takeaway: Choosing a full bore ball valve ensures you get maximum flow capacity and minimal energy loss, which is crucial for maintaining system efficiency and reducing operational costs.
| Feature | Description | Benefit |
|---|---|---|
| Quarter-Turn | 90° rotation for on/off | Rapid shut-off, clear status indication |
| Core Components | Body, ball, stem, seats | Robust design for reliable sealing |
| Full Bore | Bore size equals pipe ID | Unrestricted flow, low pressure drop |
This analysis shows the ball valve’s design is optimized for simple, efficient, and reliable flow isolation.
How to Select the Right Ball Valve
Selecting the appropriate ball valve is crucial for ensuring system longevity, safety, and operational efficiency. Your choice depends on a careful evaluation of the service media, operating conditions, and required performance. Getting this right prevents premature failure and costly replacements.
Material Selection Guide
The valve’s body and trim materials must be compatible with the fluid’s chemical properties, temperature, and pressure. Mismatched materials can lead to corrosion, erosion, and catastrophic failure. Key material choices include:
- Stainless Steel (304/316): Excellent for corrosive media, high-purity applications, and food processing.
- Carbon Steel: A strong, durable choice for high-pressure and high-temperature services in oil and gas.
- Bronze: Highly resistant to corrosion from water and brine, making it ideal for marine applications.
Floating vs. Trunnion Ball Valve
The primary difference lies in how the ball is supported inside the valve body. In a floating design, the ball is held in place by the seats, while a trunnion design supports the ball with a separate shaft. But wait, there’s more: this structural difference makes trunnion valves better suited for high-pressure and large-diameter applications.
Matching Your Ball Valve to Project Specs
Always match the valve’s pressure and temperature ratings (like PN16 or Class 150) to your system’s maximum operating conditions. Consider the connection type—flanged, threaded, or welded—to ensure it fits seamlessly into your pipeline. Proper sizing is key to performance.
Key Takeaway: Aligning the ball valve specifications with your project’s precise needs guarantees safe operation, regulatory compliance, and avoids the unnecessary expense of over-engineering.
| Factor | Consideration | Common Options |
|---|---|---|
| Material | Media compatibility, temp/pressure | Stainless Steel, Carbon Steel, Bronze |
| Design Type | Pressure and size requirements | Floating, Trunnion |
| Specifications | Pressure, temperature, connection | PN/Class ratings, Flanged/Threaded |
This table highlights that a systematic approach to selection ensures the chosen ball valve is perfectly suited for its intended service.
Ball Valve Actuation Methods Explained
How you open and close your ball valve is just as important as the valve itself. Actuation methods range from simple manual operation to sophisticated automated systems. The right choice depends on accessibility, speed requirements, and the need for process integration.
Manual Ball Valve Operation
Manual ball valves are typically operated with a lever for smaller sizes or a gear operator for larger, high-torque valves. The lever provides quick, direct control, with its position clearly indicating if the valve is open or closed. The bottom line is: manual operation is cost-effective and reliable for accessible valves that don’t require frequent cycling.
Pneumatic and Electric Actuation
Automated actuation is used for remote control or integration into a larger process control system. It provides consistent and reliable operation without manual intervention. The two main types are:
- Pneumatic Actuators: Use compressed air to generate torque for very fast cycling speeds, making them ideal for emergency shutdown (ESD) systems.
- Electric Actuators: Use an electric motor to provide precise positioning, making them suitable for modulating services and integration with digital control systems.
When is Automated Actuation Necessary?
You should opt for automated actuation when valves are in remote or hazardous locations, require frequent and rapid cycling, or need to be synchronized with other equipment. Automation is also essential for implementing fail-safe mechanisms, where the valve automatically moves to a preset safe position upon power or signal loss.
Key Takeaway: By choosing automated actuation, you enhance plant safety, improve process efficiency, and reduce the need for manual labor in hard-to-reach or dangerous areas.
| Actuation | Power Source | Best For |
|---|---|---|
| Manual | Human operator | Accessible, infrequent operation |
| Pneumatic | Compressed Air | Rapid cycling, fail-safe systems |
| Electric | Electricity | Remote control, precise positioning |
This comparison demonstrates that the ideal actuation method is determined by balancing cost, speed, and system integration needs.
Critical Ball Valve Body Designs
The body construction of a ball valve dictates its durability, cost, and ease of maintenance. The three main designs—one-piece, two-piece, and three-piece—each offer distinct advantages for different applications. Understanding these differences is key to making a smart long-term investment.
One-Piece vs. Two-Piece Ball Valve
These designs refer to how the valve body is constructed and assembled. Each has trade-offs between cost, leak paths, and serviceability. Here’s a quick comparison:
- One-Piece: A single, cast body with reduced-port construction; it’s inexpensive but typically considered a throwaway valve as it cannot be repaired.
- Two-Piece: Consists of two body pieces that screw together, allowing for disassembly and repair, though the valve must first be removed from the pipeline.
Understanding the Three-Piece Ball Valve
The three-piece design consists of a main body and two end caps that are bolted together. This construction allows the center section containing the ball, stem, and seats to be easily removed for repair or replacement. Think about it this way: you can service the valve’s core components without removing the end caps from the pipeline.
Which Body Design Eases Maintenance?
Without question, the three-piece ball valve is the superior choice for applications where regular maintenance is expected. Its swing-out design dramatically simplifies the process of replacing seals and seats. This significantly reduces system downtime and labor costs over the valve’s lifespan.
Key Takeaway: Investing in a three-piece ball valve translates directly into lower total cost of ownership by making maintenance faster, easier, and less disruptive to your operations.
| Design | Construction | Key Advantage |
|---|---|---|
| One-Piece | Single cast body | Low initial cost, fewer leak paths |
| Two-Piece | Two-part screwed body | Repairable, economical |
| Three-Piece | Bolted body and two end caps | In-line maintenance, lowest downtime |
This breakdown reveals a clear trade-off between initial cost and long-term serviceability across different ball valve body designs.
Common Ball Valve Port Types
The “port” or “bore” refers to the hole through the ball, and its size relative to the pipe diameter has a major impact on flow characteristics. The main types are full port, standard port, and reduced port. Choosing the right one helps balance performance with cost.
Full Port vs. Standard Port
A full port (or full bore) ball valve has a bore diameter equal to the pipe’s inner diameter, offering no flow restriction. A standard port valve typically has a bore that is one pipe size smaller than the valve’s nominal size. What does this mean for you? A full port is best for high-flow applications, while a standard port offers a good balance for many general services.
What is a Reduced Port Ball Valve?
A reduced port ball valve has a bore that is smaller than the pipe’s inner diameter, creating a slight restriction to flow. This design is often more compact and less expensive than a full port valve. Its key characteristics are:
- Higher flow velocity through the valve.
- A predictable, though minor, pressure drop.
- A more economical option where minimal flow restriction is acceptable.
How Port Type Affects Flow Rate
The port type directly influences the valve’s flow coefficient (Cv), which measures its flow capacity. A full port valve has a higher Cv, resulting in minimal pressure drop and maximum flow rate. A reduced port valve has a lower Cv, which is perfectly acceptable for many applications where a slight energy loss is not a concern.
Key Takeaway: By selecting the correct port type for your ball valve, you can optimize your system’s hydraulic performance while managing equipment costs effectively.
| Port Type | Bore Diameter vs. Pipe ID | Flow Characteristic |
|---|---|---|
| Full Port | Same size | Unrestricted, highest Cv |
| Standard Port | One size smaller | Minor restriction |
| Reduced Port | Smaller | Noticeable restriction, lower Cv |
This comparison clarifies how the ball valve’s port design directly correlates to its flow performance and cost-effectiveness.
Ball Valve Standards and Certs
Standards and certifications are not just paperwork; they are your assurance of a ball valve’s quality, safety, and performance. Compliance with recognized international standards ensures your equipment meets stringent design, manufacturing, and testing criteria. This is non-negotiable for critical applications.
Key International Standards (API, ASME)
Reputable manufacturers adhere to established industry standards to guarantee interoperability and safety. These codes govern everything from wall thickness to material specifications and pressure testing protocols. Key standards for ball valves include:
- API 608: The primary standard for metal ball valves with flanged, threaded, and welding ends.
- ASME B16.34: Defines pressure-temperature ratings, dimensions, and tolerances for valves.
- API 6D: Specifies requirements for pipeline valves used in the petroleum and natural gas industries.
Why are Certifications like WRAS crucial?
Certifications provide third-party validation that a product is safe and suitable for a specific application. For example, a WRAS (Water Regulations Advisory Scheme) approval is mandatory for any component that will come into contact with public drinking water in the UK. Here’s a simple breakdown: certifications like CE, ISO 9001, and WRAS are your proof of quality and fitness for purpose.
Ensuring Your Ball Valve is Compliant
Always verify that your supplier can provide the necessary documentation, including material test reports (MTRs) and certificates of conformity. The valve itself should also have permanent markings indicating its size, pressure class, material, and manufacturer. This traceability is your safeguard against substandard products.
Key Takeaway: Specifying a certified ball valve from a compliant manufacturer mitigates project risk, ensures regulatory approval, and protects the long-term integrity of your entire system.
| Item | Purpose | Examples |
|---|---|---|
| Standards | Define design and manufacturing rules | API 608, ASME B16.34 |
| Certifications | Verify fitness for specific use | CE, WRAS, ISO 9001 |
| Documentation | Provides proof of compliance | MTRs, Certificates of Conformity |
This summary underscores that adherence to standards and certifications is the fundamental basis for trust and reliability in ball valve procurement.
Conclusion
Navigating the complexities of ball valve selection—from materials and actuation to body design and certifications—is critical for project success. You’ve learned how to decode these choices to prevent system failure, minimize maintenance downtime, and ensure compliance. Instead of gambling with unverified suppliers, partner with a proven expert.
With 20 years of manufacturing experience and key certifications like ISO 9001, CE, and WRAS, RUITO delivers the reliability your projects demand. Our commitment is to be the “trusted mid-to-high-end general valve exporter” for global industrial and municipal projects, ensuring every valve we produce meets the highest standards of quality and performance. Don’t leave your critical flow control to chance; contact the RUITO team today for an expert consultation and let us help you specify the perfect valve solution for your next project.
Frequently Asked Questions (FAQ)
- Can I use a ball valve for throttling?
No, it is not recommended. Throttling (partially opening the valve to regulate flow) causes high-velocity fluid to erode the soft seats, leading to premature leakage and failure when you need a tight shut-off. - What’s the best ball valve for corrosive media?
The best choice is a valve made from corrosion-resistant materials. A stainless steel (316/316L) ball valve is a common solution, while a PTFE-lined ball valve offers superior protection for highly aggressive chemicals. - How do I know if my ball valve is open or closed?
Easily, by looking at the handle. When the handle is parallel to the pipe, the valve is open; when it is perpendicular to the pipe, the valve is closed. - What is the typical lifespan of a ball valve?
This varies greatly based on service conditions, media, frequency of use, and material quality. However, a high-quality, properly specified ball valve can last for many years, often exceeding hundreds of thousands of cycles. - Can I repair a leaking ball valve myself?
It depends on the design. Three-piece ball valves are designed for easy in-line repair of seats and seals, but one-piece valves cannot be repaired. While repair is possible for some, it requires the correct parts and expertise to ensure a proper seal, so professional service is often the safest option.
