Handling temperature-sensitive or high-viscosity media like sulfur, asphalt, or chocolate poses a significant process challenge. These substances can solidify or thicken within standard valves, causing blockages that halt your entire operation. A single blockage translates to costly downtime, wasted product, budget overruns, and missed project deadlines, not to mention potential safety hazards. The jacketed ball valve offers an engineered solution by circulating a heating medium through an external jacket, maintaining a consistent temperature to guarantee smooth flow and eliminate the risk of solidification.

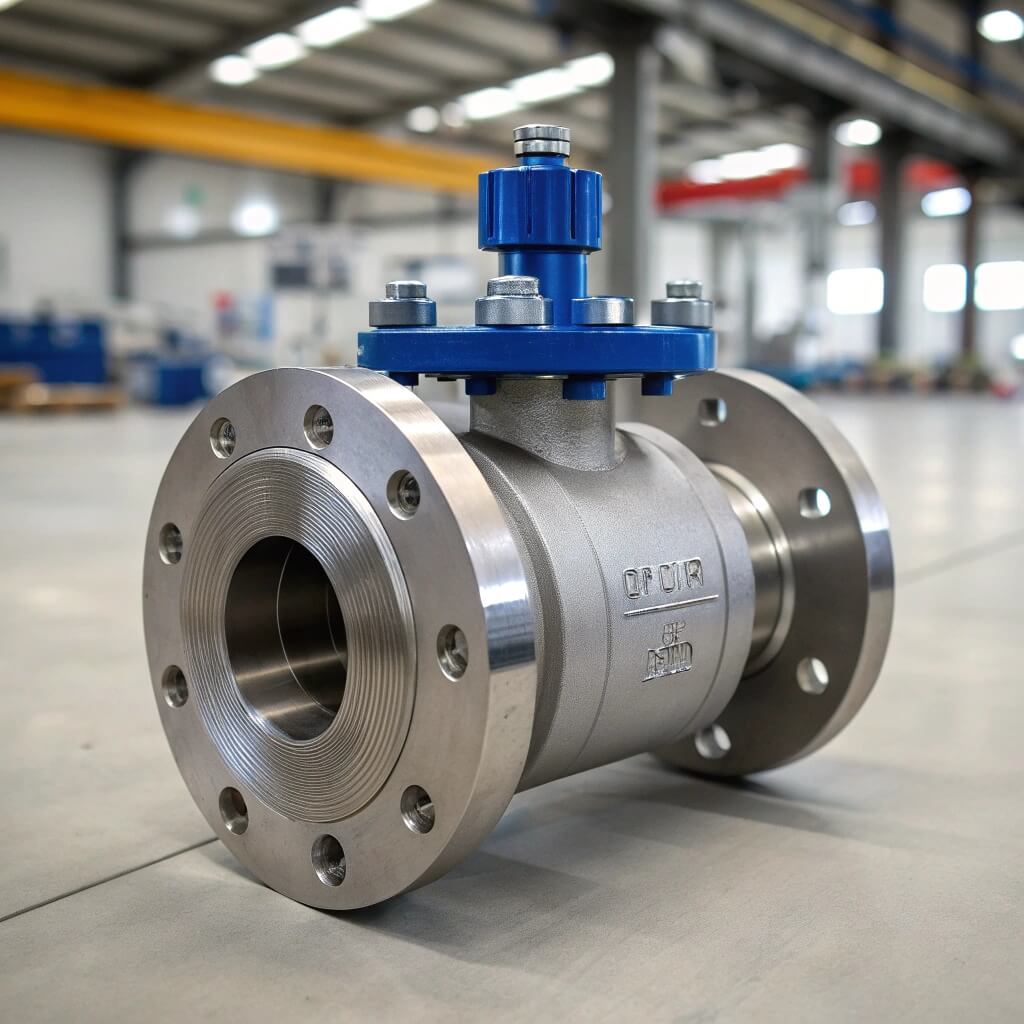

How a jacketed ball valve works
A jacketed ball valve is a specialized component designed for precise temperature management in your flow control system. Its external shell, or jacket, creates a cavity around the valve body for thermal fluid circulation. This design ensures the internal process media remains at the optimal temperature and viscosity.
What is the purpose of the heating jacket?
The primary purpose of the jacket is to apply indirect heat to the valve body, preventing the process media from solidifying or becoming too viscous to flow. By circulating a thermal fluid, you maintain a consistent temperature profile across the valve, eliminating cold spots where blockages could form. This is especially useful for media that crystallizes or hardens at ambient temperatures.
How does the ball mechanism ensure flow?
The ball mechanism provides a straight-through, unobstructed flow path when open, minimizing pressure drop. The jacket’s function is to keep this entire path, including the area around the ball and seats, warm enough so the media never gets a chance to thicken. Here’s the bottom line: while the ball provides the on/off control, the jacket ensures the conditions for that control are always met.
What media flows through the jacket?
The selection of media for the jacket depends entirely on the temperature your process requires. Common choices include low-pressure steam for consistent high heat or hot oil for more precise temperature regulation without the pressure concerns of steam. For cooling applications, you might use chilled water or glycol solutions.
Key Takeaway: The jacketed valve’s design is a dual-system approach where the outer jacket controls the temperature environment, allowing the inner ball valve to perform its mechanical function without being impeded by solidified media.
| Jacket Medium | Typical Temperature Range | Common Use Case |
|---|---|---|
| Steam | 100°C to 250°C (212°F to 482°F) | High-temperature applications like asphalt or sulfur |
| Hot Oil | 50°C to 350°C (122°F to 662°F) | Precise temperature control for sensitive polymers |
| Chilled Water | 5°C to 15°C (41°F to 59°F) | Cooling applications to prevent reactions |
This table shows that the choice of jacket medium is directly tied to the specific heating or cooling demands of your process fluid.
Benefits of a jacketed ball valve
Integrating a jacketed ball valve into your system moves beyond simple flow control; it becomes a tool for process assurance and reliability. This specialized valve offers tangible benefits that protect your product, reduce operational costs, and enhance plant safety. The investment pays dividends by preventing the catastrophic failures associated with media solidification.
Does it prevent media solidification?
Yes, its core function is to maintain the process media’s temperature above its solidification or crystallization point. By creating a thermal barrier, the valve ensures the fluid remains in a liquid state, allowing for continuous, uninterrupted flow. What’s the catch? You must ensure your heating medium is properly regulated, but when it is, blockages become a thing of the past.
How does it lower maintenance costs?
These valves dramatically reduce the need for costly and time-consuming maintenance interventions. By preventing media from hardening, you eliminate the need for manual line clearing, high-pressure flushing, or component replacement due to blockages. This leads to significant savings by:
- Reducing plant downtime for cleaning.
- Minimizing labor costs for maintenance crews.
- Extending the life of valve components.
- Decreasing the need for spare parts inventory.
Can it improve overall process safety?
A solidified plug in a pipeline can lead to dangerous over-pressurization upstream, creating a risk of rupture and hazardous spills. Jacketed valves mitigate this risk by ensuring the line remains open and pressure stays within design limits. This is especially valuable when handling flammable or toxic substances that could pose a severe threat if released.
Key Takeaway: The primary benefits extend beyond simple flow; they encompass major reductions in maintenance-related costs and substantial improvements in operational safety by preventing dangerous blockages.
| Benefit Category | Standard Valve | Jacketed Valve |
|---|---|---|
| Process Uptime | High risk of blockage/downtime | Continuous operation |
| Maintenance | Frequent cleaning, high labor cost | Minimal intervention needed |
| Safety | Risk of over-pressurization | Stable pressure, reduced risk |
The data clearly shows that a jacketed valve provides superior performance in process uptime, maintenance, and safety when handling temperature-sensitive media.

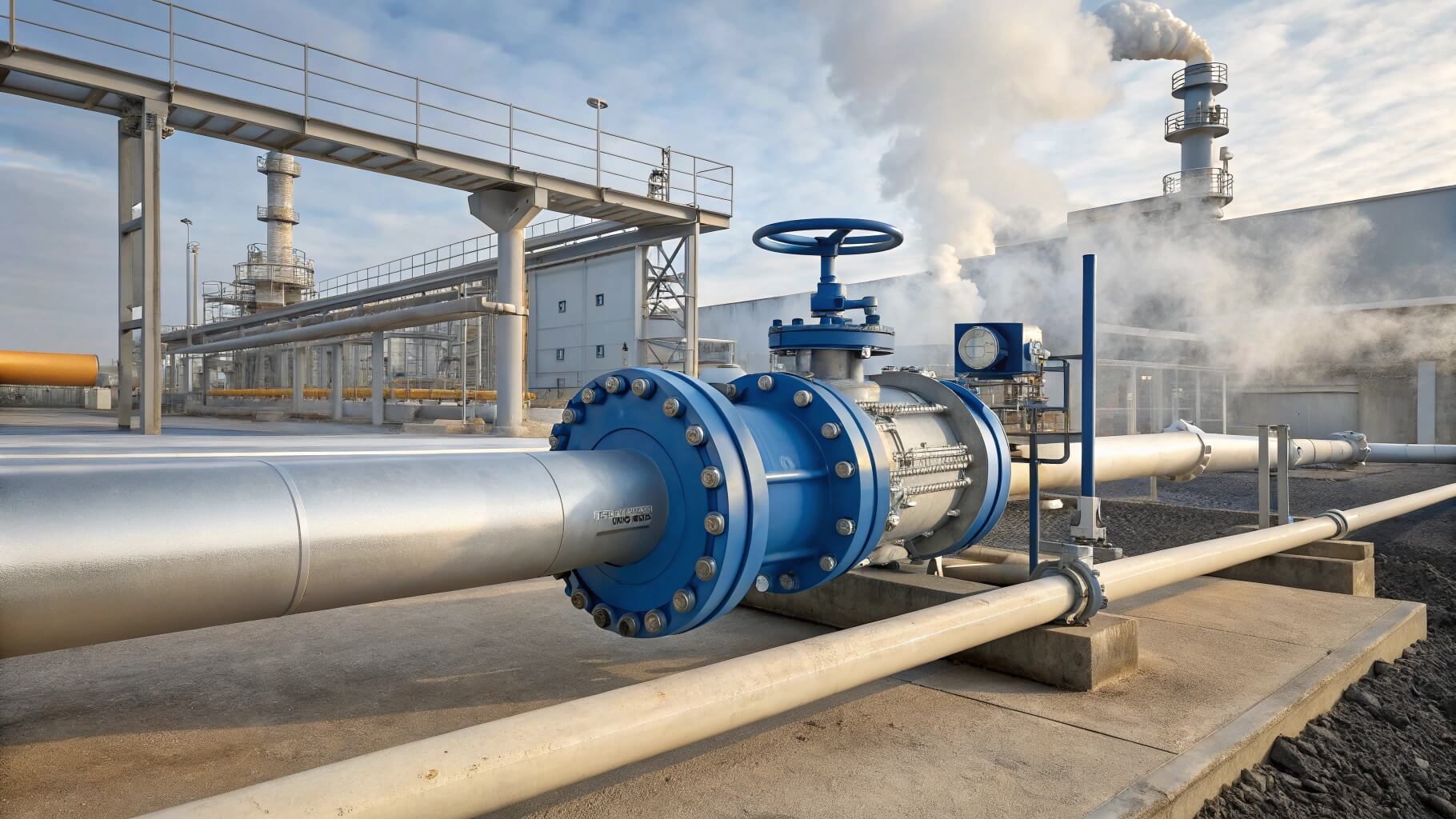

Jacketed ball valve applications
These valves are indispensable in any industry that processes fluids prone to changing viscosity with temperature. Their ability to maintain a stable thermal environment makes them a go-to solution for challenging applications. From food production to chemical processing, their use ensures product quality and process efficiency.
Which industries use these valves?
Jacketed ball valves are specified across a diverse range of sectors where precise temperature control is a necessity. Their robust design makes them suitable for demanding environments and critical processes. Key industries include:
- Chemical: Handling molten sulfur, caprolactam, and polymers.
- Petrochemical: Processing asphalt, bitumen, and heavy oils.
- Food & Beverage: Managing chocolate, syrups, and fats.
- Pharmaceutical: Controlling waxes and other base ingredients.
What media types require heating?
Any fluid that thickens, crystallizes, or solidifies at ambient temperatures is a prime candidate for a jacketed valve system. You are likely dealing with such a medium if it cannot be pumped or moved without an external heat source. But that’s not all; some fluids also require heat to maintain a specific reaction rate or quality standard during processing.
Can it handle high-viscosity fluids?
Yes, they are exceptionally effective at managing high-viscosity fluids. By keeping the fluid warm, the valve reduces its viscosity, making it easier to pump and control. This ensures a smooth, consistent flow rate and prevents strain on pumps and other system components, which would otherwise struggle with thick, sluggish media.
Key Takeaway: Jacketed ball valves are not for every application, but for industries dealing with media that solidifies or has high viscosity, they are an essential process tool.
| Industry | Common Media | Process Goal |
|---|---|---|
| Petrochemical | Asphalt, Bitumen | Prevent solidification |
| Chemical | Molten Sulfur | Maintain liquid state |
| Food & Beverage | Chocolate, Glucose | Ensure flowability, quality |
This table illustrates how different industries use jacketed valves to manage specific media and achieve critical process goals.
Jacketed ball valve vs standard valve
Choosing between a jacketed and a standard ball valve comes down to understanding the nature of your process media. While a standard valve is sufficient for many applications, it becomes a point of failure when temperature is a factor. The design differences are not cosmetic; they are fundamental to the valve’s ability to function under thermal stress.
What are the key design differences?
The most obvious difference is the welded or cast-on outer jacket that envelops the main valve body. This creates a sealed chamber for the heating or cooling medium, a feature entirely absent in a standard valve. Other key differences include:
- Jacket Connections: Additional ports (flanged or threaded) for the thermal fluid inlet and outlet.
- Extended Body: The valve body is often larger to accommodate the jacket.
- Material Considerations: Both the valve and jacket must withstand the process and thermal fluid temperatures.
When is a standard valve not enough?
A standard valve is insufficient the moment your process media has a freezing or solidification point within your plant’s potential operating temperature range. Here’s the real story: if there is any risk that a drop in ambient temperature or a temporary shutdown could cause the media to harden, a standard valve presents an unacceptable risk of blockage. You need a jacketed valve to proactively eliminate that risk.
How does the cost of ownership compare?
While a jacketed ball valve has a higher initial purchase price, its total cost of ownership (TCO) is often significantly lower in applicable scenarios. A standard valve might be cheaper upfront, but the costs associated with a single shutdown—lost production, labor for cleaning, and potential equipment damage—can easily dwarf the initial price difference. The jacketed valve is an investment in process continuity.
Key Takeaway: A standard valve manages flow, but a jacketed valve manages the process condition itself, making it the only viable choice when temperature-sensitive media is involved.
| Feature | Standard Ball Valve | Jacketed Ball Valve |
|---|---|---|
| Initial Cost | Low | High |
| Downtime Risk | High (with problem media) | Very Low |
| Maintenance Cost | Potentially very high | Low |
| Total Cost of Ownership | High (in wrong application) | Lower (in correct application) |
The comparison shows that for temperature-sensitive processes, the higher initial cost of a jacketed valve is justified by its lower total cost of ownership.
Choosing your jacketed ball valve
Selecting the right jacketed ball valve requires a detailed review of your process parameters and system requirements. It’s not just about the valve size; you must consider materials, temperature ratings, and connection types to ensure seamless integration and long-term reliability. Getting the specification right upfront prevents costly mismatches later.
What specifications should I check?
When creating your specification sheet, you need to account for both the process side and the jacket side of the valve. Pay close attention to these critical details:
- Valve Size & End Connections: Must match your pipeline specifications.
- Pressure & Temperature Ratings: Must exceed the maximum operating conditions of your process.
- Body & Trim Materials: Must be compatible with your process media.
- Jacket Connections: Size and type must match your heating circuit.
- Actuation Mounting Pad: Ensure it’s a standard interface (e.g., ISO 5211) if automation is needed.
How to select the right valve material?
Material selection is a balance between chemical compatibility, temperature resistance, and cost. Your valve body and ball must resist corrosion from the process fluid, while the jacket must be suitable for the heating medium (e.g., steam, hot oil). But what does this mean for you? It means you cannot simply choose stainless steel for everything; you must verify that your chosen material is compatible with all chemicals and temperatures involved.
What customization options are available?
Jacketed ball valves can be customized to meet specific process needs. Common options include full port designs for maximum flow, extended bonnets for insulation clearance, and specialized seat materials for abrasive services. You can also specify different types of jacket connections or request non-destructive testing (NDT) reports for quality assurance.
Key Takeaway: Proper specification is the key to success with jacketed valves, requiring a thorough analysis of process conditions, material compatibility, and future operational needs like automation.
| Material | Process Fluid Suitability | Temperature Limit |
|---|---|---|
| Carbon Steel (WCB) | Oils, non-corrosive fluids | ~425°C (797°F) |
| Stainless Steel (316) | Corrosive chemicals, food-grade | ~450°C (842°F) |
| Alloy 20 | Sulfuric acid, aggressive chemicals | ~450°C (842°F) |
This table provides a basic guide for selecting valve materials based on the process fluid and its operating temperature.
Maintaining a jacketed ball valve
Proper maintenance ensures your jacketed ball valve delivers the reliability you invested in. While these valves are robust, a proactive inspection and service schedule is essential for maximizing their lifespan and preventing unexpected failures. The focus should be on both the valve mechanism and the heating jacket circuit.
What is the ideal inspection schedule?
The ideal schedule depends on the severity of your service, but a good starting point is a visual inspection during routine plant walkthroughs. Here’s the bottom line: look for any signs of leakage from the valve stem or the jacket connections. A more thorough internal inspection should be planned during scheduled plant shutdowns, perhaps annually or biennially.
How do you service the heating jacket?
Servicing the jacket is as important as servicing the valve itself. A poorly performing jacket negates the valve’s primary benefit and can lead to the very blockages you sought to prevent. Your service checklist should include:
- Checking for Leaks: Inspect all jacket welds and connection points for signs of thermal fluid leakage.
- Verifying Flow: Ensure the heating medium is circulating correctly and not obstructed.
- Flushing the Circuit: Periodically flush the jacket to remove any sediment or scale that could impede heat transfer.
- Inspecting Traps: If using steam, ensure steam traps are functioning correctly to remove condensate.
What are signs of potential failure?
Early detection of potential issues can save you from a major process disruption. Be alert for symptoms like inconsistent heating along the pipe, a seized or difficult-to-operate actuator, or visible leakage from the packing gland. Any of these signs warrant a closer investigation to diagnose the root cause before a complete failure occurs.
Key Takeaway: A consistent maintenance routine that addresses both the valve and its heating jacket is fundamental to ensuring long-term, trouble-free operation.
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Inconsistent Heating | Blocked jacket or faulty steam trap | Inspect and flush jacket circuit |
| Stem Leakage | Worn packing | Tighten packing gland or replace packing |
| Valve Seized | Media solidification inside valve | Verify jacket is heating correctly |
This troubleshooting table helps maintenance teams quickly identify potential causes for common failure symptoms and take corrective action.
Conclusion
A jacketed ball valve is more than just a component; it’s a process assurance tool. It directly solves the critical problem of temperature control for viscous or crystallizing media, preventing costly blockages and guaranteeing operational continuity. Choosing the right valve means safeguarding your entire production line against failure.
Your process deserves an engineered solution, not a recurring problem. Contact RUITO’s valve experts for a complimentary technical consultation to ensure your system is optimized for reliability and efficiency. We are ready to help you specify the perfect valve for your unique application.
We believe in proactive problem-solving. RUITO is committed to providing robust valve solutions that enhance your process integrity from day one, turning your toughest flow control challenges into reliable operations.
FAQ
Q1: How do I know if my process needs a jacketed valve?
Yes, you almost certainly do if your process media solidifies, crystallizes, or becomes too viscous at ambient temperatures, creating a risk of line blockage. If you have to heat-trace your pipes, you should be using a jacketed valve.
Q2: Can I use steam in the jacket of just any ball valve?
No, absolutely not. Using a heating medium like steam or hot oil requires a valve specifically designed with an integrated, pressure-rated jacket to handle the temperature and pressure safely. Attempting to modify a standard valve is extremely dangerous.
Q3: Are jacketed ball valves more expensive upfront?
Yes, the initial investment is higher due to the more complex construction. However, this cost is quickly offset by the immense savings from preventing even a single instance of downtime, product loss, or extensive maintenance caused by a blockage.
Q4: How do I specify the connections for the valve jacket?
You should specify the jacket connection type (e.g., NPT, flanged) and size to match your plant’s existing heating circuit. It is also wise to specify their orientation on the valve body for easier pipe routing. Our team can help you define the correct specifications for seamless integration.
Q5: Can I automate a jacketed ball valve for my system?
Yes, easily. Most jacketed ball valves are designed with standard top-mounting pads, such as the ISO 5211 standard. This allows for simple, direct integration with pneumatic or electric actuators for remote control and automation.
