You’ve specified a high-quality ball valve for your system, but a hidden danger might be lurking within its core. When a standard ball valve closes, it can trap a small amount of fluid in its central cavity, which seems harmless at first. The problem escalates when this trapped fluid expands due to temperature changes, generating immense internal pressure that can damage seals, cause the valve to seize, or even lead to catastrophic, explosive failure.
A vented ball valve is the engineered solution to this critical safety issue. By incorporating a small, precisely located hole, it automatically and safely relieves this trapped pressure, protecting your system, your personnel, and your project’s integrity. This guide explains exactly when and why you need a vented ball valve, how to select the right one, and how to ensure its long-term reliability.

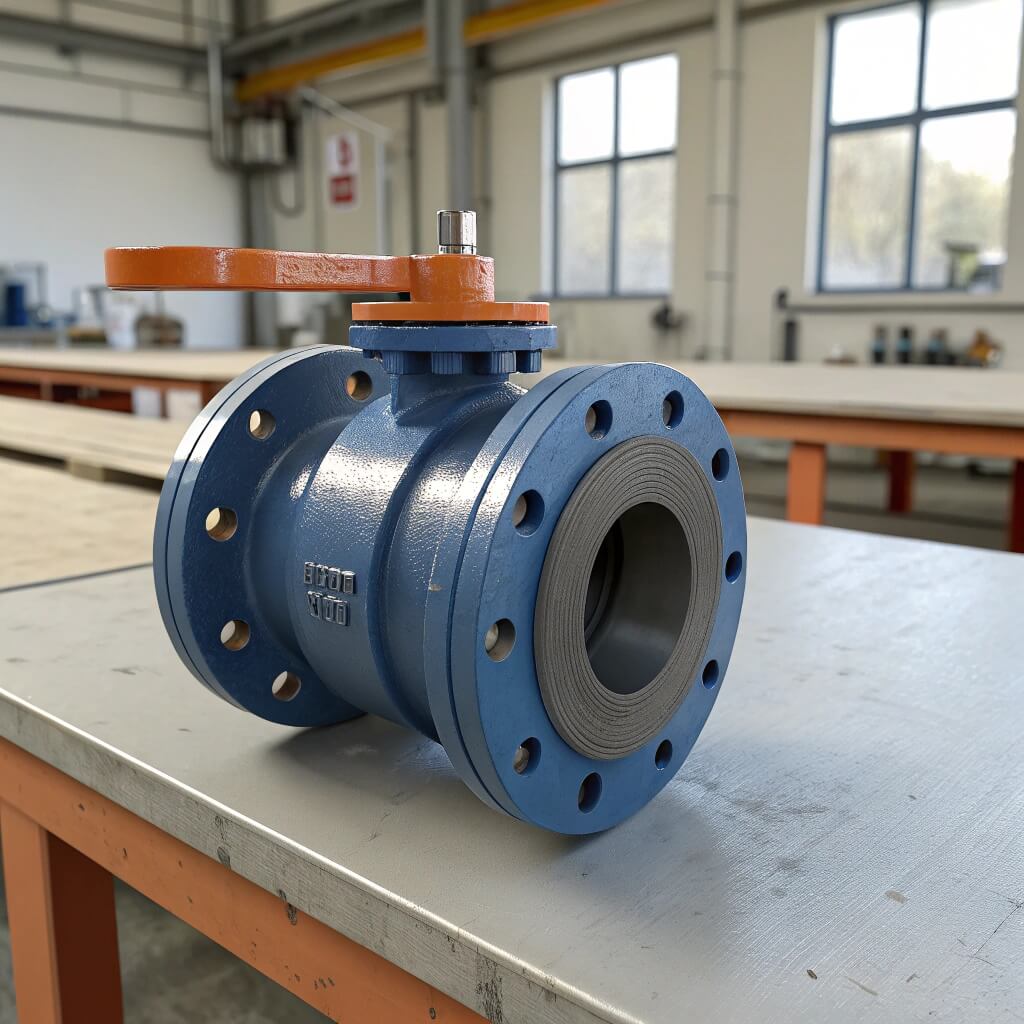

The Core Function of a Ball Valve Vent
Understanding the mechanics of a vented ball valve is the first step toward preventing pressure-related failures in your system. This simple modification plays a massive role in maintaining operational safety and integrity. A ball valve vent isn’t just an add-on; it’s a fundamental safety feature for specific applications.
What is pressure-trapping in a valve?
Pressure trapping happens when a standard ball valve closes, capturing media within its body cavity between the two seats. If this trapped fluid’s temperature rises, it expands, a phenomenon known as thermal expansion. Here’s the deal: This expansion has nowhere to go, causing a dangerous spike in internal pressure that can far exceed the valve’s rating.
- Cause: Fluid captured in the valve body cavity.
- Trigger: An increase in ambient or process temperature.
- Result: Extreme over-pressurization inside the valve.
How does the vent hole work exactly?
The vent hole is a small passageway drilled through the ball itself, connecting the body cavity to the upstream or downstream port. When the valve is closed, this vent allows the trapped fluid to bleed off safely into the connected pipeline. The bottom line is this prevents pressure from building up, equalizing the cavity pressure with the line pressure.
- It acts as a passive, automatic pressure relief mechanism.
- It ensures the cavity pressure never exceeds the system pressure.
- It protects the valve’s seats and seals from being crushed or extruded.
Where is the ball valve vent located?
The vent is always drilled on the ball component of the valve, but its orientation is critical for proper function. It must be positioned so that when the valve is in the closed position, the vent connects the body cavity to a specific side of the pipeline. You must ensure it’s installed to vent toward the correct pressure source.
Key Takeaway: The primary purpose of a ball valve vent is to prevent catastrophic failure by safely relieving pressure caused by the thermal expansion of fluid trapped in the valve’s body cavity.
| Feature | Standard Ball Valve (Closed) | Vented Ball Valve (Closed) |
|---|---|---|
| Cavity Pressure | Can rise uncontrollably with temperature | Equalized with line pressure |
| Seal Integrity | At risk of damage or extrusion | Protected from over-pressure |
| Safety Risk | High risk of seizure or body failure | Low risk, pressure is managed |
| Operation | Can become difficult or impossible | Remains smooth and predictable |
This comparison highlights how a simple vent fundamentally alters a valve’s safety profile under thermal cycling conditions.
How a Ball Valve Vent Prevents System Damage
Failing to use a vented ball valve in the right application can lead to more than just operational headaches; it can cause significant and costly system damage. The uncontrolled pressure buildup is a silent threat to your equipment’s longevity and safety. A ball valve vent directly counters these destructive forces.
What happens to seals without a vent?
Without a vent, rising pressure in the body cavity places immense force on the valve’s soft seats. This pressure can physically extrude the seat material into the pipeline, causing permanent damage and immediate leakage. Think about this: once the seats are damaged, the valve can no longer provide a tight shutoff.
- Seats are crushed against the ball, leading to deformation.
- Material can be forced out, creating a leak path.
- The valve’s shutoff capability is permanently compromised.
Can trapped pressure damage the valve body?
Yes, in extreme cases, the pressure can exceed the valve body’s pressure rating, leading to catastrophic failure. This is especially true in cryogenic applications where liquid turns to gas and expands rapidly. What’s the real story? The force can be strong enough to crack the valve body or even cause it to rupture violently.
- Pressure can exceed ANSI class ratings by a factor of 10 or more.
- Cryogenic fluids (like LNG) pose a high risk due to massive expansion.
- A body rupture releases process media, creating a severe safety hazard.
What are the primary safety risks involved?
The risks extend beyond equipment damage to personnel safety. A valve that seizes under pressure can be impossible to operate, preventing emergency shutoffs. Worse, a sudden release of pressure during maintenance or a body rupture can have devastating consequences for anyone nearby.
Key Takeaway: A ball valve vent is a critical safety component that prevents seat damage, body failure, and operational hazards by eliminating the root cause: uncontrolled pressure buildup in the valve cavity.
| Failure Mode | Description | Consequence |
|---|---|---|
| Seat Extrusion | Soft seat material is forced out of place. | Loss of tight shutoff, internal leakage. |
| High Torque | Pressure on the ball makes it hard to turn. | Inoperable valve, actuator damage. |
| Body Rupture | Internal pressure exceeds the body’s strength. | Catastrophic failure, release of media. |
| Seal Failure | Body seals or stem seals are compromised. | External leakage, fugitive emissions. |
Recognizing these failure modes underscores the importance of specifying a vented valve in susceptible services.
Ball Valve Vent Types: Upstream vs. Downstream
Not all vented ball valves are the same; the location of the vent determines how it functions within your system. Choosing between an upstream and a downstream vent is a critical decision based on your application’s flow direction and safety requirements. This choice directly impacts how pressure is managed when the valve is closed.
What is an upstream ball valve vent?
An upstream vent is drilled to relieve pressure toward the high-pressure side of the system when the valve is closed. This is the most common configuration. Here’s why: It ensures that the cavity pressure is equalized with the incoming pressure source, preventing any dangerous differential from building up against the upstream seat.
- The vent hole faces the upstream (high-pressure) port.
- It’s the standard choice for unidirectional flow applications.
- It protects both seats from over-pressurization.
When is a downstream vent required?
A downstream vent relieves pressure to the low-pressure side of the system. This is used in specific situations, such as when you need to protect downstream equipment from any potential backpressure. However, there’s a catch: this configuration places the full upstream pressure on the upstream seat and ball, which must be designed to handle it.
- The vent hole faces the downstream (low-pressure) port.
- Used for protecting sensitive downstream systems.
- Requires a robust upstream seat and valve design.
How do you choose the correct vent type?
The choice depends entirely on your system’s design and safety philosophy. For most applications, an upstream vent is the standard and safest option. A downstream vent is a specialized choice for systems where preventing any reverse flow or pressure equalization toward the source is paramount.
Key Takeaway: Always select an upstream vent unless there is a specific, well-defined engineering reason to relieve pressure downstream, and verify the valve is designed for that service.
| Vent Type | Application | Pros | Cons |
|---|---|---|---|
| Upstream Vent | General purpose, unidirectional flow | Protects both seats, industry standard | Not suitable for bidirectional flow |
| Downstream Vent | Protects downstream equipment, specific cases | Prevents backpressure from the cavity | Puts high stress on the upstream seat |
| Dual Vents | Bidirectional flow, complex systems | Relieves pressure in either direction | More complex, higher cost, rare |
This comparison clarifies that the default choice should almost always be an upstream vented ball valve.
Correct Installation of a Ball Valve Vent
Specifying the correct vented ball valve is only half the battle; improper installation can render the safety feature completely useless or even create new hazards. The orientation of the valve is not arbitrary—it must be installed correctly for the vent to function as designed. Paying close attention during installation is non-negotiable.
Does orientation matter for vented valves?
Absolutely. A vented ball valve is a unidirectional device. If you install an upstream-vented valve backward, the vent will relieve pressure to the downstream side, which may not be designed to handle it, and it will place full pressure on the weaker downstream seat. The crucial point is: the valve body is almost always marked with a flow arrow to indicate the correct orientation.
- Always install the valve according to the flow direction arrow.
- The vent must be positioned to relieve to the intended side (usually upstream).
- Incorrect orientation negates the safety function.
What are common installation mistakes?
The most common mistake is ignoring the flow arrow and installing the valve backward. Another error is failing to ensure the vent hole itself is clear of debris before installation. You might be wondering if a small blockage matters, and the answer is yes—even a minor obstruction can prevent the vent from working.
- Installing the valve in the reverse flow direction.
- Using a vented valve in a bidirectional flow line.
- Failing to inspect the vent hole for blockages prior to install.
How do you verify a proper installation?
Verification should be a standard part of your quality control checklist. First, physically check that the flow arrow on the valve body aligns with the actual process flow direction. Second, if possible, functionally test the system at a low pressure to confirm pressure is relieved correctly when the valve is closed.
Key Takeaway: The single most important aspect of installing a vented ball valve is ensuring the flow orientation is correct; failure to do so defeats its entire purpose.
| Verification Step | Action | Purpose |
|---|---|---|
| 1. Visual Inspection | Check the flow arrow on the valve body. | Confirms orientation matches process flow. |
| 2. Document Check | Review P&ID and installation drawings. | Ensures compliance with design specs. |
| 3. Vent Inspection | Look through the valve bore before install. | Verifies the vent hole is clear and unobstructed. |
| 4. Functional Test | Cycle the valve under low pressure. | Confirms pressure is relieved as expected. |
Following this checklist diligently prevents the common and dangerous errors associated with installing vented ball valves.
Critical Signs You Need a Ball Valve Vent
Recognizing the symptoms of trapped pressure in your system can help you proactively address safety risks before a failure occurs. Certain operational issues are tell-tale signs that a standard ball valve is inadequate for the service conditions. If you observe any of these red flags, it’s time to evaluate the need for a ball valve vent.
Does your system handle cryogenic fluids?
If the answer is yes, you absolutely need a vented ball valve. Cryogenic liquids like LNG, liquid nitrogen, or liquid oxygen can warm and expand dramatically when trapped in a valve cavity. Here’s the critical part: this phase change from liquid to gas can generate pressure thousands of times higher than the system’s operating pressure, making a rupture highly likely.
- Liquefied Natural Gas (LNG) systems.
- Liquid oxygen (LOX) or nitrogen (LIN) transport.
- Any process involving fluids stored at cryogenic temperatures.
Are you seeing premature seal wear?
If you are consistently replacing the seats on a specific ball valve long before its expected service life is over, trapped pressure is a likely culprit. The excessive force from thermal expansion crushes and deforms the soft seat material. But that’s not all… this constant stress cycling leads to fatigue and failure, causing persistent leaks.
- Seals appear flattened, indented, or “extruded.”
- The valve begins leaking internally shortly after a repair.
- Maintenance intervals are unusually short for a particular valve.
Is high operating torque a problem?
A ball valve that becomes difficult or impossible to turn is a classic symptom of trapped pressure. The immense pressure inside the cavity pushes the ball hard against the downstream seat, dramatically increasing the friction. This can cause actuators to fail or require extreme manual force to operate the valve, posing a significant operational risk.
Key Takeaway: If your system involves cryogenic fluids, exhibits unexplained high torque, or shows rapid seal degradation, trapped pressure is the most probable cause, and a vented ball valve is the necessary solution.
| Symptom | Direct Link to Trapped Pressure | Implication |
|---|---|---|
| High Operating Torque | Cavity pressure forces the ball against the seat. | Valve becomes inoperable; actuator damage. |
| Premature Seal Leakage | Seats are crushed and extruded by pressure. | Loss of isolation; frequent maintenance. |
| Popping or Snapping Sound | Sudden release of pressure upon opening. | Indicates severe over-pressurization. |
| Body/Bonnet Leakage | Pressure exceeds the rating of body seals. | External leaks; fugitive emissions. |
These symptoms are direct evidence that your system requires the protection a vented ball valve provides.
Long-Term Ball Valve Vent Maintenance Strategy
A vented ball valve is a low-maintenance safety device, but it is not a “fit and forget” solution. A proactive maintenance strategy ensures the vent remains clear and functional throughout the valve’s service life. Proper care prevents the very failure the valve was designed to avoid.
How often should the vent be checked?
Inspection frequency depends on the service conditions. For clean fluids like cryogenic liquids or refined gases, a visual inspection during planned shutdowns is typically sufficient. However, for services with particulates, slurries, or polymerizing fluids, more frequent checks are necessary.
- Clean Service: Inspect during annual or biannual plant shutdowns.
- Dirty Service: Check every 3-6 months or as process experience dictates.
- Critical Service: Implement a more frequent, risk-based inspection schedule.
Can the vent hole become clogged?
Yes, clogging is the primary failure mode for a ball valve vent. Particulates, debris, or solidified process media can easily block the small vent hole, rendering it useless. The takeaway is simple: if the vent is clogged, your vented ball valve behaves exactly like a standard, non-vented valve, reintroducing the risk of over-pressurization.
- Slurries can deposit solids in the vent.
- Corrosion products can build up and block the passage.
- Polymerizing fluids can solidify and seal the hole.
What is the lifecycle of a vented valve?
With proper maintenance, a vented ball valve should have a service life comparable to a standard valve in the same application. The key is ensuring the vent remains functional. Regular inspection and cleaning of the vent hole as part of your standard valve maintenance program is the best way to maximize its lifecycle and ensure continued safety.
Key Takeaway: The reliability of a vented ball valve depends entirely on keeping the vent hole clear; a clogged vent completely negates its safety function.
| Service Condition | Recommended Inspection Frequency | Primary Action |
|---|---|---|
| Clean Gas/Liquid | Annually | Visual inspection of vent hole for clarity. |
| Light Slurry/Particulates | Bi-annually (6 months) | Flush valve and visually inspect vent. |
| Heavy Slurry/Polymerizing | Quarterly (3 months) | Disassemble, physically clean vent, and inspect. |
| Cryogenic Service | During scheduled shutdowns | Inspect for ice or debris blockage. |
This maintenance schedule provides a baseline for ensuring your vented ball valves remain effective safety barriers.
Conclusion
Vented ball valves are not just a product choice; they are a critical safety decision. By effectively eliminating the dangers of trapped pressure from thermal expansion, they prevent seal damage, operational failures, and catastrophic ruptures, particularly in cryogenic or high-temperature cycling services. Ignoring the need for a vent is a direct risk to your system’s integrity and your team’s safety.
At RUITO, we don’t just sell valves; we provide engineered solutions. As a manufacturer with 20 years of experience, our technical team can help you identify applications where a vented ball valve is essential. We offer professional valve selection, customization for demanding services, and the reliable manufacturing needed to ensure your project’s success. Our vision is to be your “trusted global supplier of high-reliability industrial valves,” safeguarding your operations with every product we deliver.
Frequently Asked Questions (FAQ)
- Can I use a standard ball valve for cryogenic service?
No, it is extremely dangerous. The rapid expansion of trapped cryogenic liquid can cause a standard valve to rupture violently, making a vented ball valve mandatory for these applications. - What’s the best way to orient a vented ball valve?
The best and only correct way is to install it according to the flow arrow marked on the valve body. This ensures the vent relieves pressure to the intended (usually upstream) side of the system. - How do I know if my system needs a vented ball valve?
The clearest indicators are systems handling cryogenic fluids, those with significant temperature fluctuations, or if you are already experiencing issues like high operating torque or premature seat failure. If you are unsure, consulting with a valve expert is the safest course of action. - Can I modify a non-vented valve to be vented myself?
No, this is not recommended. Drilling a hole in the ball yourself can compromise its structural integrity, affect the valve’s sealing performance, and will void any warranty or certification. A factory-engineered vented ball valve is the only safe and reliable option. - What’s the best material for a cryogenic ball valve vent?
The best materials are austenitic stainless steels, such as 304/304L or 316/316L. These materials maintain their ductility and strength at extremely low temperatures and are not susceptible to brittle fracture, ensuring the valve remains safe and functional in cryogenic service.
