How to Avoid Costly Butterfly Valve Manufacturer Mistakes

Select a pneumatic high performance butterfly valve manufacturer against a defined valve duty, manufacturing route and sample approval plan. A supplier directory gives you names to investigate. It doesn’t show whether the proposed valve fits your fluid, pressure, pipework or failure-action requirements. Use a technical shortlist before comparing commercial offers.

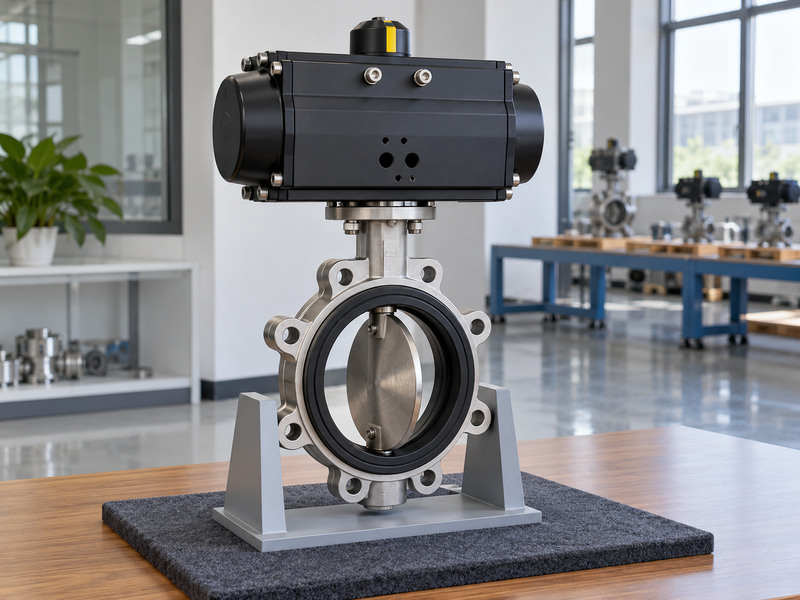

1. Which pneumatic high performance butterfly valve manufacturer?

Choose a pneumatic high performance butterfly valve manufacturer whose documented product scope matches your required construction. Separate concentric, double-offset and triple-offset designs before comparing offers. Then identify body and seat materials, size, connection, pressure–temperature limits and automation requirements. A manufacturer can be competent in one range while lacking evidence for another.

What should your shortlist contain?

Ask each candidate to identify the exact offered assembly and the location responsible for it. Keep the valve maker, actuator maker, package assembler and contracting seller visible in the evaluation. One organization may fill several roles, but the quotation should explain who approves sizing and who resolves package failures. Review its butterfly valve product scope against your data sheet rather than judging the company from a broad list of industries. Record any unsupported requirement as an open deviation.

• Identify the offered valve construction.
• Name the assembly and engineering responsibilities.
• Keep technical deviations visible during shortlisting.

Remove candidates with unresolved mandatory gaps before price ranking starts.

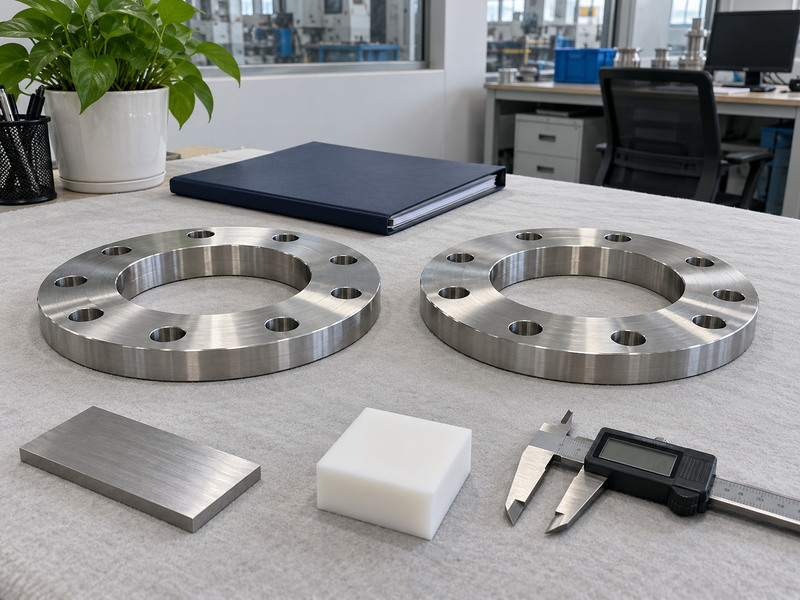

2. What must your request for quotation define?

A pneumatic high performance butterfly valve manufacturer can make a comparable offer only when your request defines the operating envelope. Supply normal and maximum pressure, temperature, maximum closing differential and the complete fluid description. Add minimum and maximum flow when control duty applies. State pipe interfaces and minimum dynamic instrument-air pressure separately from process conditions.

Which missing inputs cause expensive revisions?

An omitted cleaning chemical can change seals. A restricted installation envelope can change the actuator orientation or mounting arrangement. An unstated reverse-pressure requirement can invalidate an otherwise acceptable proposal. Ask engineering to mark unknown inputs before procurement requests a firm offer. Where provisional data are unavoidable, identify the assumption, who owns it and what approval must occur before production. Don’t let a provisional air-pressure assumption become a guaranteed site condition through repeated copying between quotation revisions.

• Supply fluid composition and cleaning conditions.
• State the maximum closing differential.
• Identify failure action and available utilities.

Use the same approved input sheet for every candidate to make deviations comparable.

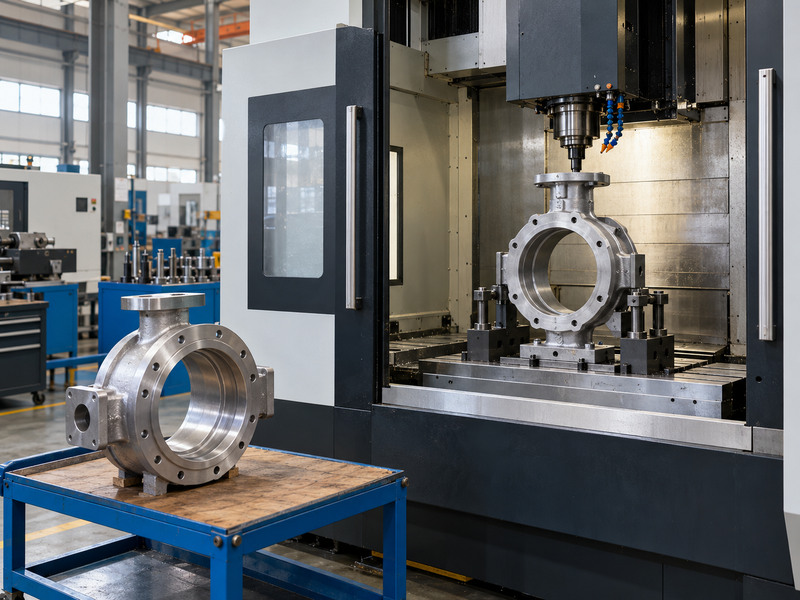

3. How can you verify the manufacturing source?

A pneumatic high performance butterfly valve manufacturer should show where the offered valve is made, assembled and tested. Company registration and a factory address establish part of the identity, but they don’t demonstrate every required process. Select a representative sample and follow its manufacturing route. Ask how outsourced casting, coating or accessory supply is controlled.

What evidence can a buyer inspect?

Request a work-order trail that connects incoming parts, machining, assembly, inspection and release. Compare equipment capability with the offered size and materials. A small concentric valve line doesn’t by itself establish large double-offset machining or test capacity. RUITO operates an integrated manufacturing and trading business in Shijiazhuang. Evaluate the specific route proposed for your order, including the operations performed outside the facility. Assign contractual responsibility for those operations and ask how a supplier change reaches your approval process.

• Trace a comparable product through its route.
• Check external suppliers and acceptance controls.
• Match equipment capacity with the proposed work.

Use the sample trail to confirm manufacturing claims made during the sales discussion.

4. Which certificates and material records apply?

A pneumatic high performance butterfly valve manufacturer needs evidence covering the product, location and requirement under review. A management-system certificate and a product test report answer different questions. Check the issuing body, validity, scope and identity on each document. Treat a certification logo as a prompt for verification rather than a substitute for the supporting record.

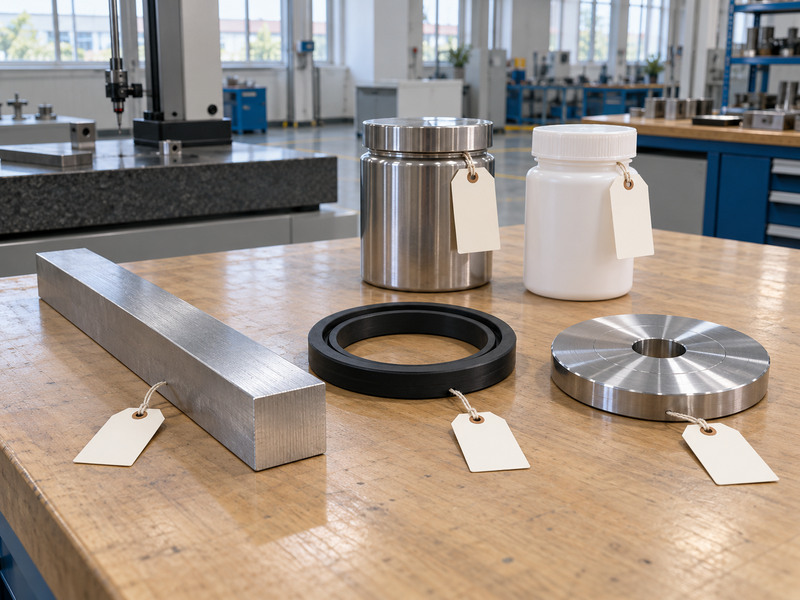

How should you review materials?

Match the approved material list with heat or batch records for the supplied components. Include disc, shaft, seat, backing and auxiliary seals. For an offered PTFE-lined butterfly valve, check the actual wetted barrier and the configuration-specific inspection route. A resin document doesn’t establish the integrity of an assembled valve. If the application needs drinking-water contact approval, fire testing or another special qualification, request coverage for the exact product and market. Avoid extending one tested material combination to every catalogue option.

• Separate management and product evidence.
• Check identity, scope and current validity.
• Match materials to the proposed assembly.

Keep uncovered options out of the approved configuration until evidence is accepted.

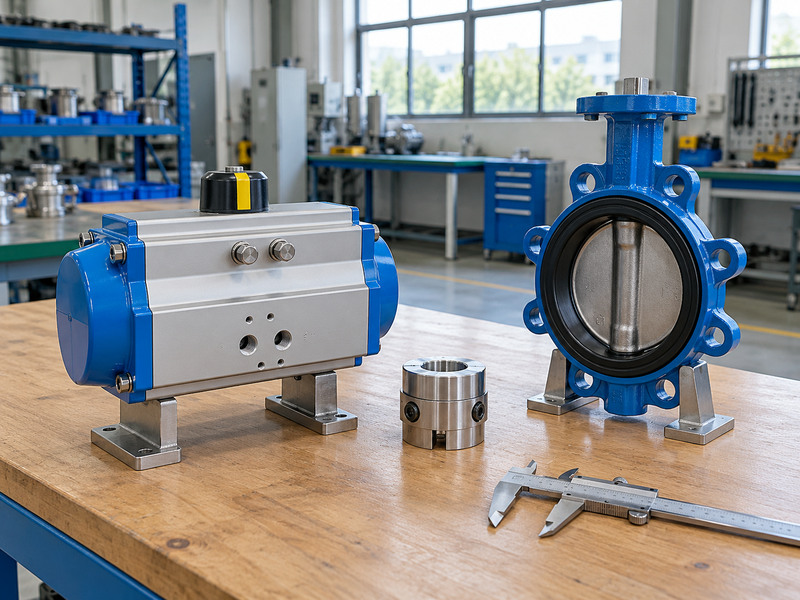

5. Does the sample fit the installation interface?

A pneumatic high performance butterfly valve manufacturer should supply a sample or drawing that matches the actual mating pipework and actuator envelope. Nominal size and flange drilling are only part of that check. Review face-to-face length, bore, disc sweep, fasteners and access. Confirm the installed assembly’s weight and support requirements before signing a mechanical approval.

What should you measure on the sample?

Compare selected dimensions with the approved general arrangement and inspection plan. Inspect shaft engagement and bracket alignment where pneumatic automation is included, using the agreed ISO 5211 attachment requirements. Keep wafer butterfly valve interfaces distinct from lug and double-flanged versions. If an alternative face-to-face length requires pipe changes, price and schedule those changes explicitly. A sample that fits a supplier’s demonstration stand may still interfere with a site reducer, internal pipe lining or adjacent equipment. Use an interface review involving the people responsible for installation.

• Check disc sweep against actual pipe bore.
• Confirm actuator and maintenance access.
• Record measured sample dimensions.

Record accepted dimensional deviations before ordering the repeat batch.

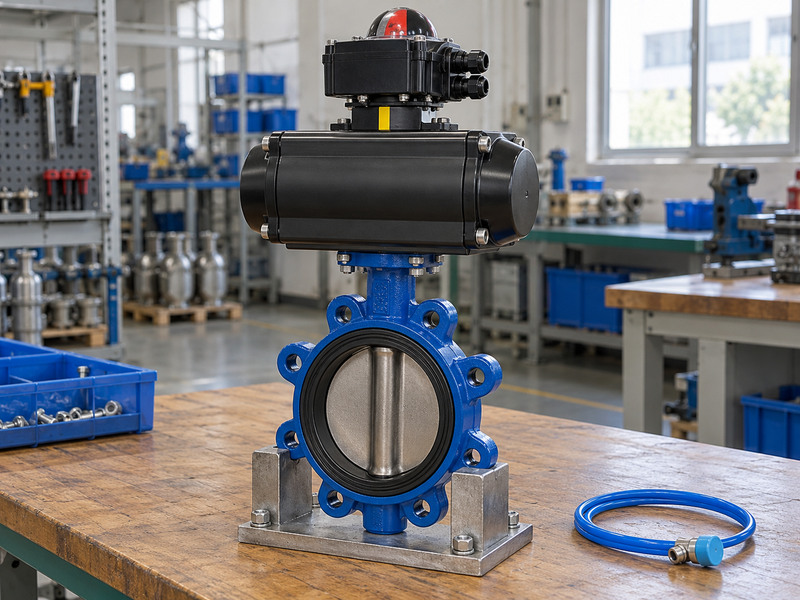

6. What should an automated sample test prove?

A pneumatic high performance butterfly valve manufacturer should demonstrate the specified movement, indication and failure behavior on the complete sample package. State the air-pressure basis and test conditions. A successful dry cycle proves movement under that condition; it doesn’t establish shutoff against the maximum process differential. Combine the functional plan with the applicable leakage and torque evidence.

Which events should you witness?

Check normal opening and closing, endpoint feedback and the defined loss conditions. Test loss of air, electrical power and signal as separate events when required. Double-acting actuation alone doesn’t guarantee a holding or fail-close action. Spring return needs adequate output through the required spring stroke. Compare actual accessory functions and settings with the circuit drawing. If the site requires a particular stroke-time window, test that window and record the adjustment. Any stored-energy arrangement needs its own approval and maintenance instructions.

• Witness the complete accessory package.
• Record air pressure during movement.
• Test specified losses independently.

Link each test result to the sample identity and its accessory revision.

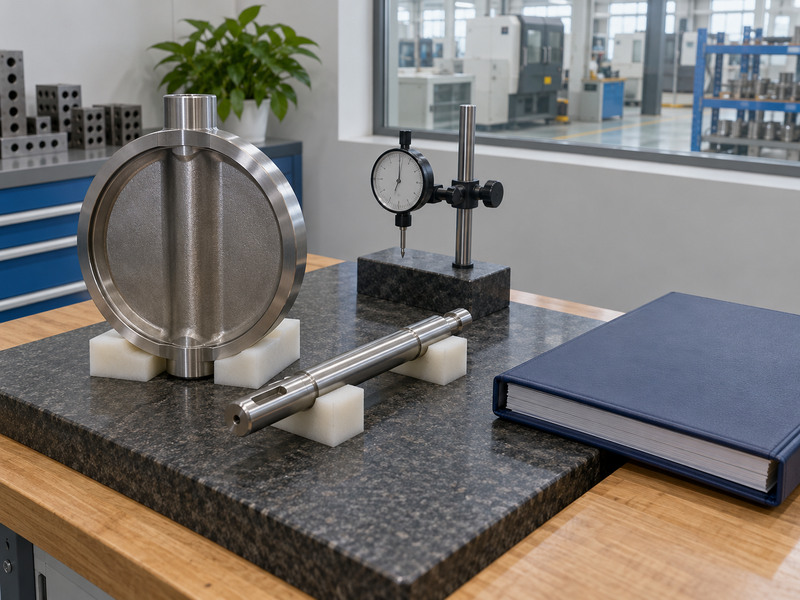

7. How should you approve the first article?

A pneumatic high performance butterfly valve manufacturer should submit a first-article package that demonstrates the agreed configuration and inspection scope. Define that scope before making the sample. Include critical dimensions, materials, pressure and leakage results, assembly checks and the required automation tests. A sample approval should state which subsequent changes require renewed review.

What belongs in the approval record?

List accepted results, open deviations, restrictions and the exact drawing and material-list revisions. Keep a retained sample or a controlled sample record where it helps repeat-order comparison. For a new seal or a changed operating envelope, ask whether additional compatibility or thermal evidence is needed. An ambient water test may remain part of the plan, but it cannot answer every service question. Separate technical sample approval from commercial acceptance and shipment release so one signature doesn’t silently waive remaining obligations.

• Define the inspection scope before sample manufacture.
• Record accepted revisions and restrictions.
• State the triggers for requalification.

Release production only against the signed configuration and clearly stated remaining conditions.

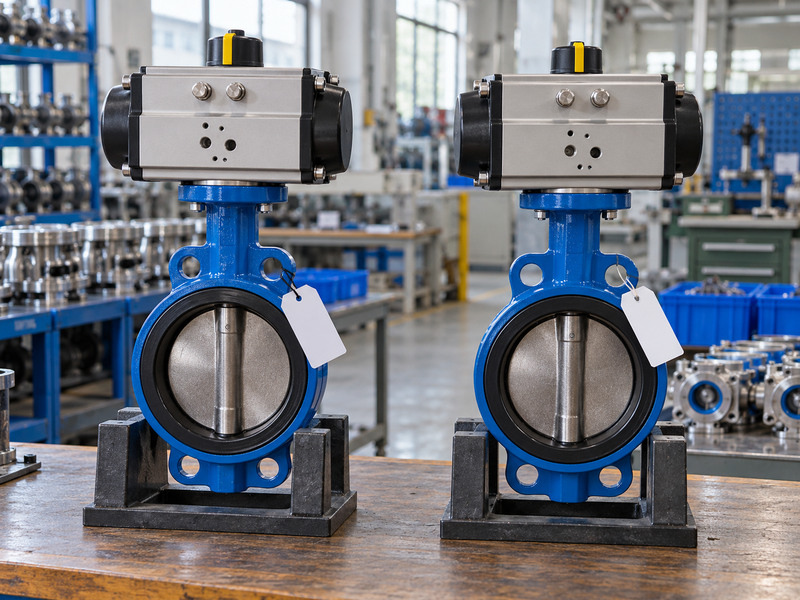

8. Will repeat orders stay consistent?

A pneumatic high performance butterfly valve manufacturer needs change control that keeps repeat orders aligned with the approved sample. Material, seal, actuator, coupling and accessory changes can affect operation even when the external appearance stays similar. Define which substitutions require your written approval. Ask how the manufacturer records the effective batch when an approved change enters production.

How can you check a repeat batch?

Select the features and records that matter to your application. Compare dimensions, material identity, accessory functions, settings and relevant test results with the accepted baseline. Review flanged valve installation details whenever a connection change is proposed. Packaging and identification also need version control when they affect warehouse handling or replacement selection. If your company applies its own brand, include marking authorization and the information that must remain traceable behind the private label. Keep engineering approval separate from a purchasing decision to accept a different price.

• Define approval rules for substitutions.
• Identify the batch affected by each change.
• Compare repeat products with the baseline.

Ask for the revision history when a repeat delivery behaves differently from the sample.

9. How do you compare qualified manufacturers fairly?

A pneumatic high performance butterfly valve manufacturer should enter commercial scoring only after meeting the mandatory technical conditions. Use the same scope and evidence requirements for each candidate. Separate pass-or-fail requirements from weighted preferences such as delivery, documentation quality and cost. An attractive total score must not conceal a missing mandatory qualification.

What does a useful evaluation contain?

Document the rating scale and evidence behind each score. A hypothetical evaluation might compare technical compliance, manufacturing control, delivery capacity, support and total purchase cost. Choose weights for your project rather than copying a universal formula. Record the reason for any judgement and let the relevant engineer review disputed technical items. The illustration here is qualitative and contains no real supplier scores. Ask each finalist to confirm assumptions and exclusions before negotiations. A lower initial price can lose its advantage after missing accessories or additional verification are included.

• Close mandatory gaps before weighting preferences.
• Record evidence beside every judgement.
• Compare equal scopes and delivery bases.

Retain the evaluation record with the final quotation revision used for award.

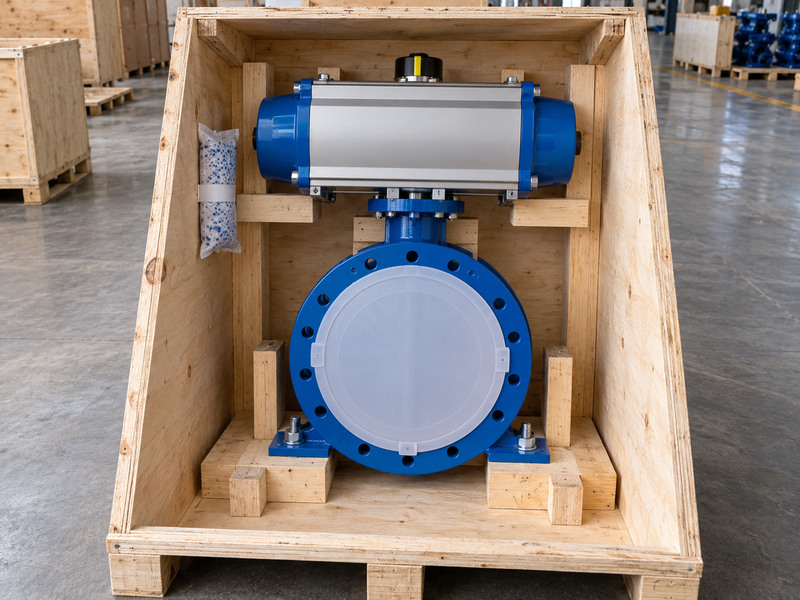

10. What should the manufacturing agreement lock down?

A pneumatic high performance butterfly valve manufacturer should receive an order that identifies the accepted configuration, inspection gates and delivery obligations. Include the approved data sheet, drawing revisions, material list, accessories and test plan. State document submission dates and the conditions required for manufacturing or shipment release. Unresolved technical details should remain visible rather than disappearing into a generic product description.

How should you hand the order into production?

Hold a technical handover using the final quotation and deviation list. Confirm responsibilities for sample approval, witness points, changes, packaging and after-sales evidence. RUITO reviews each offered configuration and provides traceable records for the agreed project scope. Ask for a proposal within that documented scope, with any higher-temperature, different-pressure or special-market requirements separately reviewed. Keep expected factory release dates distinct from transport and customs time. For repeat orders, identify the accepted baseline rather than relying on a statement that the new shipment will be the same as last time.

• Lock the configuration and deviation list.
• Assign document and witness milestones.
• Record change and replacement approval rules.

Send your approved duty and acceptance requirements when you contact us for a manufacturing review.

FAQ

Q1: Can a trading and manufacturing company qualify?

Yes. Verify the actual production route, controls over outside sources and responsibility for the finished assembly.

Q2: What’s the best way to compare factory quotations?

Use one approved data sheet and scope. Close mandatory technical gaps before weighting price, schedule and support.

Q3: Can I approve a different actuator with the same torque label?

Only after review. Compare its output curves, air basis, interfaces, maximum shaft load and failure behavior.

Q4: How do I know if sample approval covers a new seal?

Check the approved configuration and change rules. A changed seal can require compatibility, torque or additional performance evidence.

Q5: Should I keep a retained sample?

Often yes for repeat supply. Identify its revision and storage condition, and use controlled records when a physical sample cannot represent every requirement.
