Fix ce certification u section butterfly valve mistakes by checking legal scope and matching the conformity evidence to the exact valve. A supplier PDF may describe a different size, seat, or construction from your order. Request a configuration-specific package and resolve document gaps before releasing production.
1. What does ce certification u section butterfly valve mean?
A ce certification u section butterfly valve search means you need evidence for a defined product and application, rather than a broad supplier claim. Identify the manufacturer, valve configuration, intended service, and applicable legislation before requesting certificates. CE marking follows the applicable conformity requirements; the search phrase does not define a legal product category.
How should you define the product being reviewed?

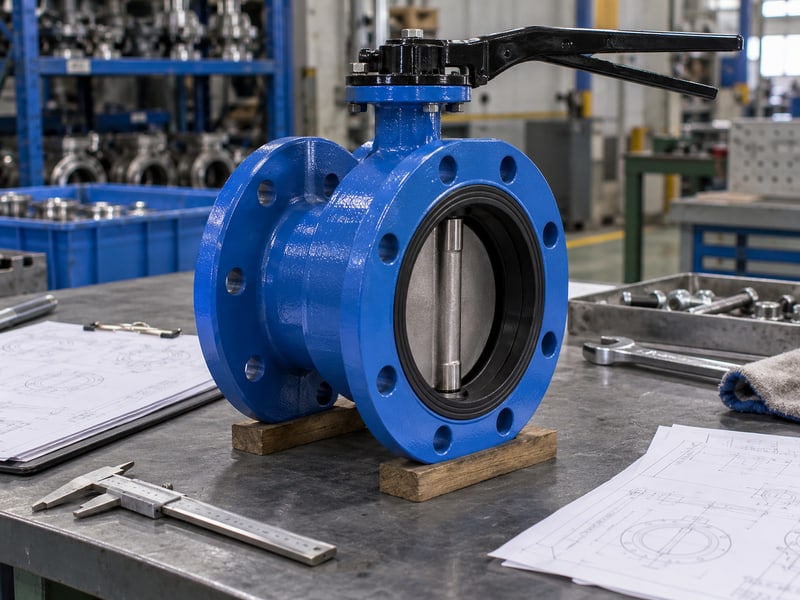

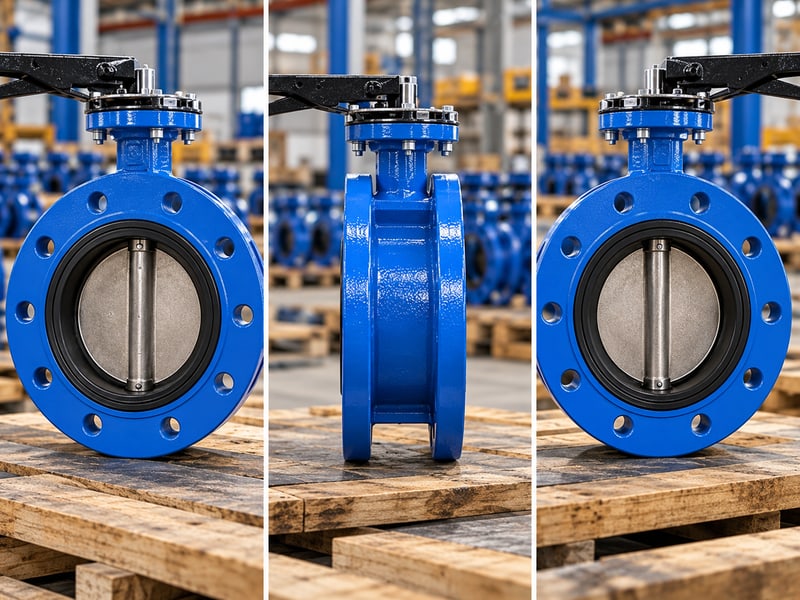

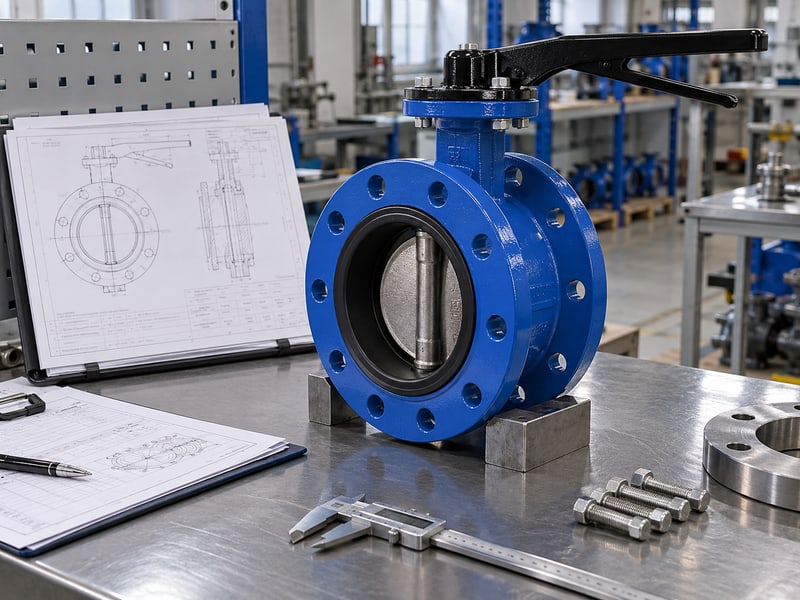

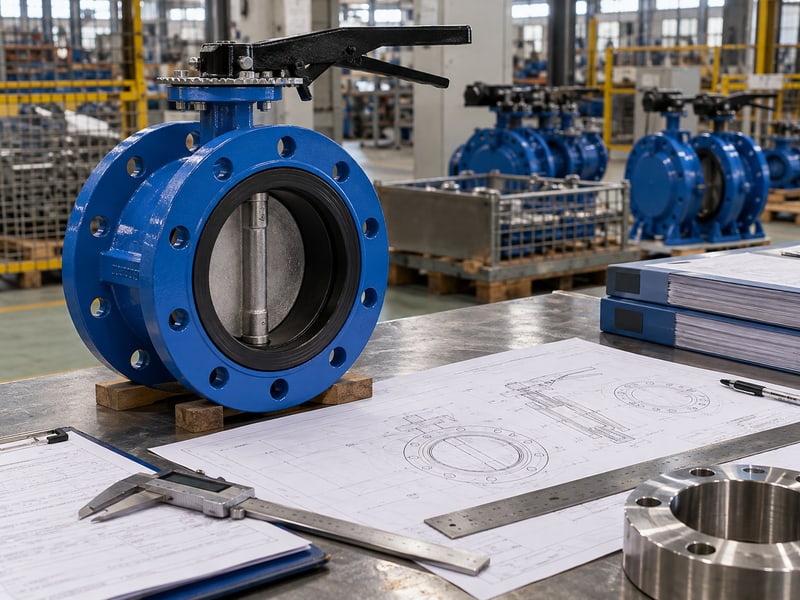

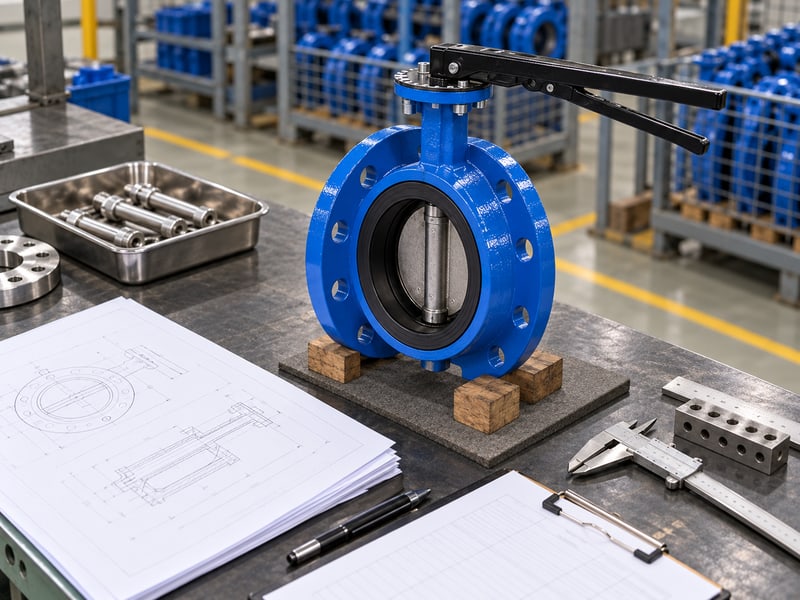

Start with the drawing. RUITO's U-type butterfly valve has an integral short U-shaped body with connection flanges on both sides, with dimensions controlled by its own accepted general arrangement drawing. Its supplied range is DN150–600, PN10/16, but the exact configuration and its conditions must still be confirmed for the order.
- Identify the connection form and nominal size.
- Record the complete body, disc, shaft, and seat combination.
- Identify the supplied operator and accessories separately.
What should the identity record establish?
Key takeaway: Use one accepted product definition for every document comparison. A document headed butterfly valves leaves too much unresolved if its scope does not identify the relevant construction and configuration.
| Review field | Evidence requested |
|---|---|
| Construction | U-type drawing |
| Configuration | Material, seal, and operator list |
| Manufacturer | Named responsible entity |
Attach the identity sheet to the review package. Match each later file with the same assembly definition.
2. When does ce certification u section butterfly valve need PED?
A ce certification u section butterfly valve enquiry needs a PED applicability review when the proposed equipment and use may fall within the directive's scope. Maximum allowable pressure above 0.5 bar is a scope condition, subject to the directive's exclusions and further requirements. Water as the fluid does not by itself establish the applicable route.
Which installation details should your reviewer receive?
Describe where the valve sits. Article 1 of the current Pressure Equipment Directive excludes specified water supply, distribution, and discharge networks and associated equipment. Your reviewer must check whether the actual application fits that exclusion; an industrial equipment duty should not inherit a municipal-network conclusion without review.
- State the installation's function and destination market.
- Supply maximum allowable pressure, temperature, and fluid details.
- Ask the responsible reviewer to record the scope rationale.
What should the scope decision retain?
Key takeaway: Resolve applicability before prescribing PED CE documents. RUITO's water and wastewater applications provide service context, while your system description establishes the actual duty being reviewed.
| Application input | Review purpose |
|---|---|
| System function | Exclusion or equipment-scope review |
| Declared limits | Applicable requirements |
| Destination | Market and project documents |
Keep the written scope decision with the enquiry. Revisit it when the application changes.
3. Can ce certification u section butterfly valve use SEP?
A ce certification u section butterfly valve review may conclude that Article 4(3) sound engineering practice applies instead of the PED CE route. Equipment under those provisions must not bear CE marking under PED, although another applicable EU act may require CE marking. Obtain the written classification basis before accepting the proposed marking.
What should the classification note explain?
Keep the inputs attached. Retain the equipment description, fluid classification, nominal size, maximum allowable pressure, and relevant temperature conditions. The supplier should identify the category or SEP basis used, with the applicable classification provisions, rather than treating the U-shaped body or nominal pressure designation as a complete answer.
- Ask for PED status and its supporting inputs.
- Compare those inputs with the actual enquiry.
- Check required instructions and identification for the stated route.
How should different routes be recorded?
Key takeaway: Distinguish PED CE, SEP, and exclusion explicitly. An SEP conclusion concerns the applicable pressure-equipment route; it does not erase other relevant product requirements or authorize a misleading PED CE claim.
| Proposed status | Buyer review |
|---|---|
| PED CE route | Category, module, and evidence |
| Article 4(3) SEP | Written basis and required instructions |
| Excluded application | Recorded scope rationale |
Have the project reviewer accept the rationale. Put an unresolved classification on the deviation list.
4. What ce certification u section butterfly valve files apply?
A ce certification u section butterfly valve package should contain the documents required by its applicable conformity route. Where PED CE marking applies, the manufacturer issues the EU declaration of conformity under its responsibility after the required assessment. Notified-body involvement depends on the category and assessment procedure, rather than a universal certificate requirement.
How can you check the document scope efficiently?
Read beyond the cover page. Compare the manufacturer, product description, signed declaration, applicable legislation, and supporting scope annexes. A management-system certificate or voluntary CE certificate cannot replace the assessment and declaration required by the applicable route; missing annexes or unclear product coverage need a recorded response.
- Match the responsible entity and exact product description.
- Identify the category, assessment module, and relevant evidence.
- Check a named body's notification scope and issuer verification.
When should a notified-body number appear?
Key takeaway: Check the body's role as well as its identity. Under PED, its identification number follows CE marking when it participates in production control; Category I Module A uses internal production control without mandatory notified-body involvement.
| Document | Comparison field |
|---|---|
| EU declaration | Product, legislation, and responsible signature |
| Route-specific certificate | Scope, module, and identified body |
| Document verification | Reference, status, and limitations |
Record discrepancies against the affected files. Request clarification before accepting the package.
5. How is ce certification u section butterfly valve traced?

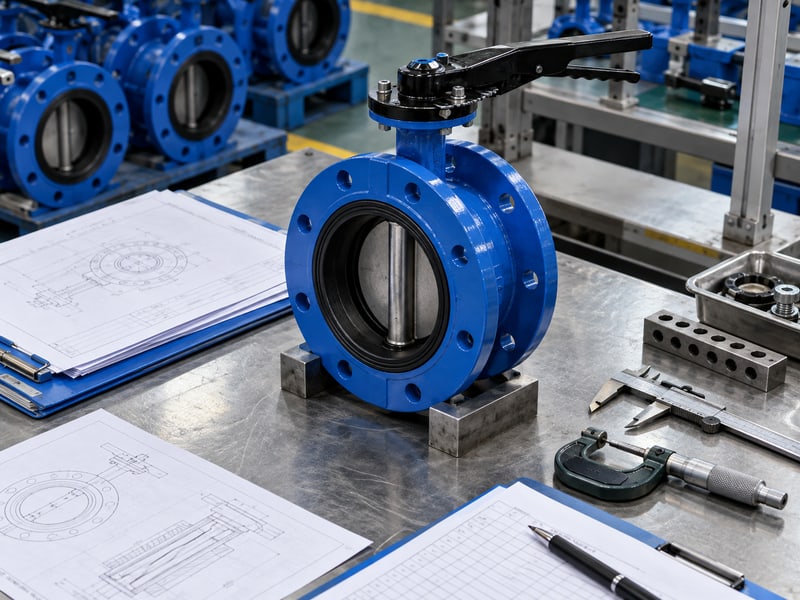

A ce certification u section butterfly valve is traced through product identification, controlled drawings, and manufacturing records tied to the order. The document check remains incomplete until the delivered item connects with the reviewed configuration. For a multi-size package, map each document to the relevant order lines.
Which traceability links should remain intact?
Follow one product ID. Ask the supplier to trace a selected valve through its identification, accepted drawing, material list, applicable material batches, and inspection records. RUITO associates these technical records with the order and product identity, giving your reviewer a concrete item to examine during the agreed inspection.
- Select an identified unit for a traceability check.
- Match drawing and material-list revisions.
- Link inspection records with packing and order lines.

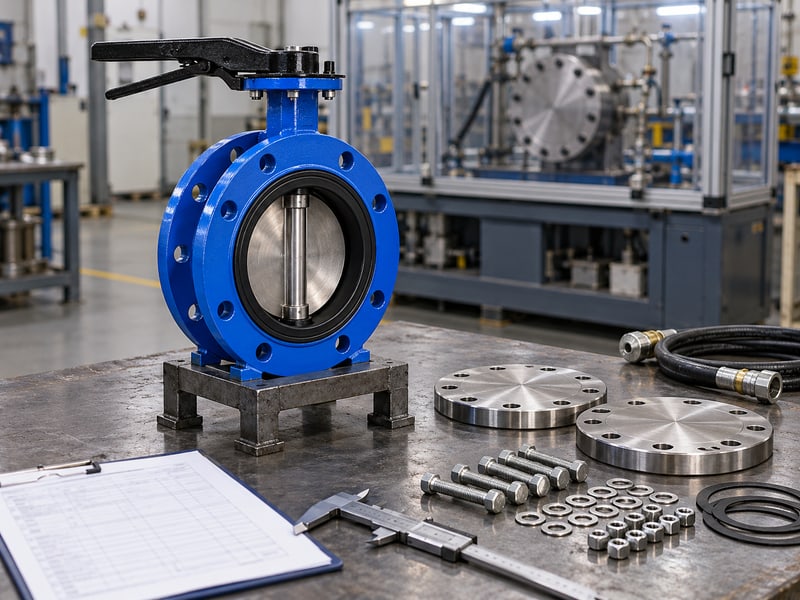

Which photographs support receiving inspection?
Key takeaway: Request photographs of the actual selected item and its identification when the inspection plan requires them. Illustration images on a webpage cannot replace order-specific evidence or establish that a shipment matches a declaration.
| Traceability point | Matching record |
|---|---|
| Valve identity | Product ID and order line |
| Build configuration | Drawing and material list |
| Shipment | Packing and inspection index |
Correct a broken record link before release. Give receiving staff the accepted document map.
6. What limits ce certification u section butterfly valve duty?
A ce certification u section butterfly valve review must use limits for the exact material, seat, size, and service combination at the specified temperature. Conformity paperwork does not replace engineering acceptance of that operating envelope. Check the actual medium, additives, pressure conditions, and required closing differential together.

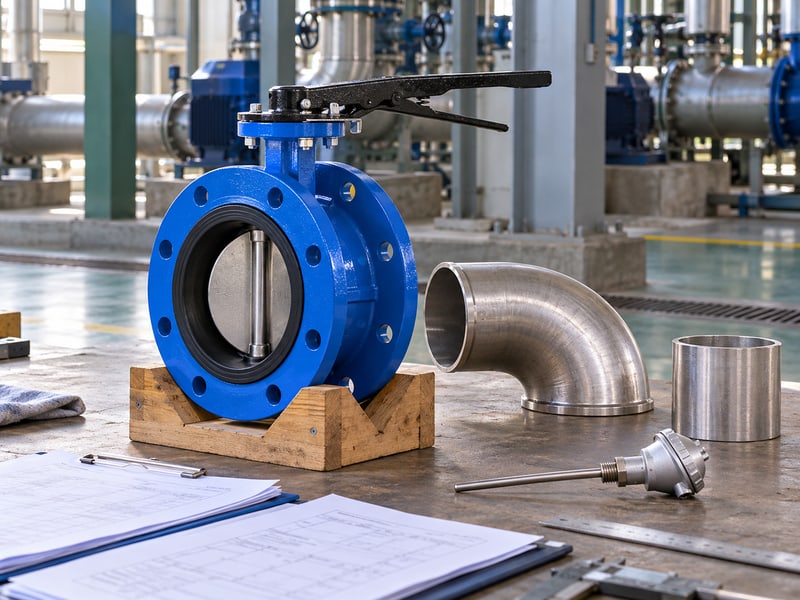

Which RUITO specifications should you distinguish?
Use simultaneous conditions. Supplied U-type clean-water configurations cover 5–60°C, with pressure governed by the model's pressure-temperature limit; the PN10/16 water versions have 20°C limits of 10/16 barg. The separate circulating-liquid application covers clean water or inhibited water with 0–40% ethylene glycol by volume at 5–60°C and up to 10 barg.
- Confirm the complete wetted-material and seal configuration.
- Check allowable pressure at the required temperature.
- List destination-specific drinking-water requirements separately.
How should material coverage be accepted?
Key takeaway: Confirm the ordered material list and service limits rather than extending one water configuration across every butterfly valve design. Body material or CE marking alone cannot establish the suitability of all wetted parts for drinking-water contact.
| Technical field | Evidence requested |
|---|---|
| Operating envelope | Model pressure-temperature data |
| Wetted parts | Complete material and seal list |
| Water contact | Relevant configuration documents |
Have engineering accept the stated conditions. Keep separate service boundaries identifiable in the quotation.
7. What ce certification u section butterfly valve tests apply?
A ce certification u section butterfly valve test review should cover the procedure and acceptance conditions agreed for the identified configuration. A pressure report describes the stated inspection, rather than the whole conformity or service-approval package. Review it alongside drawings, material records, and the applicable conformity documents.
Which test details should you inspect?
Separate test pressure from service pressure. RUITO's supplied room-temperature water-valve procedures use shell/soft-seat closure conditions of 15/11 bar for PN10 and 24/17.6 bar for PN16, subject to the model's seat differential rating. These inspection figures do not increase the permissible operating pressure on the accepted datasheet.
- Check product identification and the approved procedure.
- Review medium, pressure, duration, direction, and acceptance criterion.
- Confirm agreed witness records and instrument traceability.
What does a closure result establish?
Key takeaway: Interpret the result under its recorded conditions. Request the selected EN 12266-1 or contract-specified ISO 5208 procedure, and identify any further verification required for a changed service or material configuration.
| Report entry | Comparison |
|---|---|
| Test pressure | Accepted inspection procedure |
| Closure result | Direction and leakage criterion |
| Product identity | Ordered and shipped unit |
Return incomplete reports for clarification. Accept the result only after its conditions are identifiable.
8. What ce certification u section butterfly valve changes matter?
A ce certification u section butterfly valve review must reconsider changes affecting the accepted construction, operating limits, interfaces, or applicable conformity requirements. A seat, shaft, bracket, or operator substitution can alter the reviewed package. A valve body's CE status does not automatically cover an added or changed drive that has not been assessed.

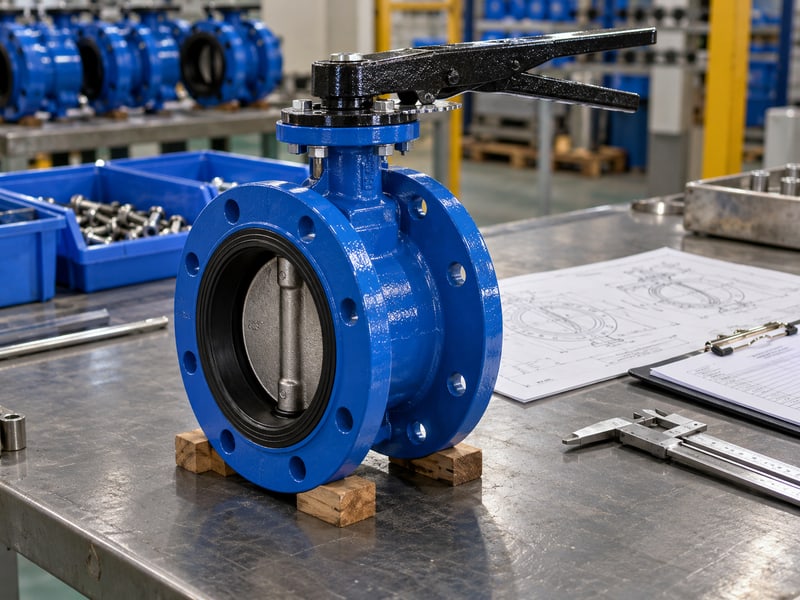

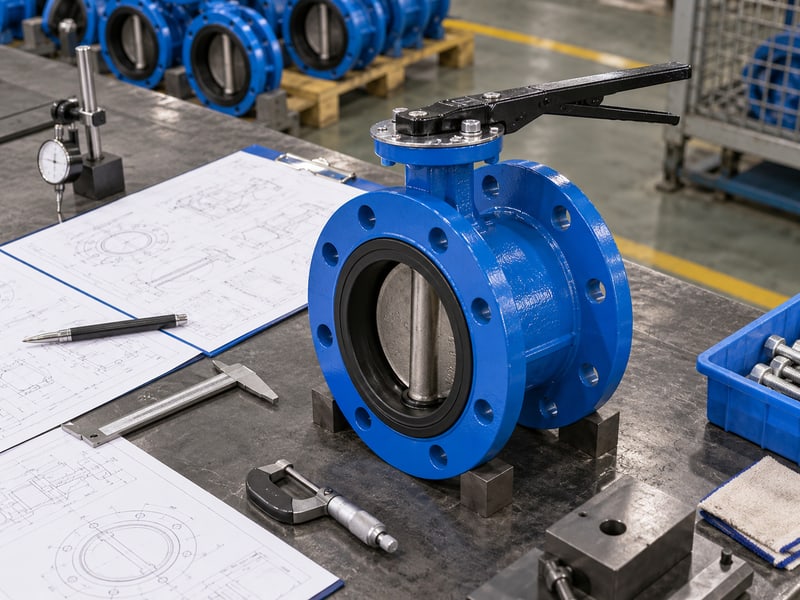

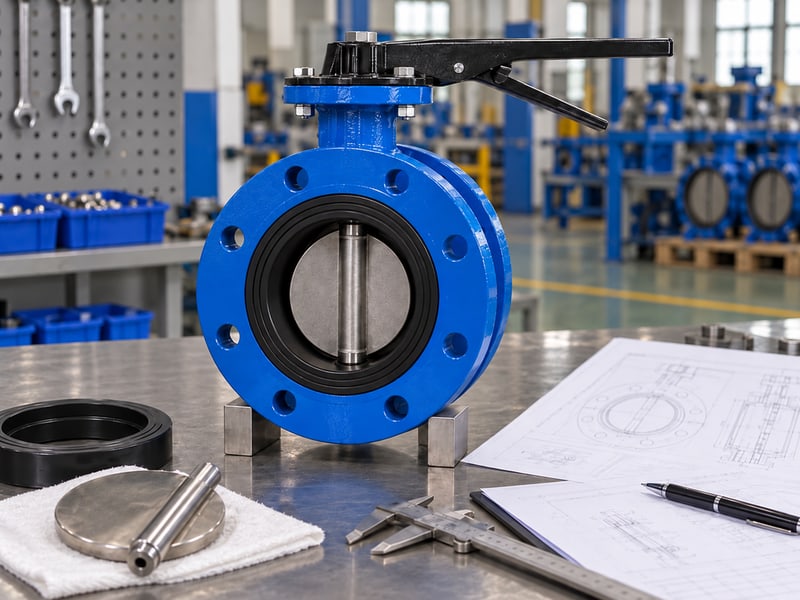

What should remain fixed on the drawing?
Check the complete supplied configuration. RUITO controls U-type face-to-face length and drilling through its applicable model drawing; wafer or other flanged dimensions cannot be substituted by nominal size alone. For an actuated package, record torque, available supply, command, feedback, and event-specific failure requirements, then review all applicable legislation and component evidence.
- Confirm face-to-face length, drilling, and disc clearance.
- Identify the operator, accessories, and interface revisions.
- Evaluate proposed changes before production or installation.
How should change approval remain traceable?
Key takeaway: Put the accepted drawing revision and assembly definition on the order. Component declarations do not replace the responsible manufacturer's assessment of the complete product where that assessment is required.
| Changed item | Review record |
|---|---|
| Valve construction | Revised drawing and limits |
| Operator package | Capability and applicable requirements |
| Materials or interfaces | Impact review and accepted revision |
Record which units receive the change. Update the affected files before releasing that configuration.
9. What ce certification u section butterfly valve data is needed?
A ce certification u section butterfly valve enquiry needs a valve schedule, service conditions, application description, destination, and required document list. RUITO can review those inputs as a defined supply package. A single quotation line requesting CE approved leaves construction, applicability, and required evidence unresolved.
How can you make the quotation reviewable?
Assign document milestones. Ask which files accompany the offer, which follow configuration acceptance, and which follow manufacture and inspection. RUITO can provide English datasheets, drawings, material lists, pressure-temperature data, operating instructions, and project inspection records; request confirmation of the applicable conformity evidence for your order.
- Attach the valve schedule and accepted service inputs.
- State inspection, document, and change-control requirements.
- Agree technical exceptions and delivery milestones.
What should the schedule distinguish?
Key takeaway: Confirm availability against the accepted U-type configuration and material planning. Keep factory release separate from transport and customs time so an arrival requirement does not become an unsupported stock or delivery assumption.
| Enquiry item | Supplier response requested |
|---|---|
| Technical duty | Configuration and operating limits |
| Evidence requirements | Scope and submission stage |
| Quantity and destination | Production and delivery plan |
Send the package through RUITO's enquiry channel. Resolve offered exceptions with the responsible reviewer.
10. How is ce certification u section butterfly valve approved?
A ce certification u section butterfly valve purchase is approved against its recorded scope decision, accepted configuration, required conformity evidence, and order acceptance conditions. Close document gaps before the affected release stage. Purchasing, engineering, and receiving staff should use the same final revision and unresolved-item status.
Which open items should you settle before ordering?
Close the open items. Keep the final review attached to the order acknowledgement and identify the owner of each unanswered requirement. Repeated orders should reference the accepted drawing and material list, with substitutions reviewed before release rather than inheriting an earlier approval without checking the changed configuration.
- Record the accepted response and supporting file revision.
- Resolve conformity, testing, and traceability discrepancies.
- Define release conditions and remaining inspection stages.
What should the accepted package establish?
Key takeaway: Approval needs identifiable scope, evidence, and decisions for the ordered valve. For a configuration and documentation review, contact us today with your valve schedule and the outstanding questions.
| Final review | Recorded decision |
|---|---|
| Legal and product scope | Accepted rationale and evidence |
| Configuration and tests | Governing revisions and criteria |
| Release status | Closed items and agreed conditions |
Request the final document index with the order. Reopen the review when service or configuration changes.
FAQ
Q1: Can I require PED CE marking for every water valve?
No. Applicability, exclusions, and Article 4(3) SEP can change the route; record the actual application's scope decision before prescribing PED marking.
Q2: How do I know if a certificate covers my U-type valve?
Match its scope with the ordered construction and configuration. Missing or unclear coverage needs written clarification and the required route-specific evidence.
Q3: Can I accept a pressure report as the whole document package?
No. It covers the identified test and conditions; retain the agreed technical, traceability, and applicable conformity documents for the order.
Q4: What's the best way to handle a seat-material substitution?
Request review before acceptance. Check fluid compatibility, operating limits, verification, and effects on previously reviewed documents, then record the accepted revision.
Q5: Can I approve the document package after shipment?
Set approval milestones before production and shipment. Confirm the document index, outstanding items, and release conditions with the order acknowledgement.
