Fix a high-platform pneumatic butterfly valve China purchase by agreeing on the valve configuration, actuator package, and acceptance evidence before comparing prices. A low quotation can omit the coupling, feedback, or testing your skid needs. Use a common inquiry sheet and a written deviation list so every supplier prices the same assembly and delivery scope.
Images are AI-generated illustrations of configurations and review tasks.
1. What is a high-platform pneumatic butterfly valve China RFQ?
A high-platform pneumatic butterfly valve China RFQ is an inquiry for a defined valve-and-drive assembly from a supplier in China. The geographic search term does not establish product performance. The high platform describes the mounting arrangement; the pneumatic actuator describes the drive. Specify the body construction, seat, shaft, connection, and controls separately so the supplier can review the actual duty.
How do you distinguish a product name from an agreed specification?

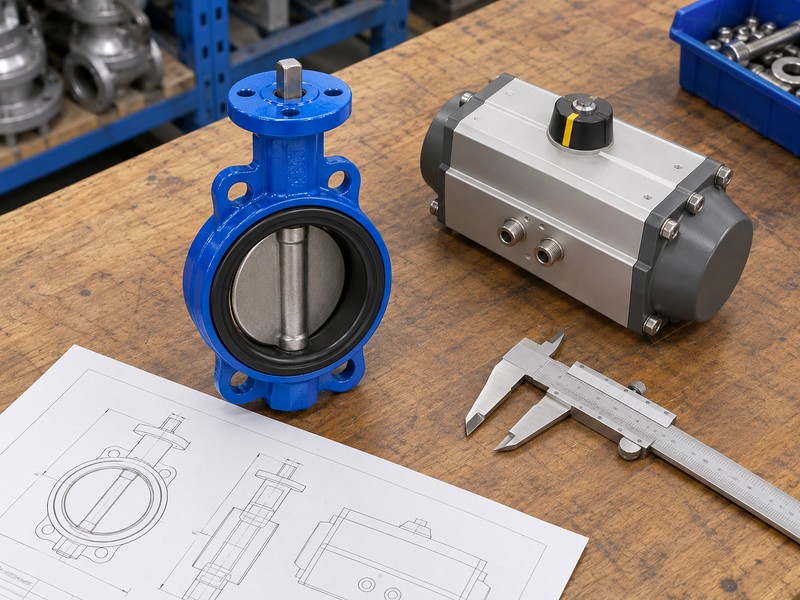

Ask for the assembly drawing before comparing offers. A catalog name may cover several materials, flange patterns, or actuator options. For example, two visually similar valves can use different shaft connections and need different couplings. Keep the manufacturer identity and drawing revision with the quote, and ask the seller to identify which work it performs and which components it purchases.
- Identify the manufacturer and the contracting supplier.
- Request the complete assembly drawing and material list.
- List assumptions and departures from the inquiry in writing.
| Inquiry description | Defines | Still needs agreement |
|---|---|---|
| China supplier | Sourcing location | Manufacturing and supply scope |
| High platform | Mounting arrangement | Dimensions and coupling |
| Pneumatic assembly | Drive method | Controls, torque, and failure response |
Use the confirmed configuration as the comparison baseline; a shared product name is too broad for purchase approval.
2. What information belongs in the RFQ?
A high-platform pneumatic butterfly valve China quotation needs the process duty, installation interface, and automation requirements before the supplier can size the assembly. State the actual fluid and its composition, minimum and maximum temperature, operating pressure, and maximum closing differential pressure. Include nominal size and mating-flange details. A line-size schedule without operating conditions leaves material and actuator decisions unresolved.
Which operating details change the quotation?
Separate normal operation from the worst closing duty. A pump shutdown, an empty downstream line, or a control interlock can create a different closing condition from normal flow. State minimum available air pressure at the valve, required stroke time, cycle frequency, fail position, and feedback. If a requirement is still unknown, ask the supplier to mark it as an open assumption rather than treating a convenient value as confirmed.
- Provide normal, startup, shutdown, and abnormal duty cases.
- Attach flange, pipe-bore, and installation-envelope information.
- Define air, electrical, signal, and environmental requirements.
| Input group | Examples | Purchasing consequence |
|---|---|---|
| Process duty | Fluid, temperature, closing pressure | Material and torque selection |
| Mechanical interface | Flanges, bore, available space | Fit and installation scope |
| Automation | Air pressure, signal, fail action | Actuator and accessory package |
Resolve the open duty inputs before freezing the order, because a later correction can change materials, actuator size, or delivery.
3. Which material records should you request?

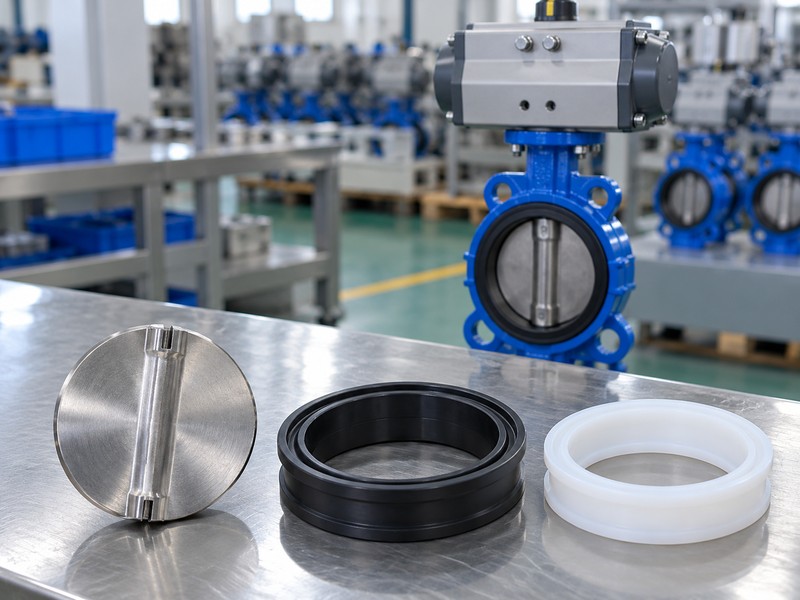

For a high-platform pneumatic butterfly valve China purchase, request materials for every pressure-containing and wetted component in the quoted configuration. The body description alone does not identify the disc, shaft, seat, lining, or auxiliary seals. Match those materials with the complete fluid and cleaning regime. A generic statement such as stainless steel cannot replace a specified grade and applicable inspection evidence.
How do you connect the records with the supplied parts?
Check identification and traceability together. Ask how the supplier connects its material records, manufacturing lot, and final product identity. For lined valves, confirm which surfaces are continuously lined and which materials remain exposed. RUITO’s documented PTFE and PFA configurations have separate chemical and temperature boundaries; a lining name alone cannot approve a new concentration, impurity level, cleaning fluid, or vacuum condition.
- Request the bill of materials for the exact offer.
- Define the required material-document type in the contract.
- Check lining, backing, shaft seals, and exposed surfaces.
| Component | Record to review | Question to close |
|---|---|---|
| Body and disc | Specified grades and identification | Does the record match the delivered part? |
| Seat and seals | Material specification and batch link | Does the complete fluid suit the package? |
| Continuous lining | Construction and inspection procedure | Which surfaces contact the fluid? |
Approve a complete material package for the stated duty rather than selecting a valve from its visible body finish or seat color.
4. How do you check actual manufacturing capability?

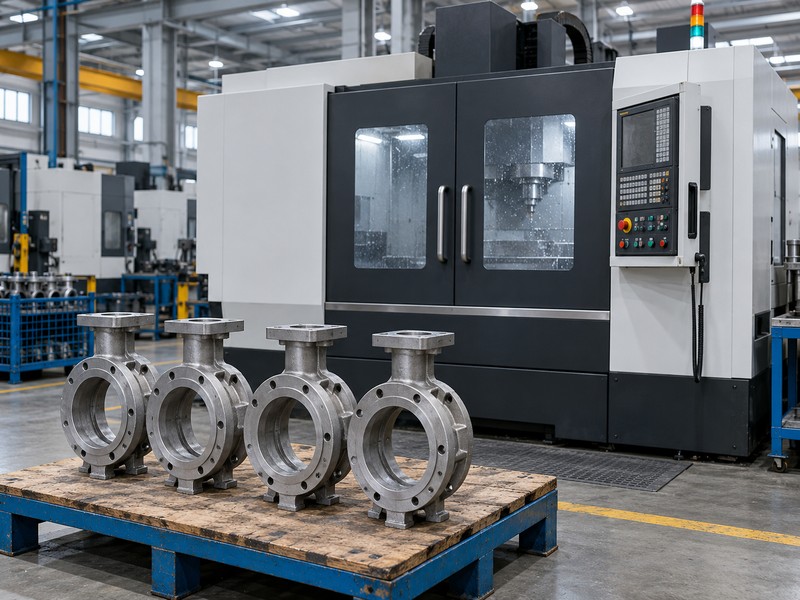

A high-platform pneumatic butterfly valve China supplier should demonstrate the operations and controls needed for your specific order. Review machining, assembly, inspection, testing, and document release as separate activities. A factory photograph can show equipment, but it cannot establish current capacity or the quality of a particular batch. Ask for order-relevant evidence and identify any subcontracted operations before approving the production route.

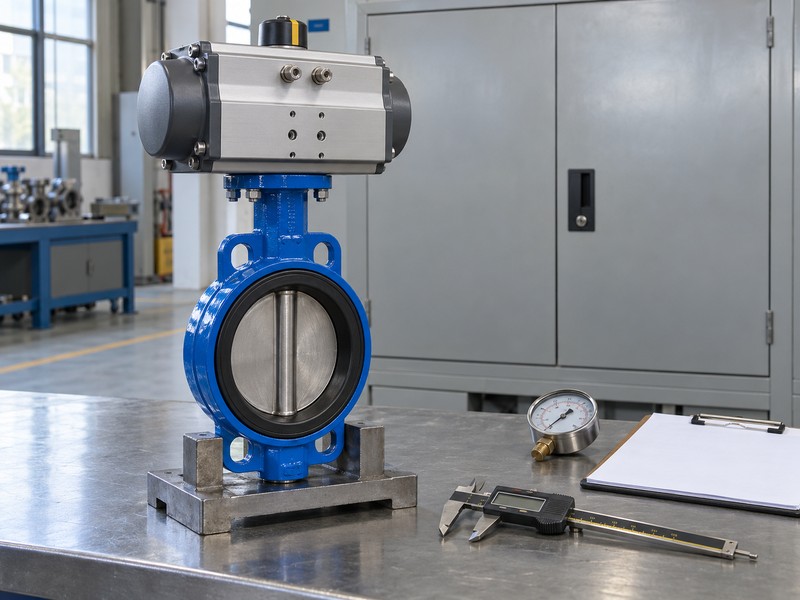

What should a practical supplier review examine?
Follow one sample through its records. Compare the drawing revision, component identification, dimensional report, assembly record, and test report for the same sample. That exercise exposes missing links more clearly than a general presentation. RUITO’s business documentation places its operation in Shijiazhuang, Hebei; the proposed manufacturing and inspection route still needs confirmation for the exact product and contract scope.
- Check measuring equipment and relevant calibration records.
- Identify who approves deviations and corrective actions.
- Verify how critical component changes reach the buyer.
| Capability | Useful evidence | Limit of a photograph |
|---|---|---|
| Machining | Dimensions against the approved drawing | Does not prove tolerance control |
| Assembly | BOM and revision-linked records | Does not establish repeatability |
| Inspection | Actual reports and instrument records | Does not establish acceptance results |
Use the sample review to close evidence gaps before a production commitment, especially when the assembly becomes part of an OEM platform.
5. Which approvals apply to the quoted valve?
A high-platform pneumatic butterfly valve China offer needs approval evidence that matches the application, configuration, and destination requirements in the inquiry. A management-system certificate concerns the supplier’s management system. It does not automatically approve every valve, wetted material, actuator, or accessory. Keep product testing, material documentation, destination requirements, and site-specific accessory approvals as distinct review items.
How do you check the scope of a document?
Read the coverage rather than the logo. Check the named manufacturer, product family, materials, sizes, limitations, and document validity where those fields apply. For example, a water-contact approval needs to cover the actual contact materials and use conditions. A general water valve does not become a sanitary process valve, a fire-service product, or a hazardous-area assembly because a seller supplies it with a pneumatic actuator.
- List required documents before requesting quotations.
- Compare the document scope with the exact offered configuration.
- Close exclusions and required third-party involvement in writing.
| Evidence type | Review purpose | Do not infer |
|---|---|---|
| Management-system certificate | Supplier-system scope | Universal product approval |
| Product test report | Specified configuration and test | Suitability for every fluid |
| Application approval | Defined end-use coverage | Approval of unrelated materials or accessories |
Reject a document substitution when its scope does not cover the contractual requirement, even if the certificate appears current.
6. How should you review the actuator package?

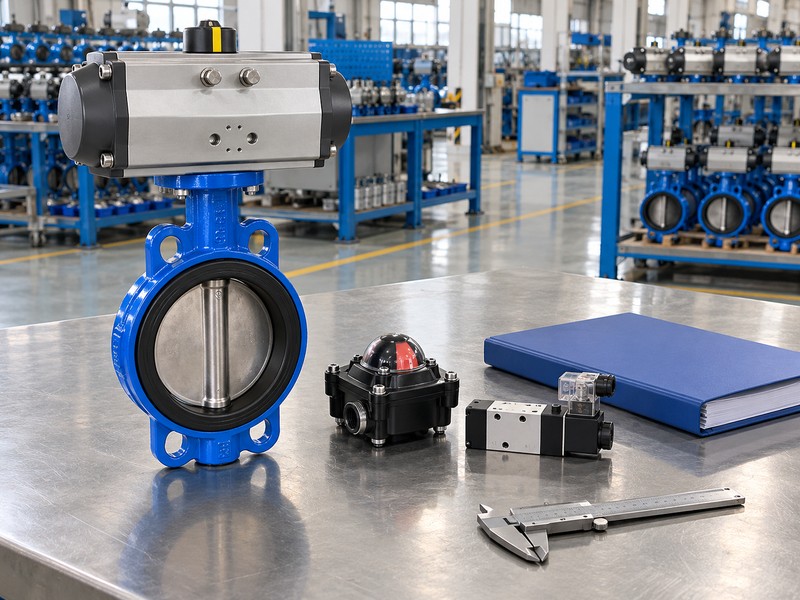

A high-platform pneumatic butterfly valve China assembly needs a matched actuator, coupling, mounting interface, and control circuit. Review output at minimum available air pressure against the valve’s full torque requirement. Check shaft and interface load limits at maximum available output as well. Matching an ISO 5211 bolt pattern does not establish adequate engagement, acceptable backlash, or a suitable failure response.
What should be included in the automation scope?
Price the complete operating package. A quote for the bare actuator may exclude the solenoid, position feedback, filter regulator, tubing, or positioner your system requires. Define the required signal, voltage, environment, and response to utility loss. For a spring-return package, review the return-stroke output throughout travel; a single nominal torque figure cannot demonstrate that the valve will reach its required position.
- Request a documented valve-to-actuator torque comparison.
- Confirm coupling geometry, engagement, and mounting details.
- Define every accessory and its inclusion in testing.
| Package element | Required agreement | Cost or performance risk |
|---|---|---|
| Actuator | Type, air-pressure range, torque | Stalling or excessive transmitted load |
| Mounting hardware | Coupling and fastening details | Late fitting work |
| Controls | Signal, feedback, and fail action | Missing integration components |
Keep the approved valve, drive, coupling, and accessories under one controlled assembly specification before comparing suppliers’ package prices.
7. What should the inspection plan cover?
A high-platform pneumatic butterfly valve China inspection plan should define material review, dimensions, pressure tests, closure tests, and complete assembly function. Agree on methods, pressures, media, directions, durations, and acceptance criteria before manufacture. Define which checks require buyer review or witnessing. An inspection plan that says test before shipment leaves too much room for different interpretations of acceptance.
Which checks need separate acceptance criteria?
Keep shell, seat, and functional results distinct. A water-pressure test cannot by itself establish suitability for a different gas duty or chemical service. The actuator test must verify the agreed air-pressure conditions, travel, feedback, and failure response. For RUITO’s lined configurations, lining integrity and construction checks form additional work under the applicable procedure; a generic pressure report cannot replace those records.
- Link each report with the product identity and configuration.
- Agree on deviations, repair review, and retest requirements.
- Release the batch only after contractual hold points close.
| Inspection stage | Example record | Buyer decision |
|---|---|---|
| Before assembly | Materials and critical dimensions | Approve components or resolve deviations |
| Pressure and closure testing | Condition-specific actual results | Accept against agreed criteria |
| Complete assembly testing | Travel, feedback, fail response | Confirm integration requirements |
Set the reporting and witness requirements before the supplier schedules testing so missing evidence does not delay batch release.
8. How can you compare quotations on equal terms?
A high-platform pneumatic butterfly valve China price comparison is meaningful when every offer covers the same technical and commercial scope. Compare exact materials, actuator selection, accessories, inspection, documents, packing, and delivery terms. A lower unit price may reflect a smaller actuator or excluded feedback hardware. Resolve those differences before calculating the cost of a complete assembly ready for integration.
Which exclusions create work after purchase?
Ask each supplier to complete the same scope table. Record included items, exclusions, deviations, and the assumptions behind the lead time. For a retrofit, account for any new coupling, flange work, or controls changes. For a repeat OEM order, include revision control and spare-part continuity; an unannounced component change can cost more integration time than the original valve-price saving.
- Normalize the technical BOM before comparing unit prices.
- List inspection, documentation, and packing charges separately.
- Separate factory release from international transport and clearance.
| Quote line | Compare like for like | Potential omission |
|---|---|---|
| Valve and drive | Same approved configuration | Different seat or smaller actuator |
| Controls and tests | Same included accessories and criteria | Feedback or witnessed test excluded |
| Delivery scope | Same packing and commercial terms | Transport or documents excluded |
Select against the agreed assembly and delivery scope; a price difference needs an explained cause before it becomes a saving.
9. What must be agreed before shipment?

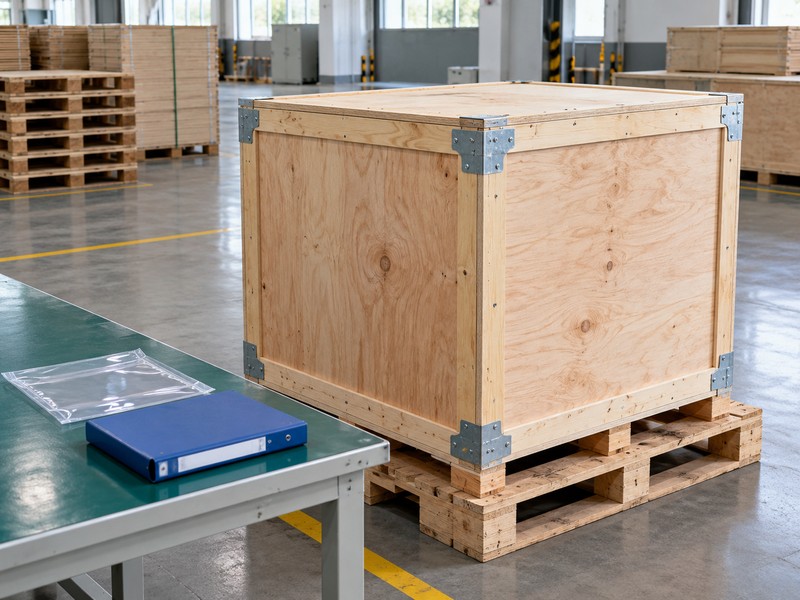

A high-platform pneumatic butterfly valve China order needs a defined release package, protective packing, identification, and delivery schedule before shipment. Confirm when the manufacturing lead time begins and which approvals must be complete. Protect the seat faces, shaft connection, actuator, and accessories during transport. The packing method must support the assembly without placing transport loads on air fittings or exposed drive parts.
What should the final handover contain?
Match the packing list with the release records. Check product identity, approved drawing revisions, inspection reports, operating instructions, and any agreed spare parts. A sample approval should also define how production changes are handled. Send RUITO the duty, destination, quantities, and required documentation for a review of the proposed supply scope, then resolve the remaining assumptions before committing to a shipment date.
- Approve the document index and product-identification method.
- Confirm supports, face protection, and accessory protection.
- Agree on release, transport, and receipt responsibilities.
| Release item | Confirm before dispatch | Receipt check |
|---|---|---|
| Documentation | Agreed index and approved revisions | Documents match the supplied identity |
| Packing | Supports and protected openings | No transport damage or loose parts |
| Shipment scope | Quantity, accessories, and spares | Packing list matches the order |
For a defined supply-scope review, contact us with the inquiry sheet, required records, and delivery destination before requesting a firm quotation.
10. Which purchasing questions need a clear answer?
A high-platform pneumatic butterfly valve China purchase should leave no uncertainty about the offered configuration, acceptance evidence, or delivery scope. Use these questions to resolve common gaps before approving the order.
Q1. Can I order using a D800G catalog description alone?
No. Obtain the issuing supplier's actual drawings and specifications. Compare materials, dimensions, torque, interfaces, and controls before treating any alternative assembly as interchangeable.
Q2. What's the best way to compare supplier prices?
Use the same approved configuration and scope table for every offer. Include the actuator, coupling, accessories, tests, documents, packing, and delivery terms before comparing the complete supply cost.
Q3. How do I know whether a certificate covers my valve?
Check its stated scope against the exact manufacturer, configuration, materials, application, and contractual requirement. A management-system certificate or an unrelated product report cannot close that review.
Q4. Can I approve the sample and skip batch records?
No. The production batch still needs the agreed inspection and release evidence. Keep the sample revision, production configuration, product identity, and approved changes connected in the records.
Q5. Can RUITO confirm a configuration before I place an order?
RUITO can review the stated duty and proposed supply scope. Provide the fluid, operating limits, closing differential pressure, connections, minimum air pressure, control requirements, quantities, and required acceptance documents.
