1. What should “how does a butterfly valve work video” show?
A clear explanation should connect operator movement with shaft rotation, disc position and the resulting passage through the bore. Use that connection when reviewing a “how does a butterfly valve work video” search result. The matching still illustrations establish a simple reference for closed and open geometry without claiming an actual operating demonstration.
What makes the mechanism visually understandable?
Look for a consistent valve and pipe orientation across the explanation. The operator, shaft and disc should remain identifiable as the position changes, with the actual seat arrangement distinguished from a generic drawing. A cutaway or exterior view can explain selected relationships, but its limits should stay clear when hidden engagement, materials or inspection results are not shown.
- Identify the same disc, shaft and bore across views.
- Keep the pipe-flow reference consistent.
- Distinguish illustrated relationships from actual product evidence.
Key takeaway: Follow the visible mechanism, then use actual product records for hidden construction and acceptance requirements.
| Check | What you should confirm |
|---|---|
| Connection | Operator input links to the actual shaft and disc |
| Reference | Pipe and valve orientation remain understandable |
| Evidence | Visible explanation has a stated illustrative scope |
2. Where is open in “how does a butterfly valve work video”?

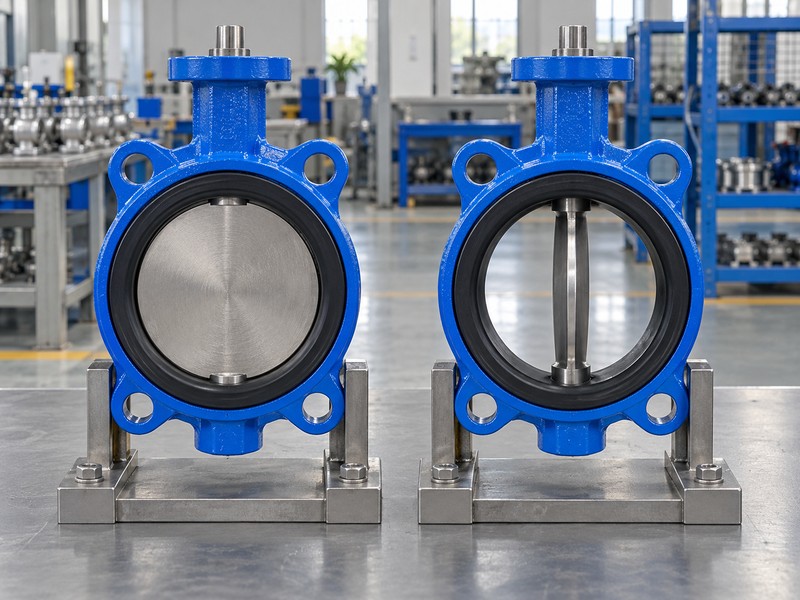

In a simplified concentric valve, the open disc plane lies approximately parallel to the pipe-flow axis and the closed plane crosses it. Apply that reference when reviewing “how does a butterfly valve work video”. The selected model drawing establishes its actual geometry, indexing, stops and travel convention, especially when an offset construction changes the sealing arrangement.
Which viewing reference avoids a reversed reading?
Identify the flow axis before interpreting the apparent disc shape. A disc seen from an oblique viewpoint may look narrower without proving the accepted open position, and a cropped handle view cannot settle its indexing. Use the actual drawing to relate shaft indication to the disc; turning direction also needs the operator’s specified viewing reference and instructions.
- Relate the disc plane to the pipe-flow axis.
- Keep camera viewpoint separate from shaft position.
- Check actual indexing and operator direction conventions.
Key takeaway: Read the simple mechanism from disc plane and flow axis; use model records for actual endpoints and direction.
| Check | What you should confirm |
|---|---|
| Closed reference | Disc plane crosses the flow axis in the simple model |
| Open reference | Disc plane lies approximately along the flow axis |
| Actual assembly | Drawing and operator information define accepted endpoints |
3. What rotates in “how does a butterfly valve work video”?
The shaft transmits rotation to the disc through the selected mechanical connection. That load path belongs in a “how does a butterfly valve work video” explanation, whether a handle, gearbox or powered actuator supplies the input. The disc remains attached within the bore as it turns; it does not withdraw from the passage like a sliding gate.
What should the shaft connection reveal?
Trace input through the coupling and shaft to the disc. Different constructions use their own connections, supports, retention and shaft seals, so an exterior illustration cannot identify every hidden component. Ask for actual assembly information when a pointer or actuator moves but its relationship to the disc remains unclear; apparent input motion alone leaves coupling and indexing questions unresolved.
- Trace the operator, coupling, shaft and disc relationship.
- Identify hidden connections from the actual section drawing.
- Keep input movement separate from verified disc travel.
Key takeaway: Trace the complete motion path before treating handle or actuator movement as disc travel.
| Check | What you should confirm |
|---|---|
| Input | The selected operator supplies rotation |
| Transmission | Defined couplings and shaft carry that movement |
| Disc | The actual connection establishes its rotary response |
4. Where is the seat in “how does a butterfly valve work video”?

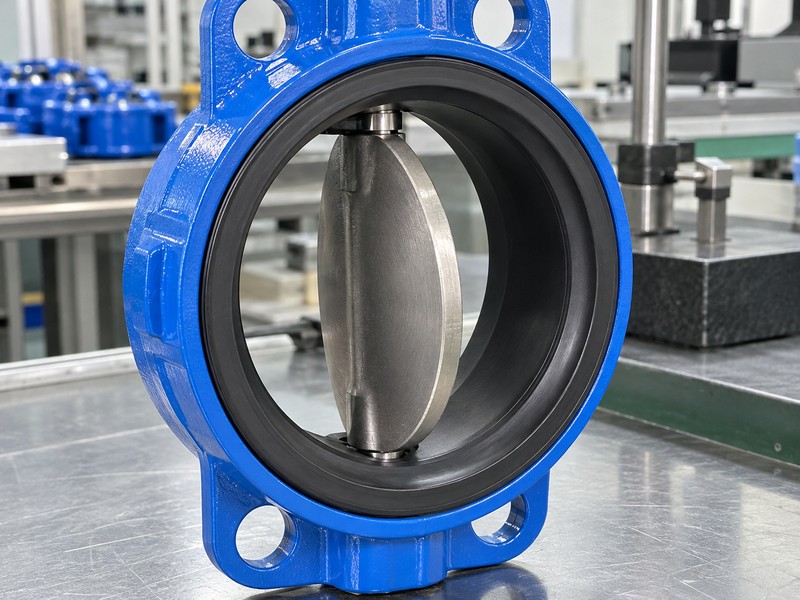

The seat forms the selected closure interface where the disc and sealing arrangement meet. Identify that contact when reviewing “how does a butterfly valve work video”. A resilient liner, polymer-lined construction and offset seat arrangement have different details, so a visually closed disc or familiar body colour cannot establish which sealing design the explanation represents.
What should the contact view distinguish?

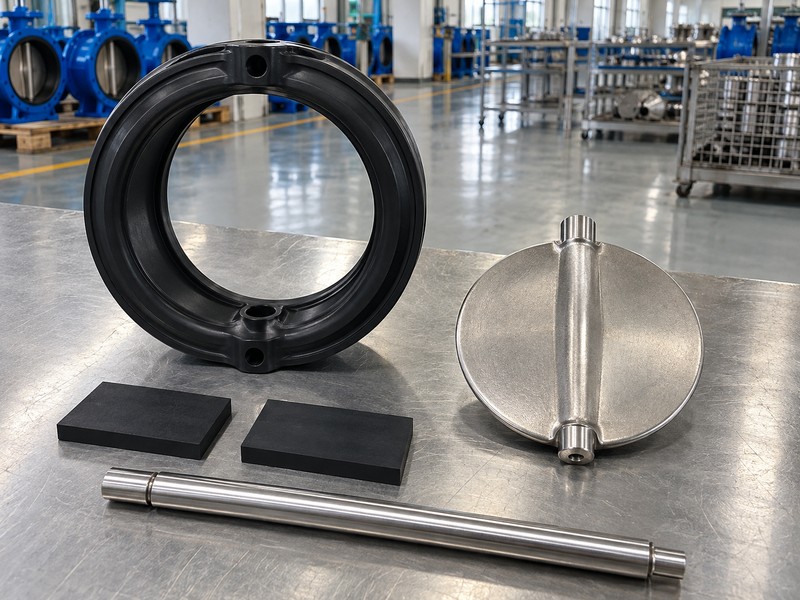

Compare the disc edge and seat profile with the actual construction. Identify the wetted material and auxiliary seals where applicable, then distinguish contact geometry from a pressure or leakage result. An illustration can show where closure occurs, while the selected materials, retained fit and agreed inspection conditions establish the accepted sealing and fluid-compatibility scope for a supplied valve.
- Identify the disc edge and selected sealing profile.
- Use actual material and construction information.
- Separate physical contact from leakage acceptance.
Key takeaway: Use the seat view to understand contact, with actual records supporting any sealing claim.
| Check | What you should confirm |
|---|---|
| Contact | Disc and seat match the represented construction |
| Material | Actual wetted components fit the reviewed fluid |
| Acceptance | Defined leakage requirements have separate evidence |
5. What does “how does a butterfly valve work video” omit about flow?
Visible disc travel leaves the actual flow coefficient and system pressure conditions unresolved. Keep that limit beside a “how does a butterfly valve work video” explanation. Half-open shaft travel cannot establish half the measured flow, and an open disc and shaft still occupy part of the bore rather than creating an entirely unobstructed passage.
How should you read the pressure-loss illustration?

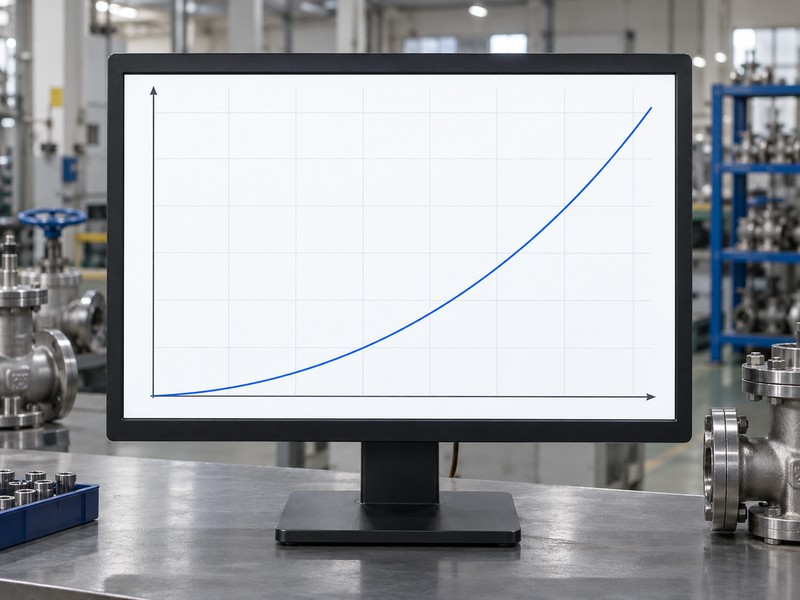

The conceptual curve holds liquid density and flow coefficient fixed while greater flow requires greater pressure loss. Actual sizing needs the selected valve’s size, opening data, fluid properties and operating pressures, including any viscosity or cavitation review. A fixed-coefficient curve cannot represent all disc angles, and a liquid relationship cannot replace the compressible-flow method needed for gas duty.
- Separate position, coefficient and measured system flow.
- Read the curve only under its stated liquid assumptions.
- Request actual model data and operating conditions.
Key takeaway: Use actual valve and system data to determine the hydraulic result behind an illustrated opening.
| Check | What you should confirm |
|---|---|
| Travel | A mechanical position identifies the opening |
| Coefficient | Selected model and opening determine the data |
| Flow result | Actual fluid and system pressure conditions remain required |
6. Why count turns in “how does a butterfly valve work video”?

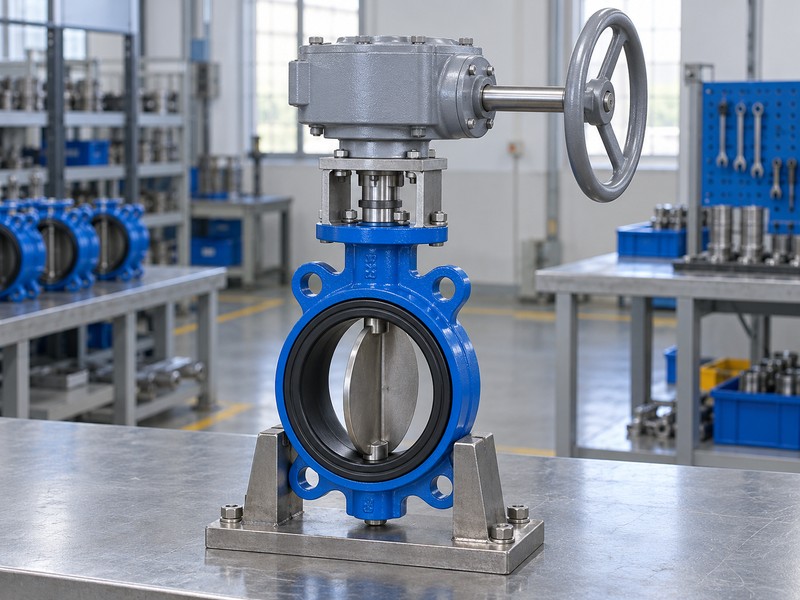

Handwheel input rotation and valve-shaft output travel are different quantities when a gearbox connects them. Keep both visible in a “how does a butterfly valve work video” explanation. Quarter-turn valve output does not establish a universal handwheel turn count; the actual gearing, connections and accepted limits determine how the operator delivers the stroke.
What should the gearbox view connect?
Identify the handwheel input, gear transmission, output connection and valve shaft. Use the selected operator information for direction, indication and any holding or self-locking feature, with the pointer checked against actual indexing. Reaching a handwheel limit cannot prove sealing or authorize extra force, and an exterior image cannot establish the gear ratio or a model-specific adjustment procedure.
- Separate handwheel rotations from valve-shaft travel.
- Trace gearbox output into the accepted shaft connection.
- Use actual operator data for gearing, indication and limits.
Key takeaway: Use gearbox data to relate handwheel input and valve travel, including the actual turn count and limits.
| Check | What you should confirm |
|---|---|
| Input movement | Handwheel rotation follows the selected gearing |
| Output movement | Shaft travel follows accepted valve endpoints |
| Indication | The actual pointer and coupling match the assembly |
7. What loads should “how does a butterfly valve work video” explain?

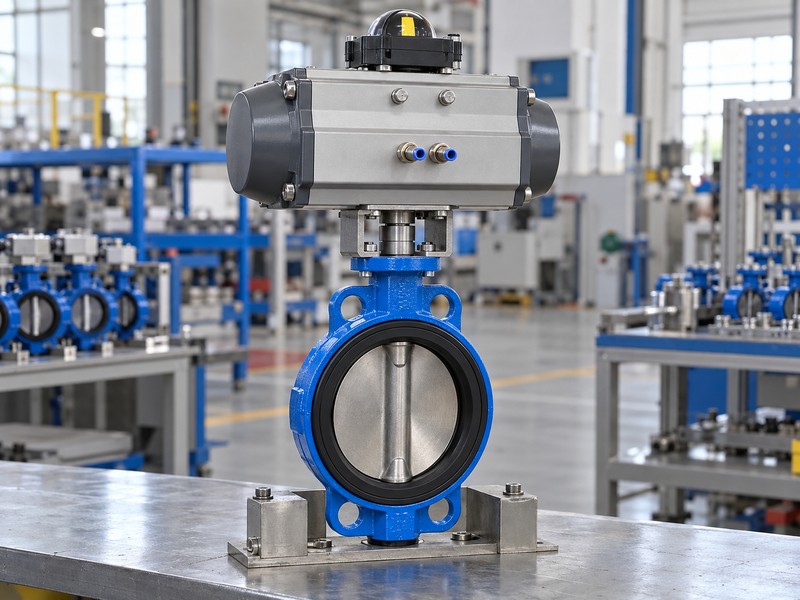

The explanation should distinguish mechanical resistance and fluid-induced loads from the drive’s available output. Include that distinction when evaluating “how does a butterfly valve work video”. Breakaway, running and seating torque can differ, and a conceptual movement or unloaded example cannot establish the output needed through the actual valve’s accepted operating stroke.
Which conditions belong behind the motion?
Review the selected torque basis against seat construction, temperature, closing differential and installation conditions. For a powered drive, use its actual supply conditions and specified action; the housing size cannot establish its capability. A positioner can request travel but cannot create missing torque or approve binding caused by an incorrect coupling, pipe clearance or assembly condition.
- Identify breakaway, running and seating load conditions.
- Use actual differential, installation and drive information.
- Review torque through the complete required stroke.
Key takeaway: Use the torque calculation to establish operating capability; the illustration identifies the drive path.
| Check | What you should confirm |
|---|---|
| Valve demand | Actual seat, fluid and differential conditions |
| Drive output | Capability at the specified operating supply |
| Motion path | Accepted coupling, support and installation geometry |
8. Which type is shown in “how does a butterfly valve work video”?
Identify concentric or offset geometry from the selected design drawing rather than appearance alone. That classification changes how you interpret “how does a butterfly valve work video”. Concentric, double-offset and triple-offset examples have different shaft and sealing relationships; a generic metal-seat image cannot establish the precise offsets or the supplier’s offered product range.
What can the construction comparison establish?

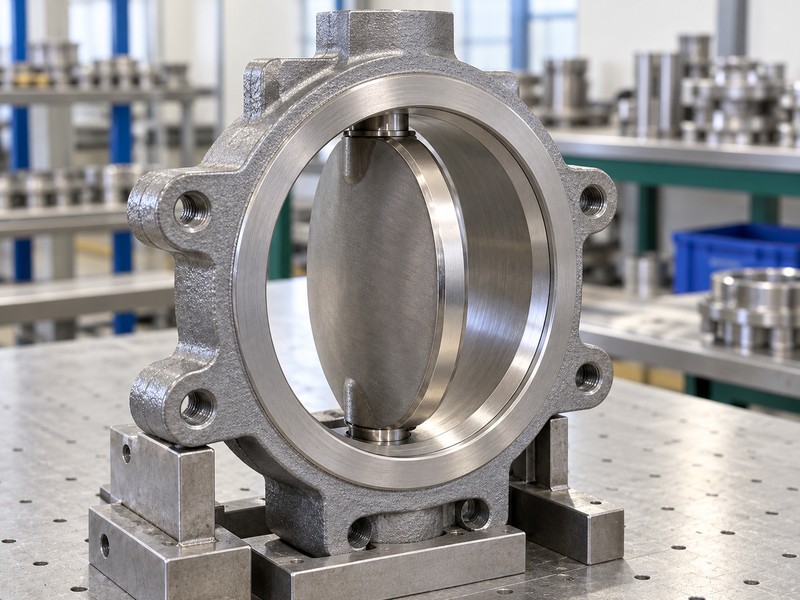

Compare shaft location, disc connection and sealing geometry. Double-offset geometry changes disc-to-seat disengagement, while triple-offset designs add angular or conical sealing geometry without a universal offset distance or cone angle. RUITO’s documented pipeline range includes concentric and double-offset configurations; a general type comparison does not establish a RUITO triple-offset product or transfer another design’s service ratings.
- Identify geometry from the selected model drawing.
- Keep a generic metal-seat image within its illustrative scope.
- Verify actual product availability and duty separately.
Key takeaway: Identify the construction from actual drawings before applying its type description to a purchase.
| Check | What you should confirm |
|---|---|
| Concentric | Centered geometry uses its selected seat arrangement |
| Offset designs | Actual shaft and sealing relationships require a drawing |
| Supply scope | Documented configuration and service remain product-specific |
9. What limits belong in “how does a butterfly valve work video”?
The represented valve’s actual material, pressure, temperature and application limits should accompany any operating explanation. Keep them identifiable when reviewing “how does a butterfly valve work video”. A general application list cannot establish that a particular valve suits your fluid, closing differential, pressure direction or continuous intermediate-position duty.
How should you connect the explanation with an enquiry?
Provide the actual fluid composition, temperature range, working pressure, closing differential and connection details. RUITO’s ordinary clean-water butterfly duty uses 5–60°C and the selected PN10/16 pressure–temperature rating, with installation and transient conditions also reviewed. Gas, chemical, drinking-water or other special service needs its own applicable configuration and evidence; it cannot inherit approval from an illustrated movement.
- Describe the complete fluid and operating conditions.
- Keep pressure-direction and control-duty limits explicit.
- Request the actual configuration and required evidence.
Key takeaway: Match the mechanism with a documented service definition before selecting equipment for an application.
| Check | What you should confirm |
|---|---|
| Service | Actual fluid, temperature and working pressure |
| Closure duty | Declared differential and pressure direction |
| Application | Accepted operating envelope and relevant qualification |
10. Can “how does a butterfly valve work video” prove acceptance?
No; a visual explanation cannot establish the actual valve’s pressure integrity, leakage result or suitability for a specified process. Keep a “how does a butterfly valve work video” review separate from product acceptance. Its useful output is a clearer mechanism question, while your order requires configuration-linked evidence under the agreed inspection conditions.
Which records establish the supplied valve’s results?

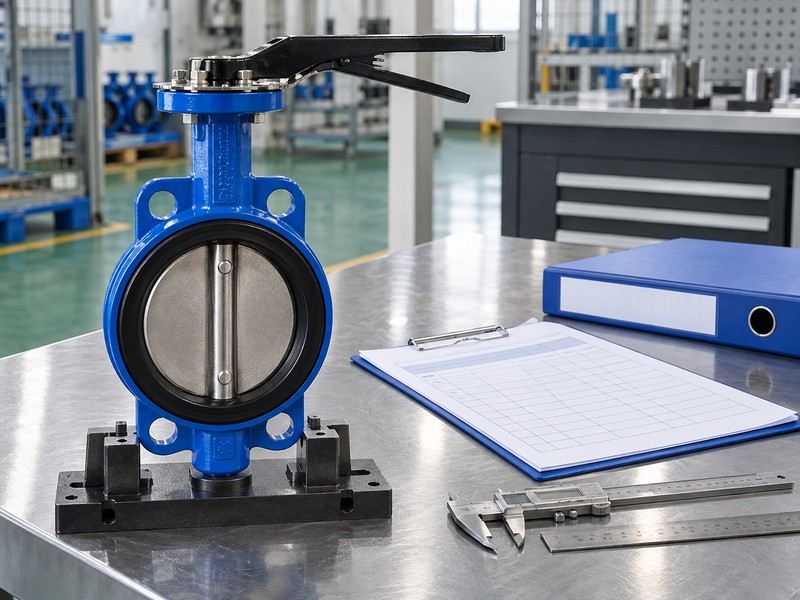

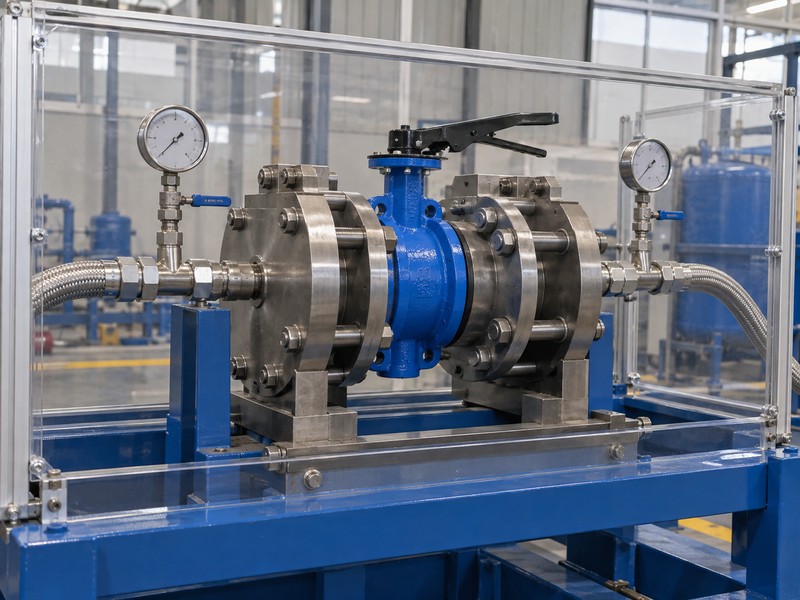

Request product identity, approved drawings, required functional observations and the separate pressure-test records. A contract-selected method such as ISO 5208 addresses its defined pressure-testing scope, without proving control accuracy or raising working-pressure limits. Actual inspection or movement requires the selected instructions and authorized isolation arrangements; an educational explanation cannot authorize work on an exposed powered mechanism.
- Link acceptance records with the actual supplied configuration.
- Separate observed motion from pressure and application evidence.
- Use authorized procedures for any physical inspection.
Key takeaway: Accept the supplied configuration against its required records, using the explanation to ask precise questions.
| Check | What you should confirm |
|---|---|
| Identity | The actual valve and accepted drawing revision |
| Inspection | Defined conditions, methods and recorded results |
| Release | Required findings and evidence support the acceptance decision |
